WDCS 960

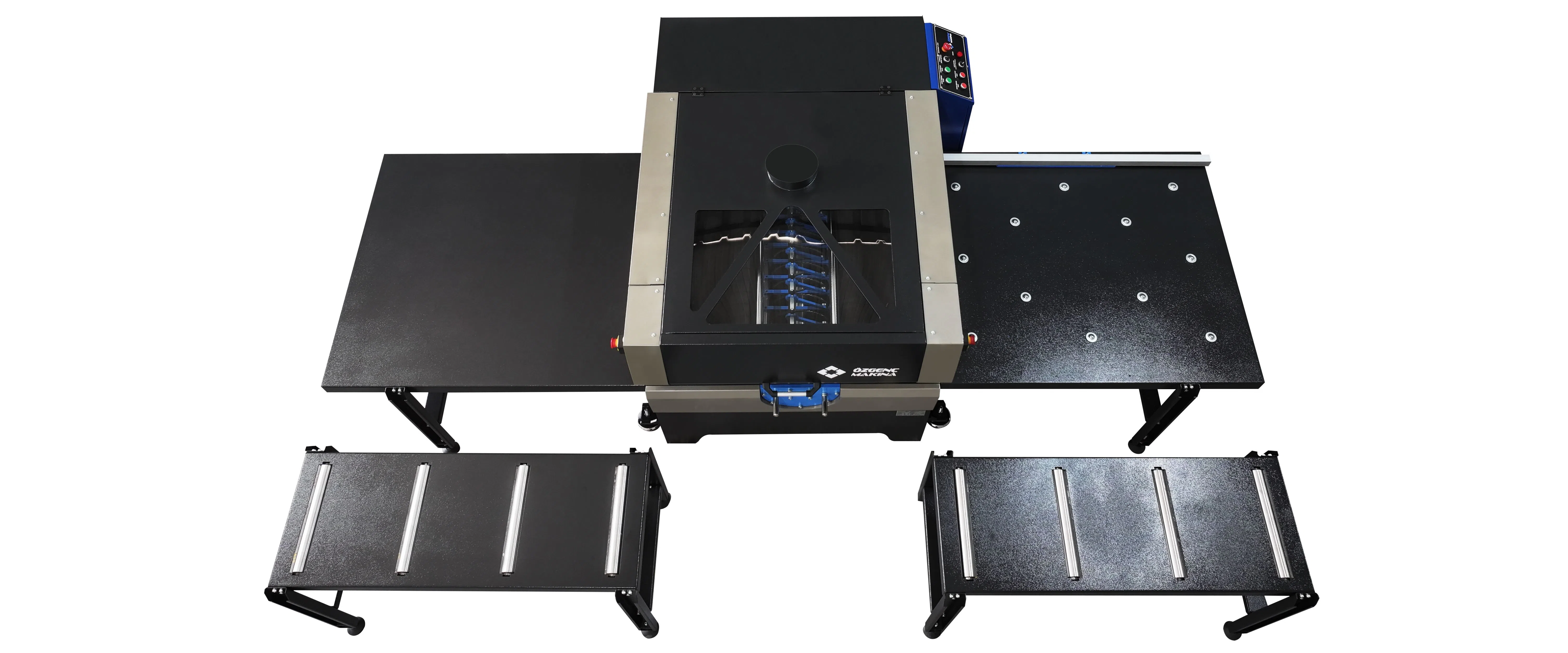

Mdf Multiple Slicing Machine

Mdf Multiple Slicing Machine

Description

- 15 mm strong sheet metal body provides virtually vibration-free cutting.
- No adjustment required as the prints are automatic
- Since the machine body is open frame, it allows mdf plates of any size to pass easily.
- It provides cutting from 4 mm to 60 mm height.
- Possibility to cut MDF plates at the same time by placing them one by one or on top of each other.
- Thanks to the desktop carrier bearings on the input table, it provides great convenience for gripping and advancing the MDF plate.
- Pressure balls made of raw rubber.
- 3 200 mm dust extractor outlets.



Diagrams

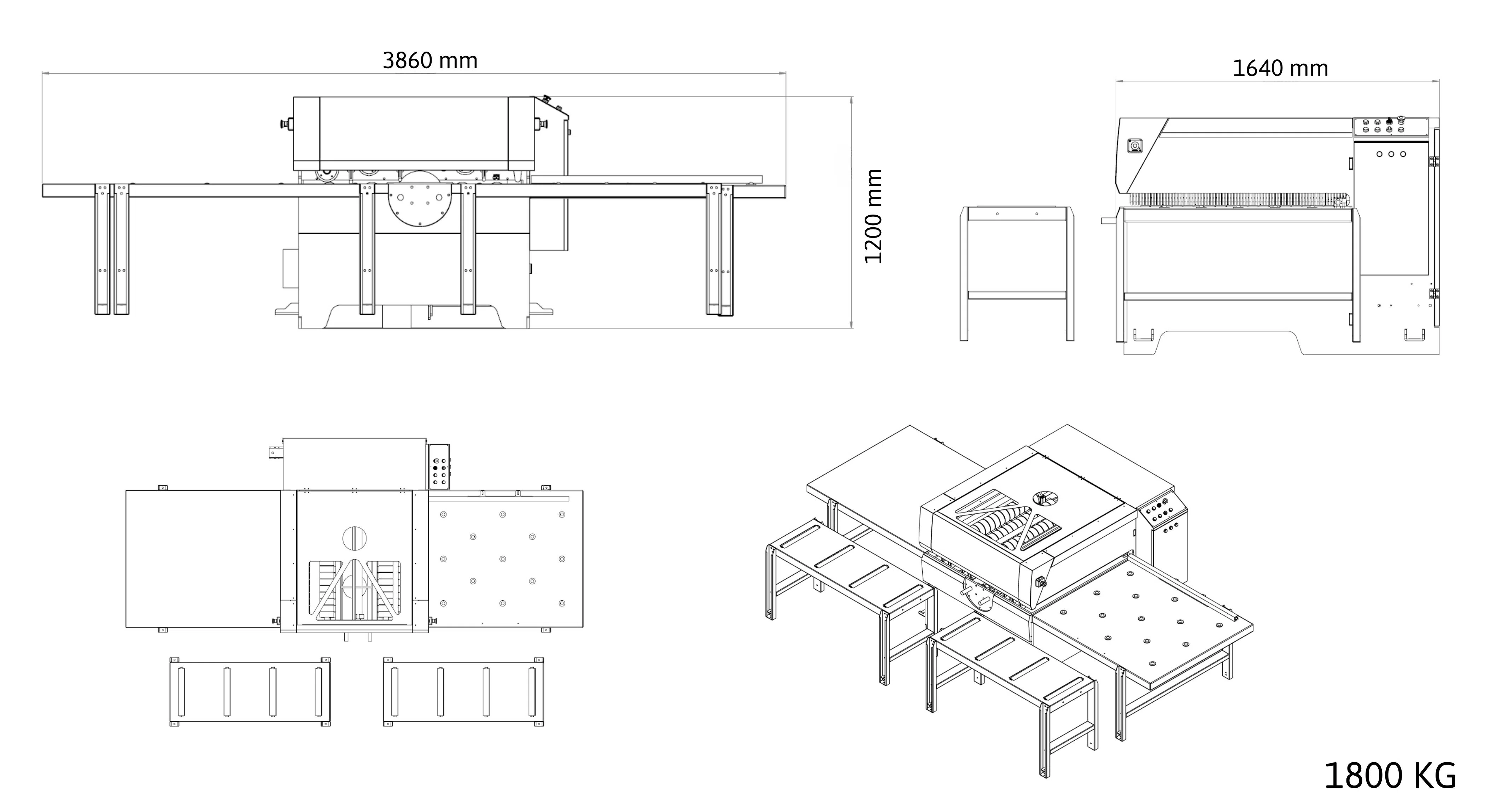

wdcs teknik

wdcs teknik

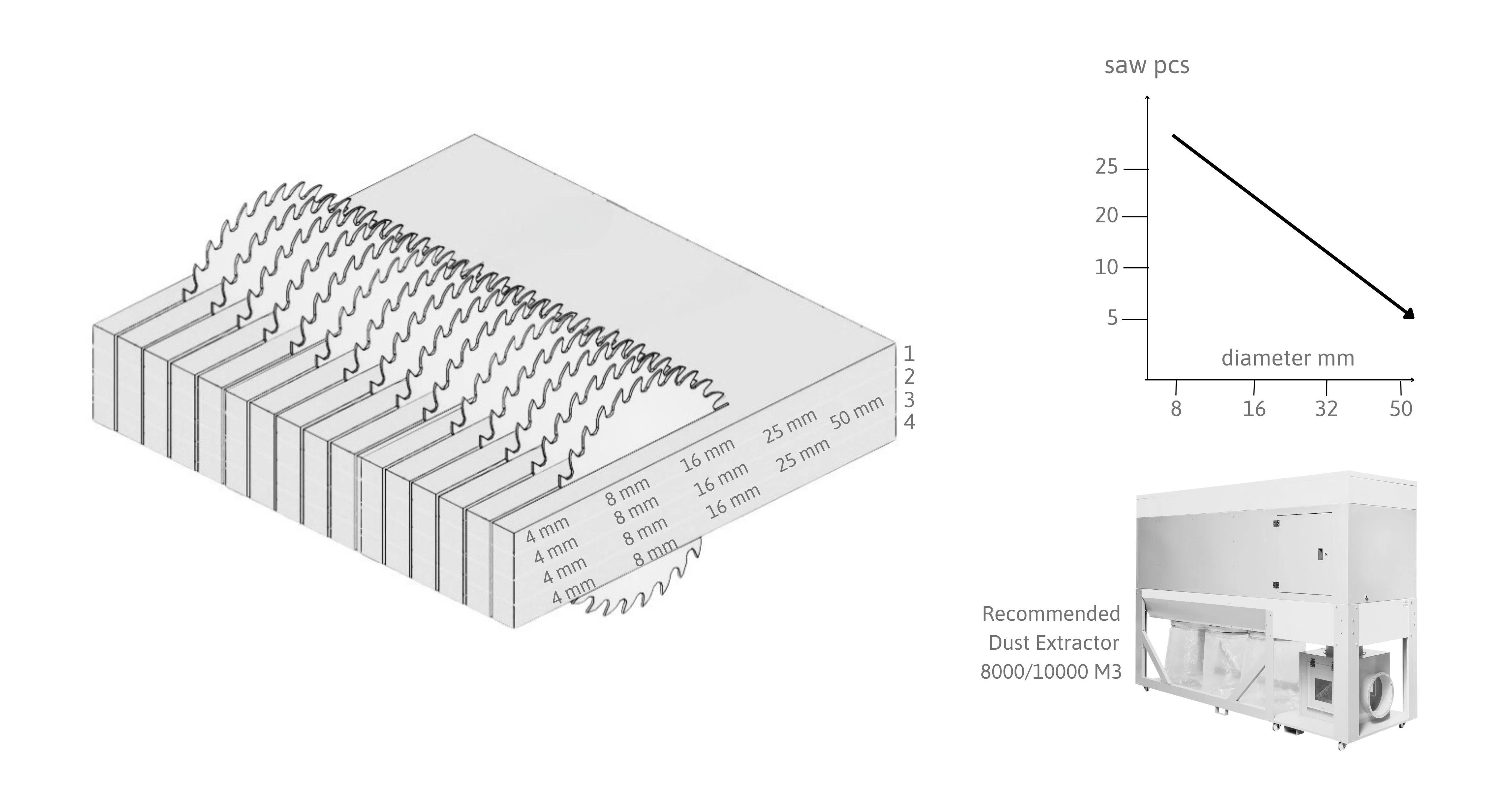

wdcs diameter

wdcs diameter

Specifications

Electrical Technical Values

Power Supply400V / 4kW

Power

Saw Motor Power22kW

Machine

Machine Weight1800 kg
Machine Height1200 mm
Machine Width1720 mm
Machine Length3900 mm

Air Consumption

Air Pressure6-8 Bar
