OMRM 125

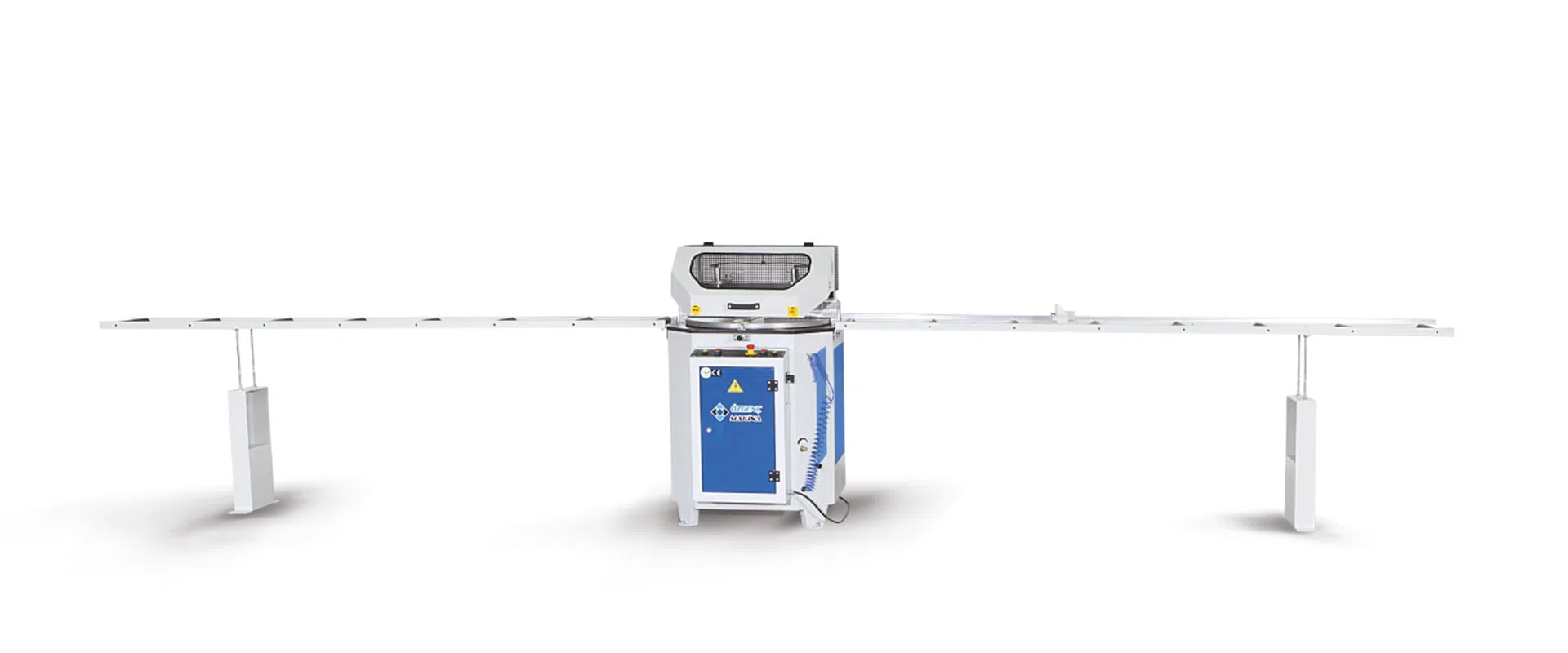

Automatic Single Head Profile Cutting Machine
Description
• Precision cutting at 0°–180° and intermediate angles
• Quick angle adjustment stops for 15°, 30°, 45°, 60°, 75°, and 90°
• Table locking lever for intermediate angles
• Specially designed table to prevent chip accumulation
• Ø450 mm diamond saw blade
• Safety cover for secure cutting operation
• Vertical pneumatic clamping cylinders
• 3-meter measuring conveyor on the right and 3-meter supporting conveyor on the left
Optional:
• Hydropneumatic and cooling system for aluminum profile cutting
Documents

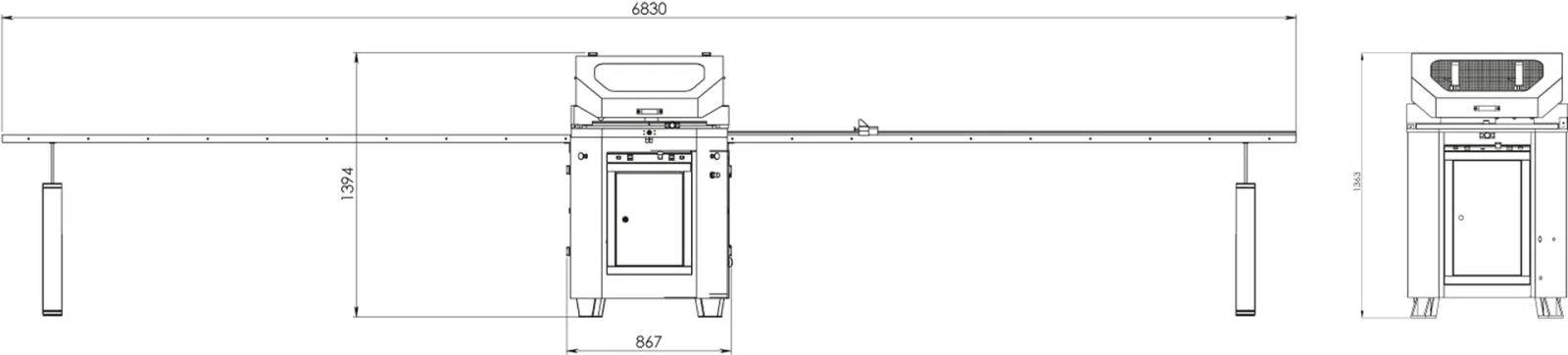

Diagrams
OMRM 125
OMRM 125
Specifications
Electrical Technical Values
| Power Supply | 400V / 3kW / 9,2A |
Power
| Saw Motor | 50Hz / 2860 rpm / 2,2kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 10 lt/cycle |
Machine
| Machine Weight | 270 kg |
| Machine Height | 1400 mm |
| Machine Width | 965 mm |
| Machine Length | 835 mm |
| Conveyor Length | 3000 mm |
| Conveyor Width | 300 mm |
Profile
| Minimum Loadable Profile Length | 440 mm |
| Maximum Loadable Profile Length | 3300 mm |
