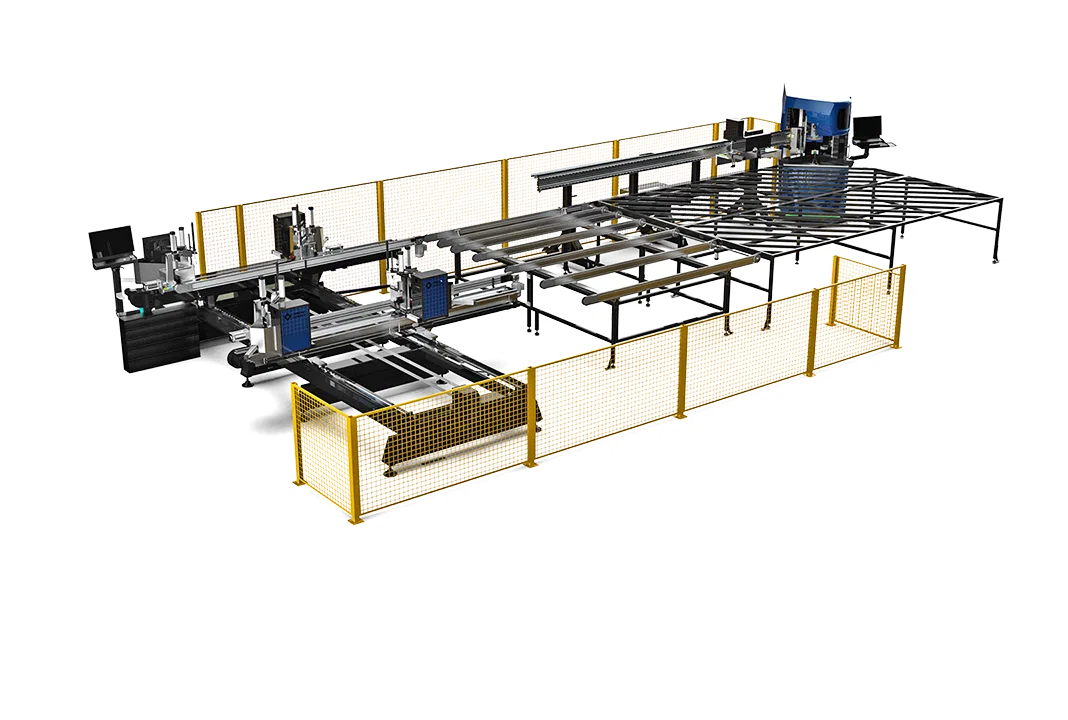

Automatic PVC Profile Welding and Cleaning Line
Description
• The Turboweld 400 system is composed of OMRM 122 (4-corner welding), CS (cooling station),
robotic arm, and OMR 119 (CNC corner cleaning) machines
• Capability to operate the machines individually
• Barcode reader
• Automatic CNC corner cleaning program loading via barcode scanning
• Unlimited memory capacity for profi le cleaning programs
• Remote connection capability for troubleshooting and service support
• Adjustable waiting time before post-welding cleaning operations
• Easy-to-use, user-friendly interface
• Manual input of measurements and CNC program selection without using the barcode
• Display showing the number of welded frames
• Multi-language support
• CE-compliant protective (cage) system
• Seamless door welding system
Optional:
• Gasket pressing system
Documents
Diagrams
TURBOWELD 400 dim2
TURBOWELD 400 dim1
Specifications
Electrical Technical Values
| Power Supply | 400V / 25 kW |
Machine
| Machine Weight | 2980 kg |
| Machine Width | 5810 mm |
| Machine Length | 12980 mm |
| Machine Height | 2275 mm |
Weldable Profile Dimensions
| Minimum Machinable Profile Height | 38 mm |
| Maximum Machinable Profile Height | 160 mm |
| Maximum Machinable Profile Width | 120 mm |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 90 L/min |
Video
