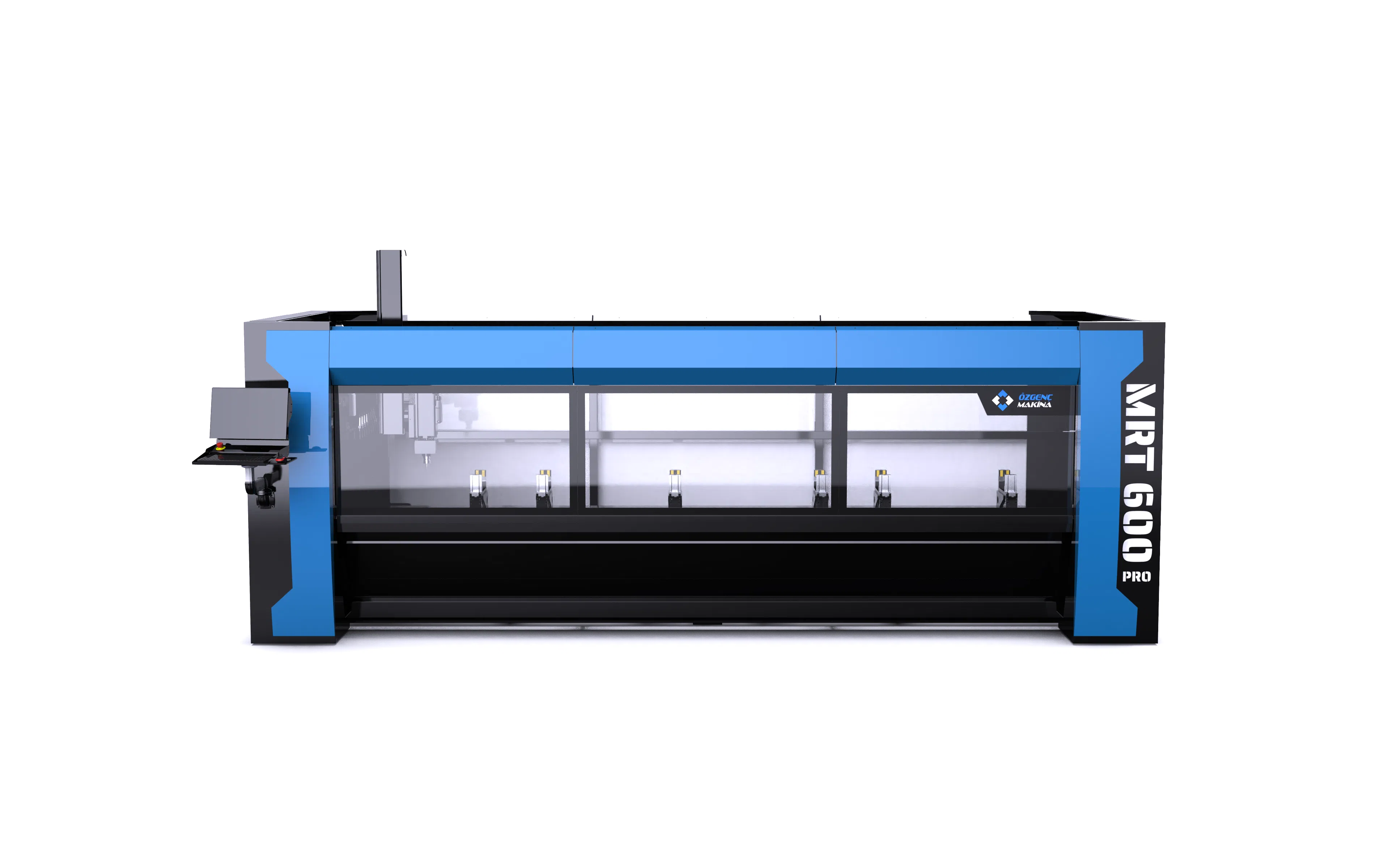

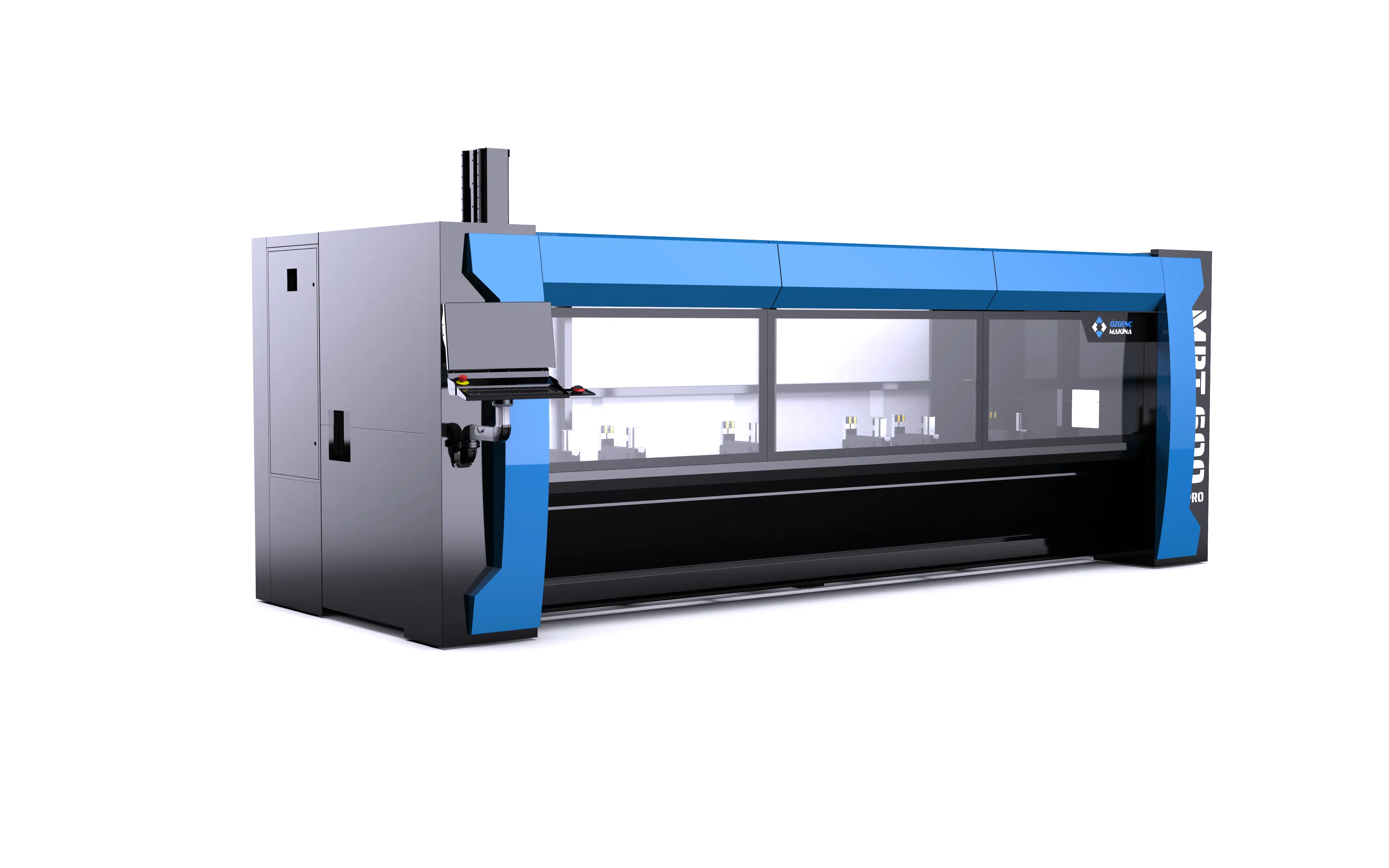

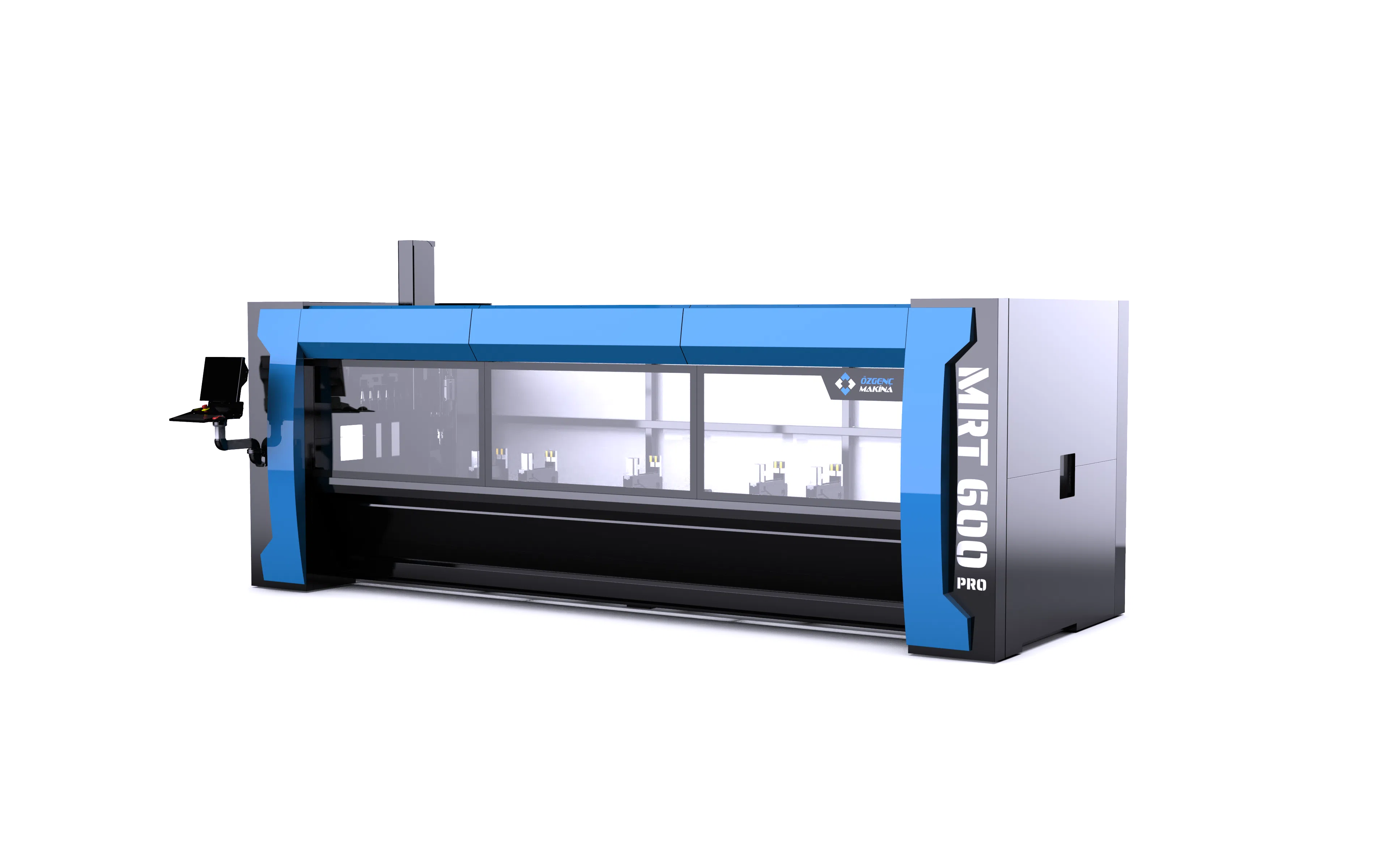

Aluminum Profile Machining Center (4-Axis)

• CNC machining center with compact design capable of movement along X-Y-Z-A axes
• Spindle operating on the angular axis
• Interpolated movement capability on all axes (simultaneous operation)
• Pneumatic automatic reference point system
• 6 clamps and a 4+1 tool holder magazine (standard model)
• Automatic movable clamps
• HSD brand 7.5 kW, 24,000 rpm spindle
• ISO 30 tool holder
• Wireless handwheel control
• FAGOR 8058-M control unit with EtherCAT communication system
• User-friendly interface
• Compatible with CAD-CAM software
• Remote connection capability for troubleshooting and service support
• SMC pneumatic components (integrated with EtherCAT communication system)
• Absolute servo system (axes can resume operation from their previous position after a power outage)
• Rack and pinion drive system on X-Y-Z axes
• A-axis equipped with Sumitomo CYCLO gearbox, providing 1 arcmin precision
• Automatic lubrication system
• Special cooling system
• Automatic clamp scanning system
• Manual and automatic clamp positioning
Optional:
• Barcode reader
