SC 200

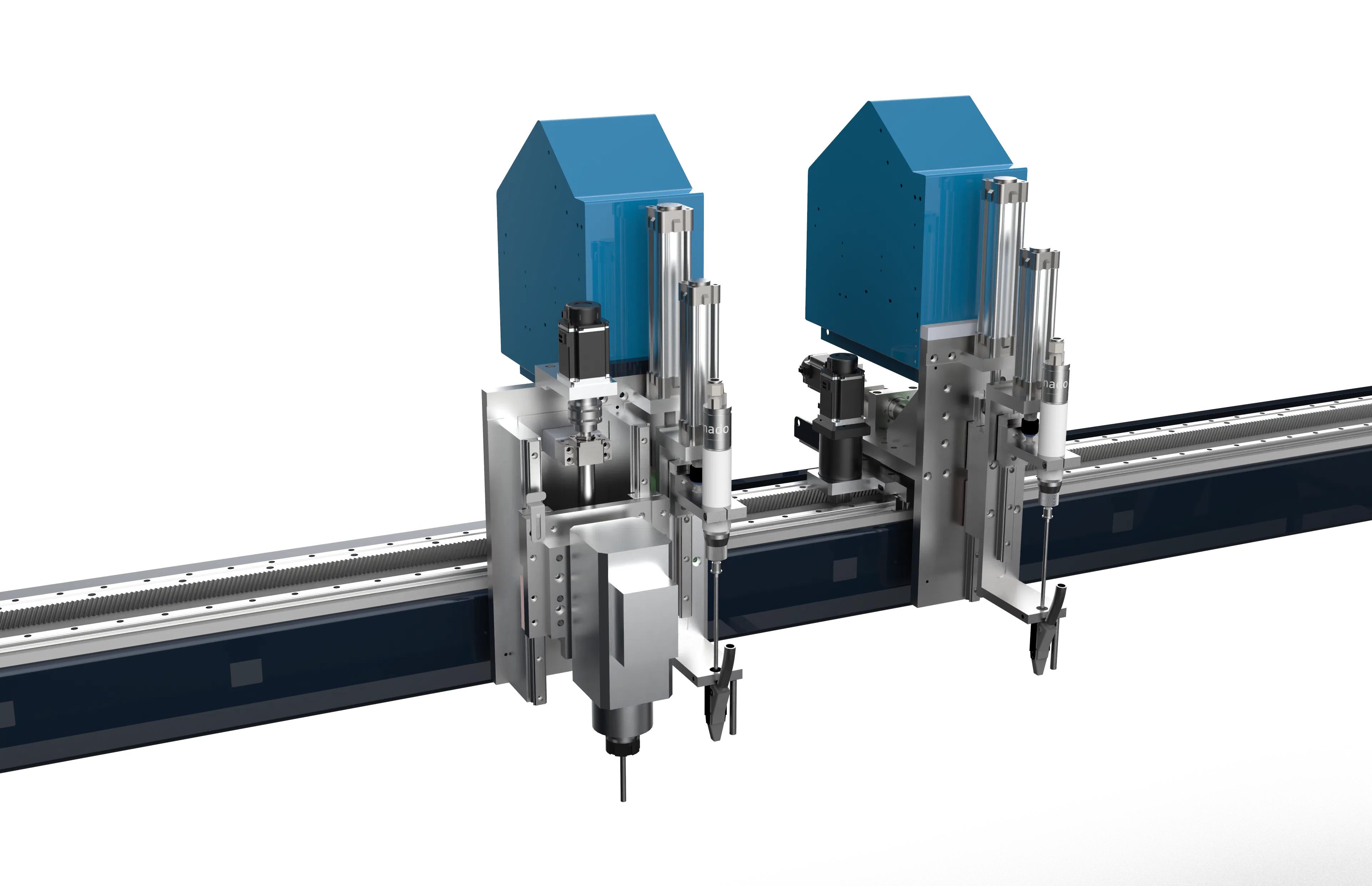

CNC Dual-Head Screwing and Drilling Center
Description
• Compatible with Turbocut 500 and Turbocut 400 machining centers
• Automatic screw positioning adjustment for each profile type
• High speed and precision in every screwing operation thanks to servo motors
• Automatic centering of screw positions for diff erent profile widths via servo
motor control
• Automatic screw anti-jamming system
• Minimum–maximum profile length: 300 mm – 4300 mm
• Programmable for screwing at desired intervals and quantities
• Capacity to load 6 profiles
• Barcode reader
Optional:
• Frame assembly drilling unit (SC 200 1M)
Documents
Diagrams
SC 200
SC 200
Specifications
Electrical Technical Values
| Power Supply | 400V / 5kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 50 L/cycle |
Machine
| Machine Weight | 500 kg |
| Machine Height | 2030 mm |
| Machine Width | 3430 mm |
| Machine Length | 5510 mm |
Profile
| Maximum Machinable Profile Width | 120 mm |
| Minimum Machinable Profile Width | 40 mm |
| Maximum Sheet Thickness | 3 mm |
| Min. Screwing Range | 300 mm |
| Max. Screwing Range | 4300 mm |
