OMRM 115

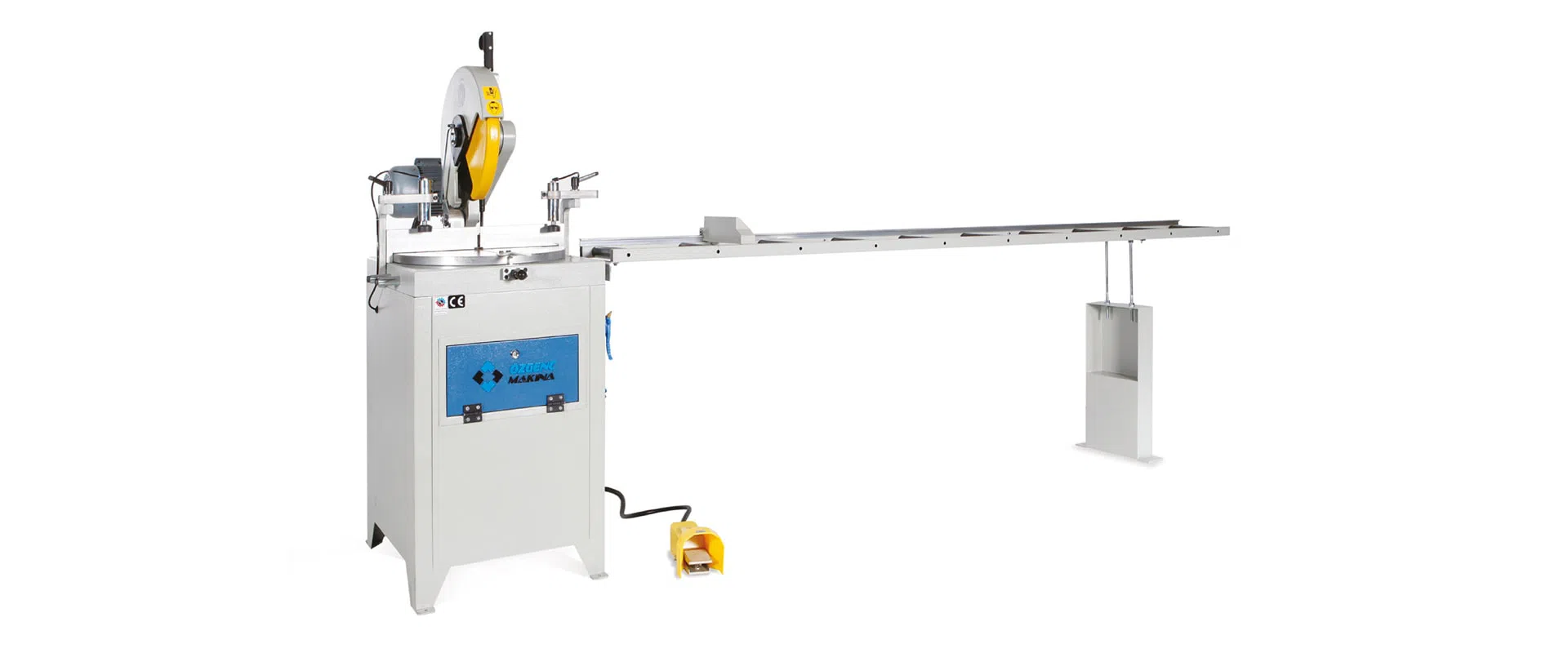

Manual Single Head Cutting Machine
Description
• Cutting at +45° / -45° and intermediate angles
• Quick angle adjustment stops for 0°, 15°, 22.5°, 30°, and 45°
• Table locking lever for intermediate angles
• Specially designed table to prevent chip accumulation
• Ø400 mm diamond saw blade
• Maximum cutting capacity at 90°: 180 mm x 100 mm
• Maximum cutting capacity at 45°: 135 mm x 100 mm
• Vertical pneumatic clamping cylinders
• Convenient profile clamping via foot pedal
• 3-meter measuring conveyor on the right and 3-meter supporting conveyor on the left
Optional:
• Cooling system for aluminum profile cutting
Documents

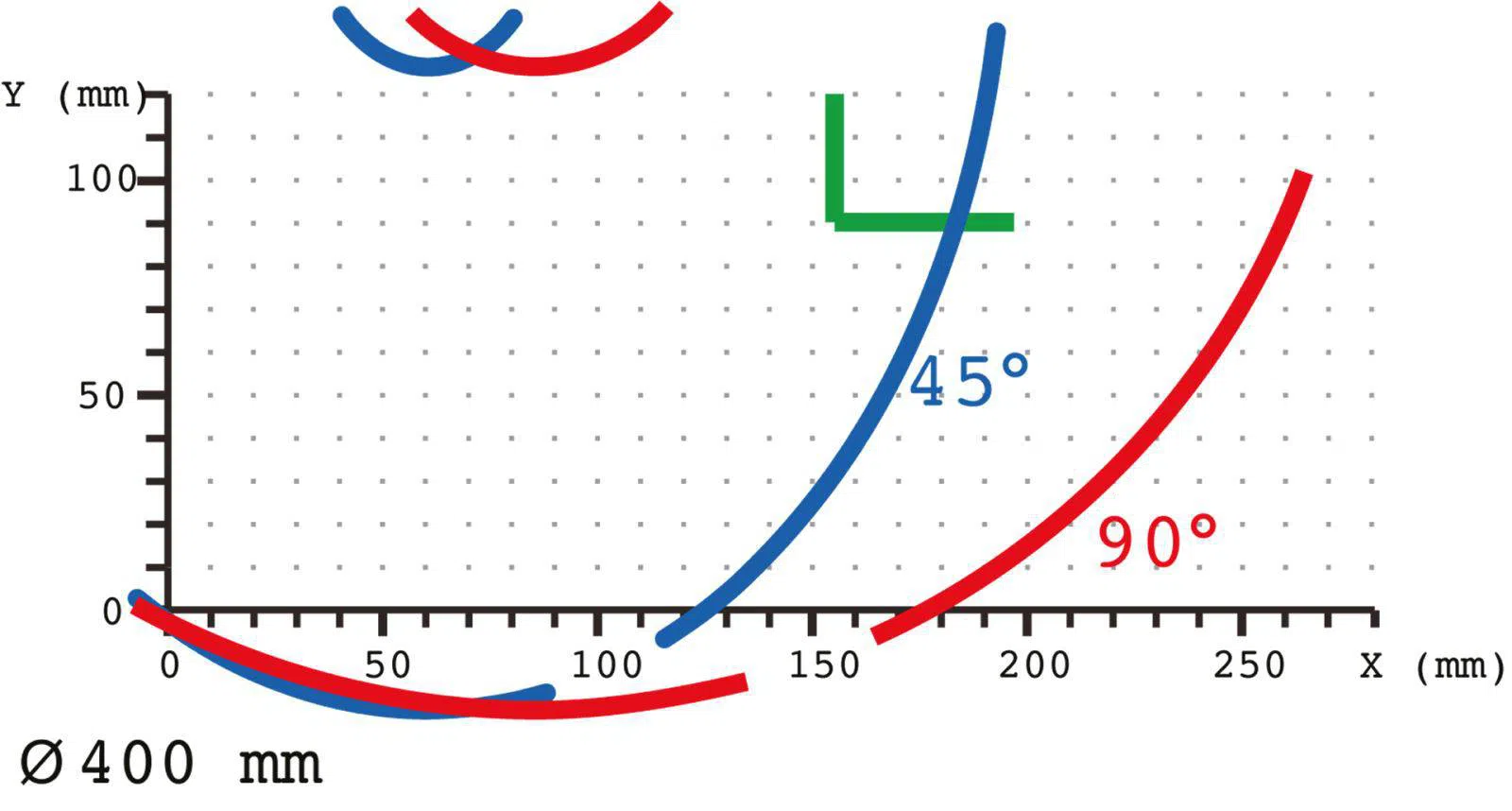

Diagrams
OMRM 115
OMRM 115
Specifications
Electrical Technical Values
| Power Supply | 400V / 1,1kW / 2,3A |
Power
| Saw Motor | 50Hz / 2900 rpm / 1,5kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 2 lt/cycle |
Machine
| Machine Weight | 173 kg |
| Machine Height | 1635 mm |
| Machine Width | 930 mm |
| Machine Length | 710 mm |
| Conveyor Length | 3000 mm |
| Conveyor Width | 300 mm |
Profile
| Minimum Loadable Profile Length | 360 mm |
| Maximum Loadable Profile Length | 3300 mm |
