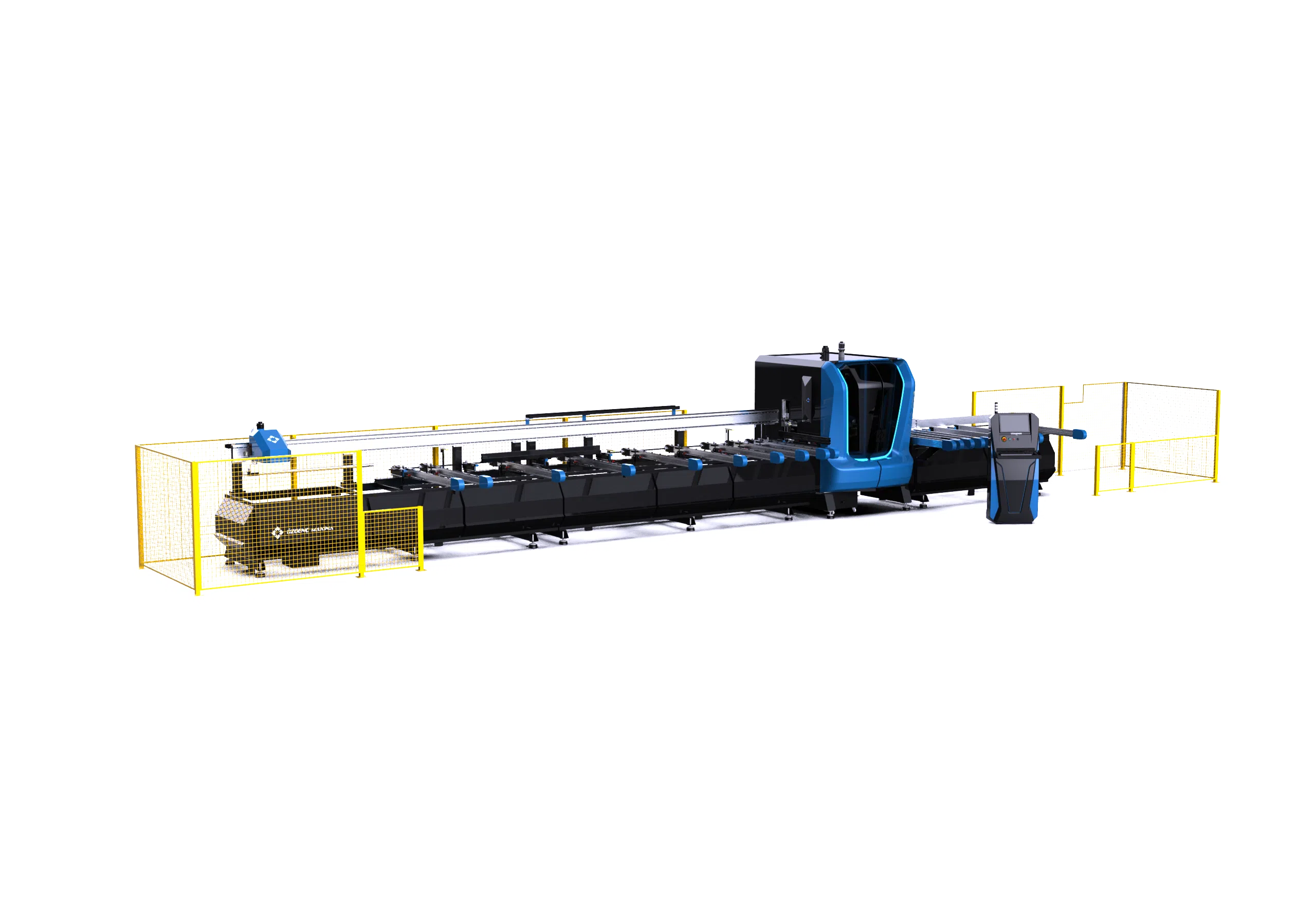

PVC Profile Machining and Cutting Center

• Compatible with all window fabrication and optimization software
• 3-axis servo motor-controlled machining unit that allows all operations such as
slotting, drilling, marking, lock (barrel), and handle milling on all four surfaces
of the profile according to desired parameters
• Ability to machine the lock (barrel) slot in a single operation
• Ability to machine the handle slot in a single operation
• 3-axis gripping arm
• Automatic profile gripping feature
• Automatic profile length detection allowing the gripping arm to catch the profile
without time loss
• Profile loading capacity ranging from 500 mm to 6500 mm
• Remote connection capability for troubleshooting and service support
• Windows-based control system with a 21.5” display
• 9 high-speed spindles
• One Ø550 mm saw blade
• Cutting capability at angles between 35° and 145° with servo axis control
• Compatible operation with SC 200 screwing center
