WD 450

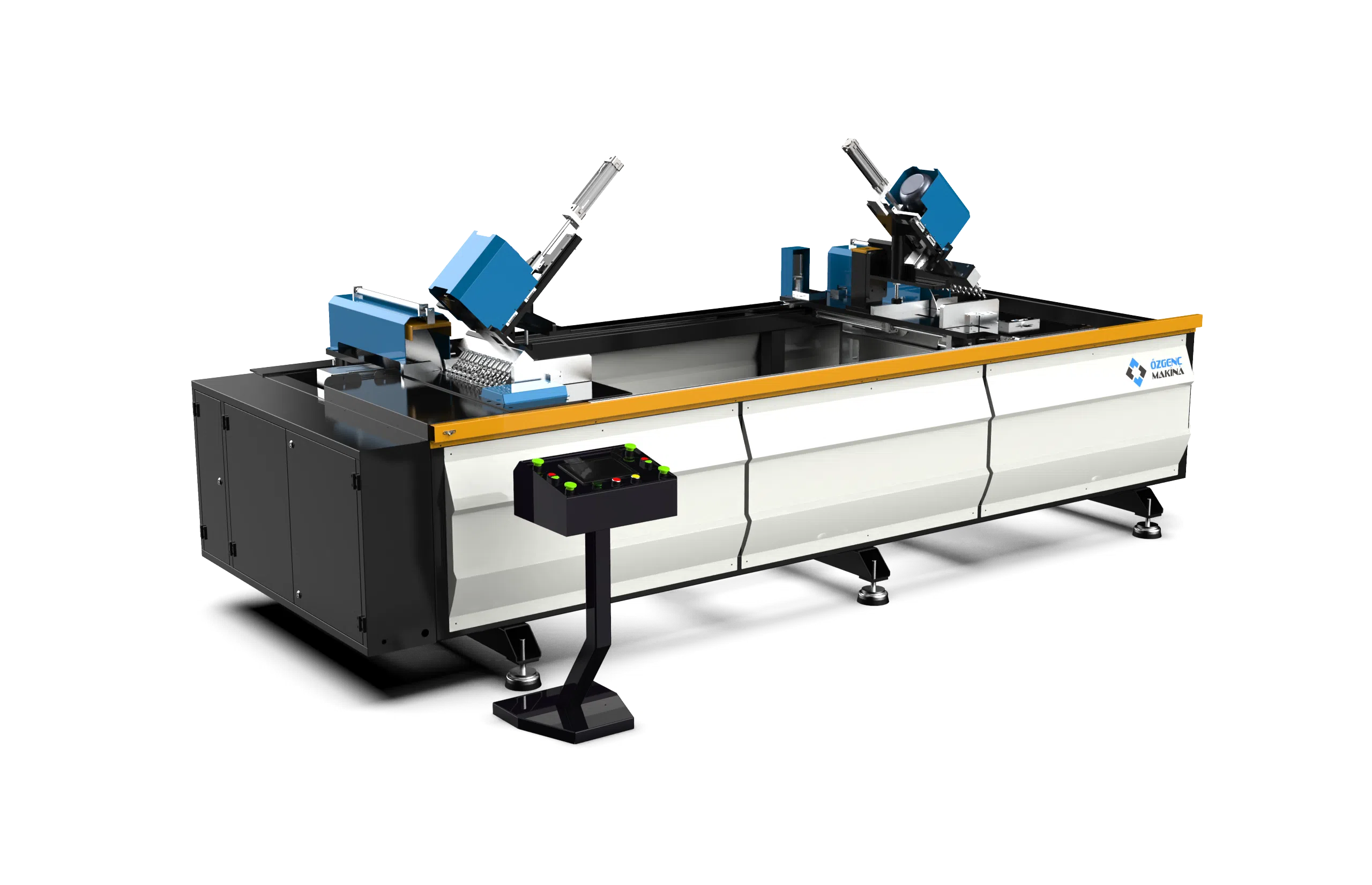

Double Miter 45°/90° Twin Saw & 12 Pin Hole Drilling Unit
Description
- There are 4 motors in total for 2 hole drilling and 2 cutting.
It can easily cut frame profiles up to 200 mm in width.
It completes all operations of the door frame in 60 seconds.
Drilling unit consisting of 12 tools
Automatic printing system
Both cutter heads tilts to 45 and 90 degrees automatically.
Optional: Automatic length sizing
Documents

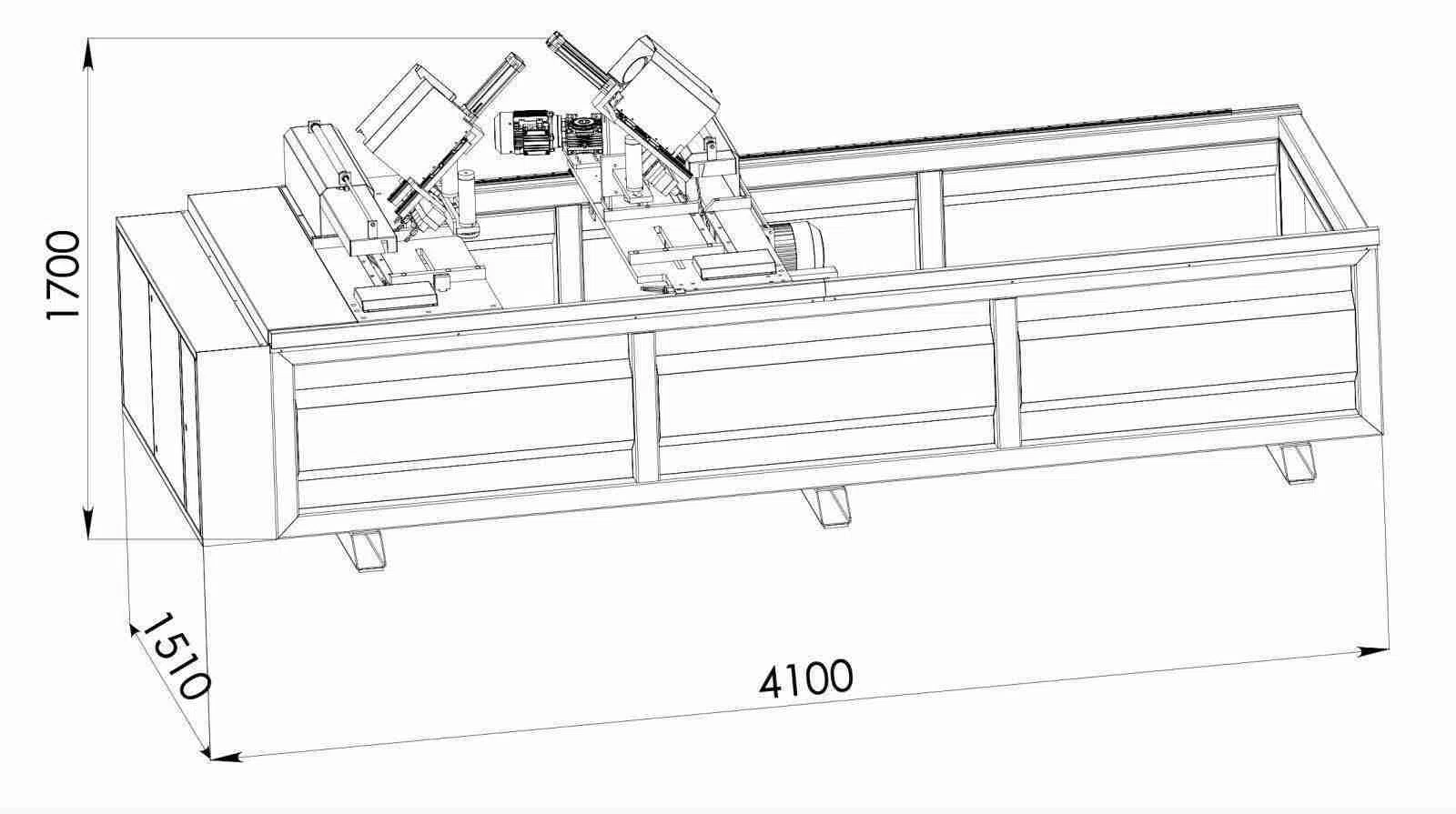

Diagrams
WD 450
WD 450
Specifications
Air Consumption
| Cutting Motor Rev | 3000 rpm |
| Cutting Sawblade Motor Rev | 4000 RPM |
| Drilling Motor Power | 0.75 kW |
| Air Pressure | 6 Bars |
| Cutting Motor Power | - |
| Cutting Tool Quantity | - |
Machine
| Machine Length | 4100 mm |
| Machine Height | - |
| Width | 1510 mm |
| Weight | 1200 kg |
null
| Max. Cutting Lenght | 225x95 mm / 240x110 mm |
| Max. Cutting Lenght | 285x75 mm / 310x100 mm |
| Max. Cutting Lenght | 395x50 mm / 420x50 mm |
