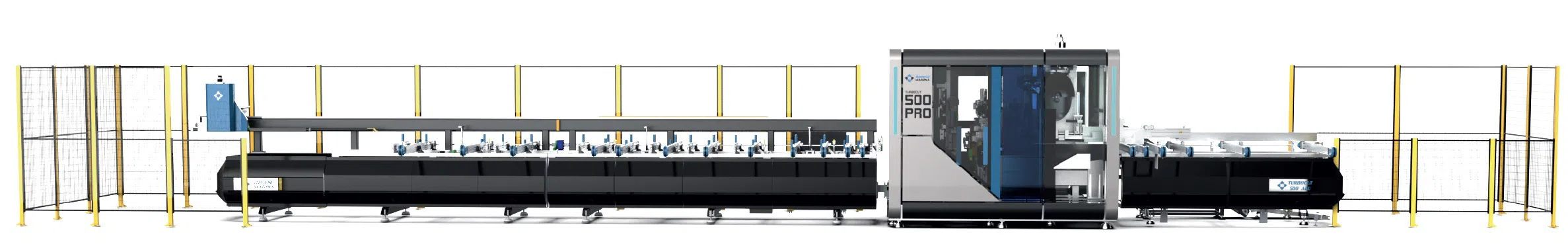

PVC Profile Machining and Cutting Center

• Compatible with all window fabrication and optimization software
• Two 3-axis servo motor-controlled machining units that enable all operations
such as slotting, drilling, marking, lock (barrel) and handle milling on all four
surfaces of the profile according to desired parameters
• Ability to machine the lock (barrel) slot in a single operation
• Ability to machine the handle slot in a single operation
• 3-axis gripping arm
• Automatic profile gripping feature
• Automatic profile length detection allowing the gripping arm to catch the profile
without time loss
• Profile loading capacity ranging from 700 mm to 6500 mm
• Remote connection capability for troubleshooting and service support
• Windows-based control system with a 21.5” display
• 18 high-speed spindles
• 1 saw with a diameter of Ø600 mm
• Upper saw (Ø600 mm) capable of cutting at angles between 30° and 150° with
servo axis control
• Compatible operation with SC 200 screwing center
