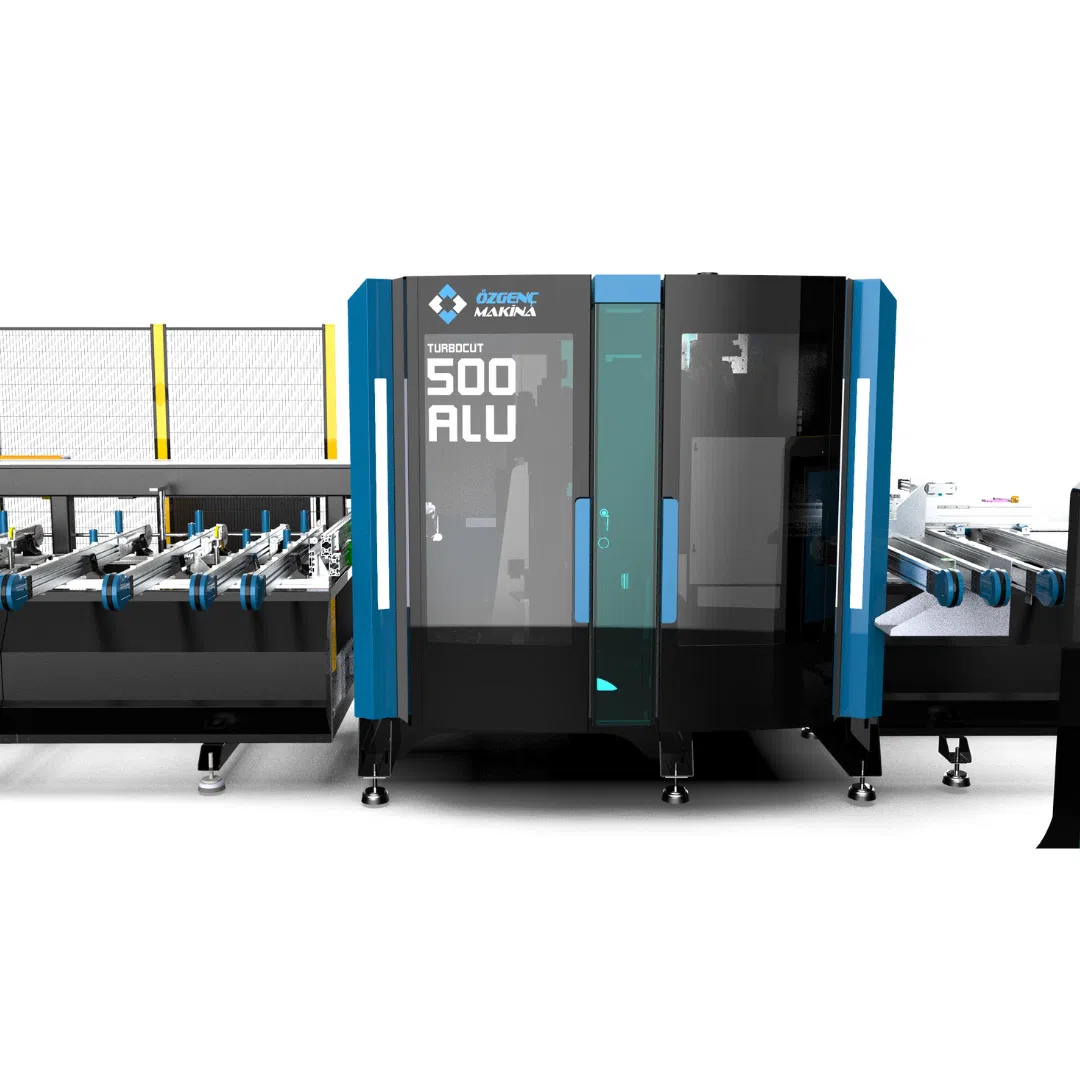

Aluminum Profile Machining and Cutting Center

• Compatible with all window fabrication and optimization software
• 3-axis servo motor-controlled machining unit that enables all operations—such as
slotting, drilling, marking, lock and handle milling—on all four surfaces of the
profile according to desired parameters
• Ability to machine the lock (barrel) slot in a single operation (depending on the
number of profile chambers, operations are performed progressively)
• Ability to machine the handle slot in a single operation (depending on the number
of profile chambers, operations are performed progressively)
• 4-axis gripping arm
• Automatic profile gripping feature
• Automatic profile length detection allowing the gripping arm to catch the profile
without time loss
• Profile loading capacity ranging from 700 mm to 7000 mm
• Remote connection capability for troubleshooting and service support
• Windows-based control system with a 21.5” display
• 11 high-speed spindles, 3 corner milling units with angular machining capability (30° and 45°)
• One Ø600 mm saw blade
• Servo axis control for cutting angles between 45° - 145°
