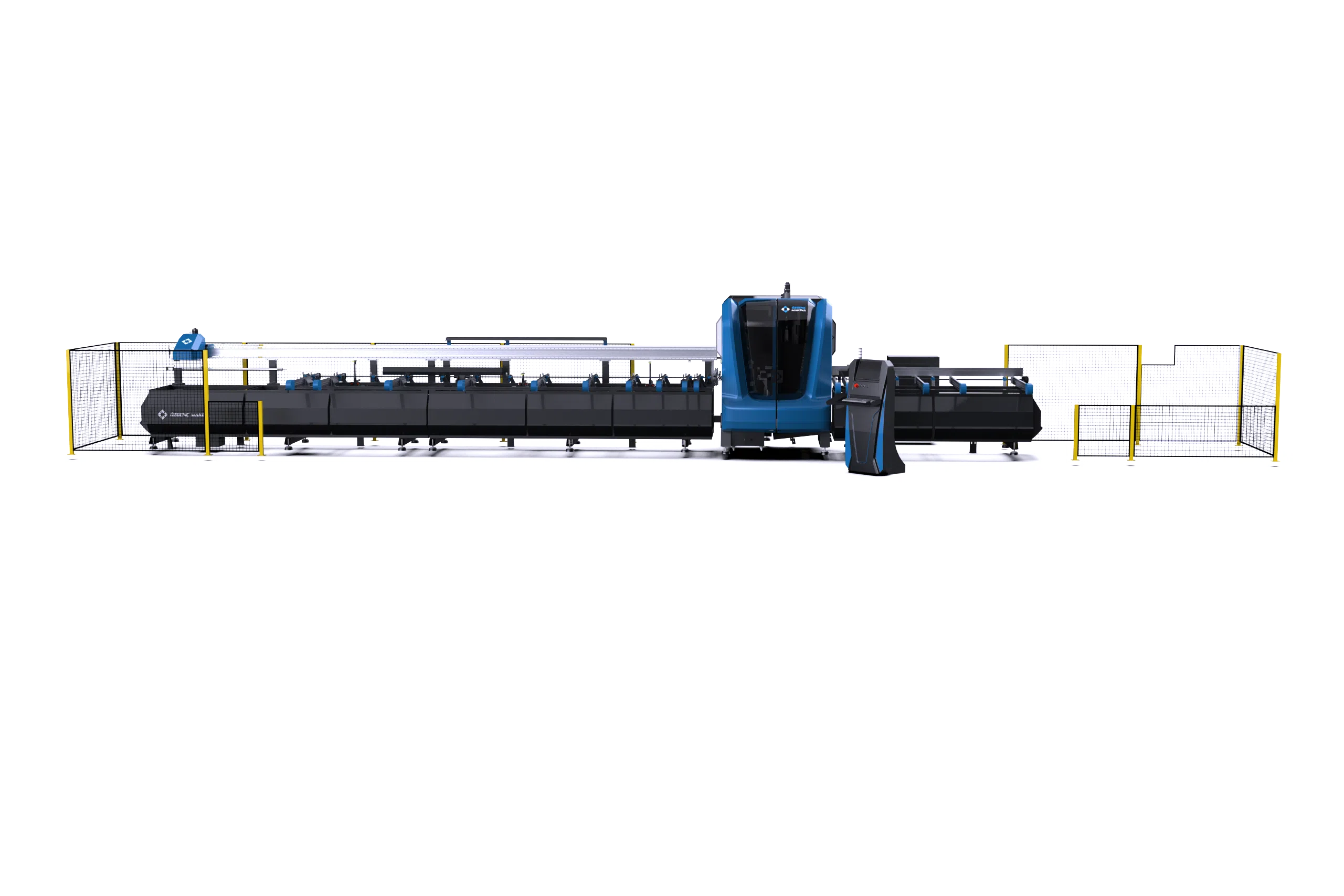

PVC Profile Processing and Cutting Center

• Compatible with all joinery and optimization programs
• 3-axis servo motor-controlled processing unit enabling all operations such as slotting, drilling, marking, barrel and handle positions on all four surfaces of the profile, in accordance with the required parameters
• Ability to machine the barrel housing in a single operation
• Ability to machine the handle position in a single operation
• 3-axis gripping arm
• Automatic profile gripping feature
• Ability to grip the profile without losing time on the gripping arm thanks to automatic profile length detection
• Profile loading capability between 700 mm and 6500 mm
• Remote connection for fault diagnosis and service capability
• Windows-based control system with 21.5” screen
• 9 high-speed spindles
• 3 saws, Ø550 mm
• Cutting with servo axis control at angles between 45° - 135° and 90°
• Capability to operate together with the SC 200 screw-driving center
