TM 4

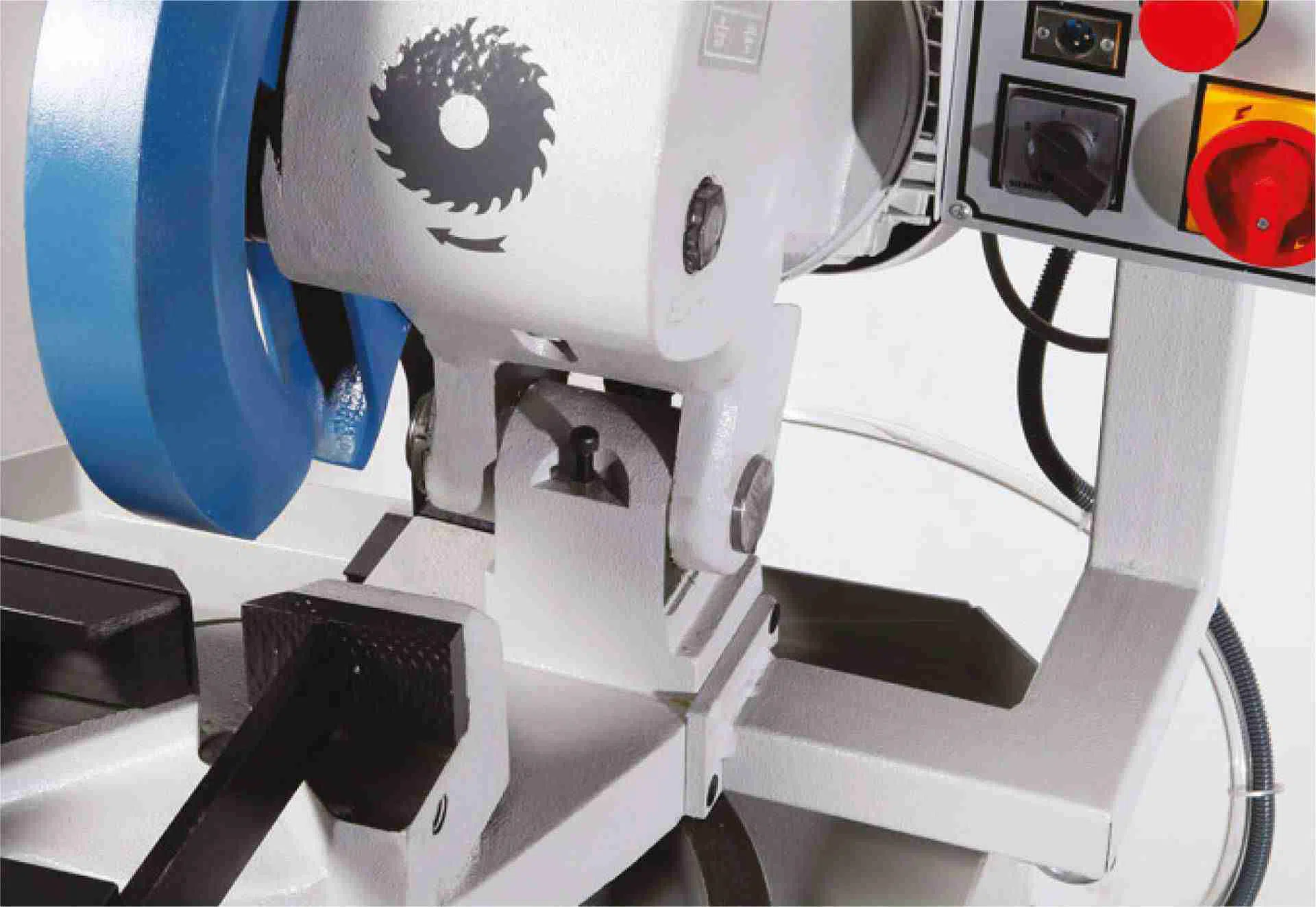

Reinforcement Steel Profile Cutting Machine
Description
Designed for cutting the reinforced steel profiles.
• Ability to choose between 2 cycles (rpm) for cutting different materials
• Motor protection circuit for the motor and liquid pump
• Cooling fluid circulation system
• Moving saw protection cover
• Able to cut 45° towards both directions
Documents

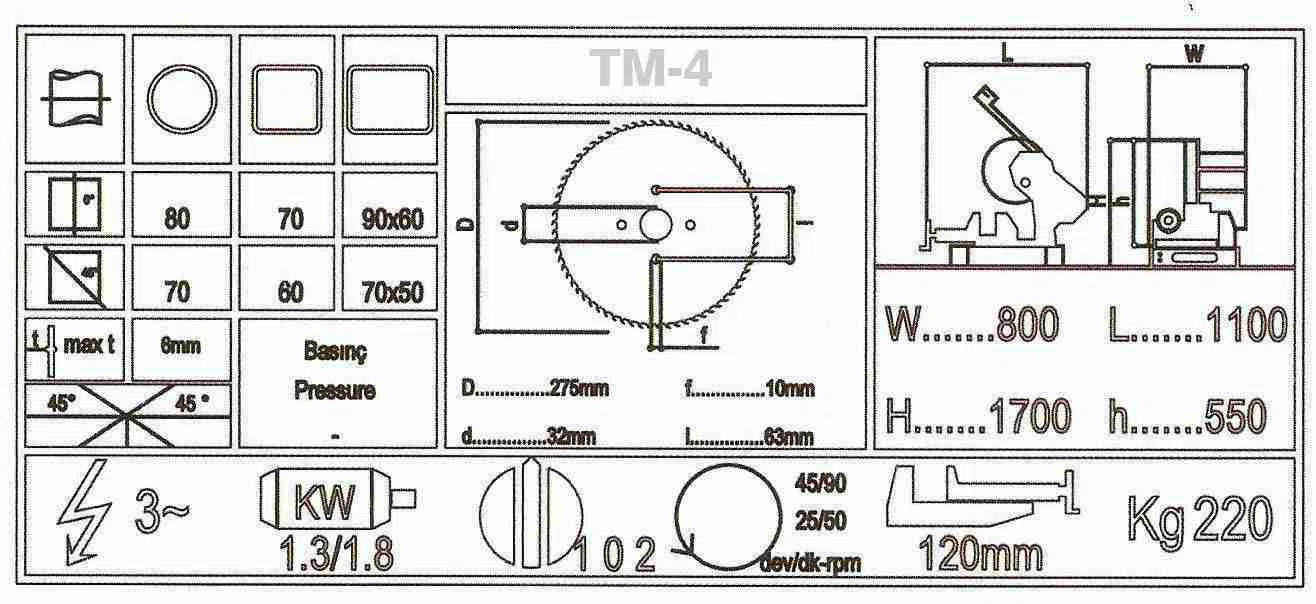

Diagrams
TM 4
Specifications
Electrical Technical Values
| Power Supply | 400V / 3kW / 2,4A |
Power
| Saw Motor | 50Hz / 45-90 rpm / 1,8kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 2,2 L/cycle |
Machine
| Machine Weight | 220 kg |
| Machine Height | 1700 mm |
| Machine Width | 800 mm |
| Machine Length | 1100 mm |
Support Sheet
| Maximum Support Sheet Cutting Thickness | 6 mm |
