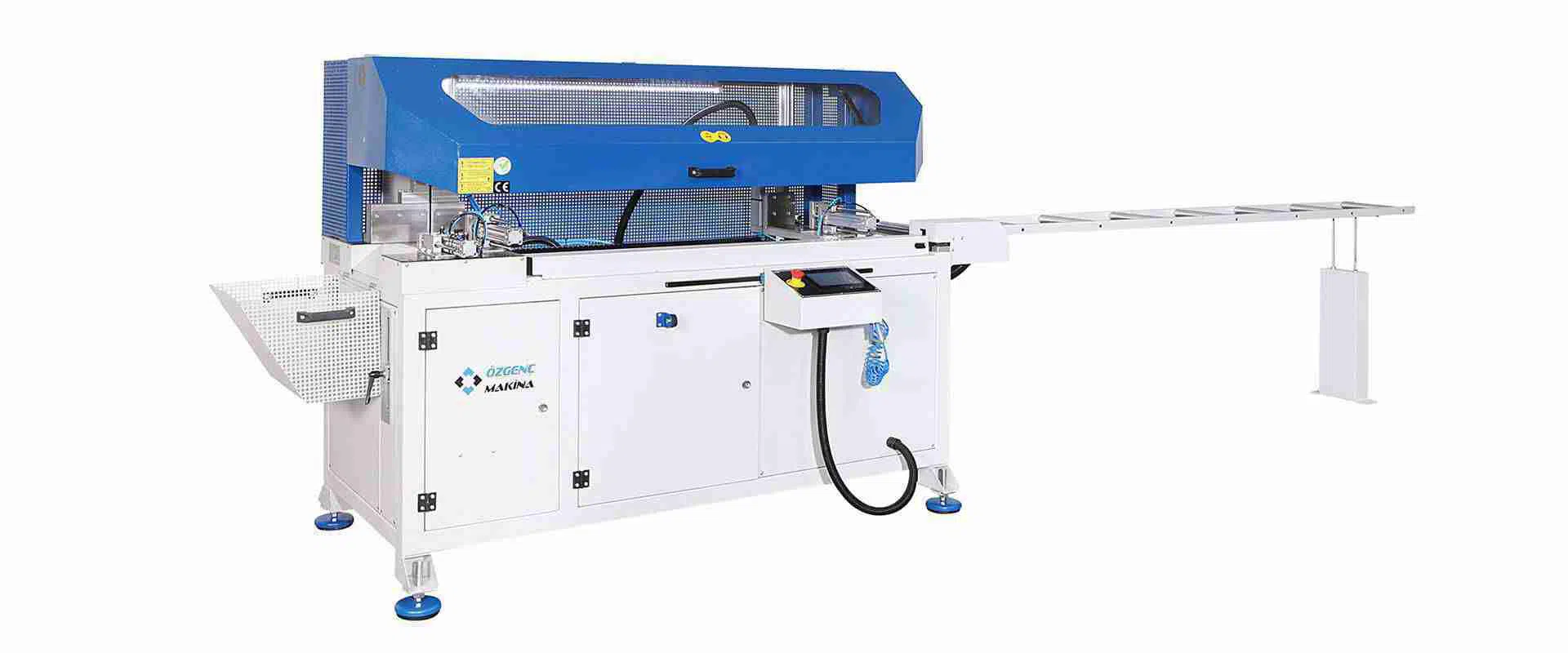

Automatic Profile Cutting Machine
Description
Automatic Repetitive cutting machine with extreme accuracy and speed with servo motor motion system for profiles and other mass production profile cutting operations.
• 90° cutting angle
• Display “touch screen”
• PLC control system
• Automatic profile slicing feature
• Fast positioning and size precision with servo control motion system
• 3 x horizontal and 3 x vertical clamping (pneumatic)
• 3,0 m support right side conveyor with rollers
• Ø500 mm saw
• Possibility to create cutting list
• Protection cover system with safety switch
• Cutting length min./max.: 4 mm/∞
• Automatic feeding system
• Saw output height is adjustable
• Hydro-pneumatic cylinder and cooling systems
Documents

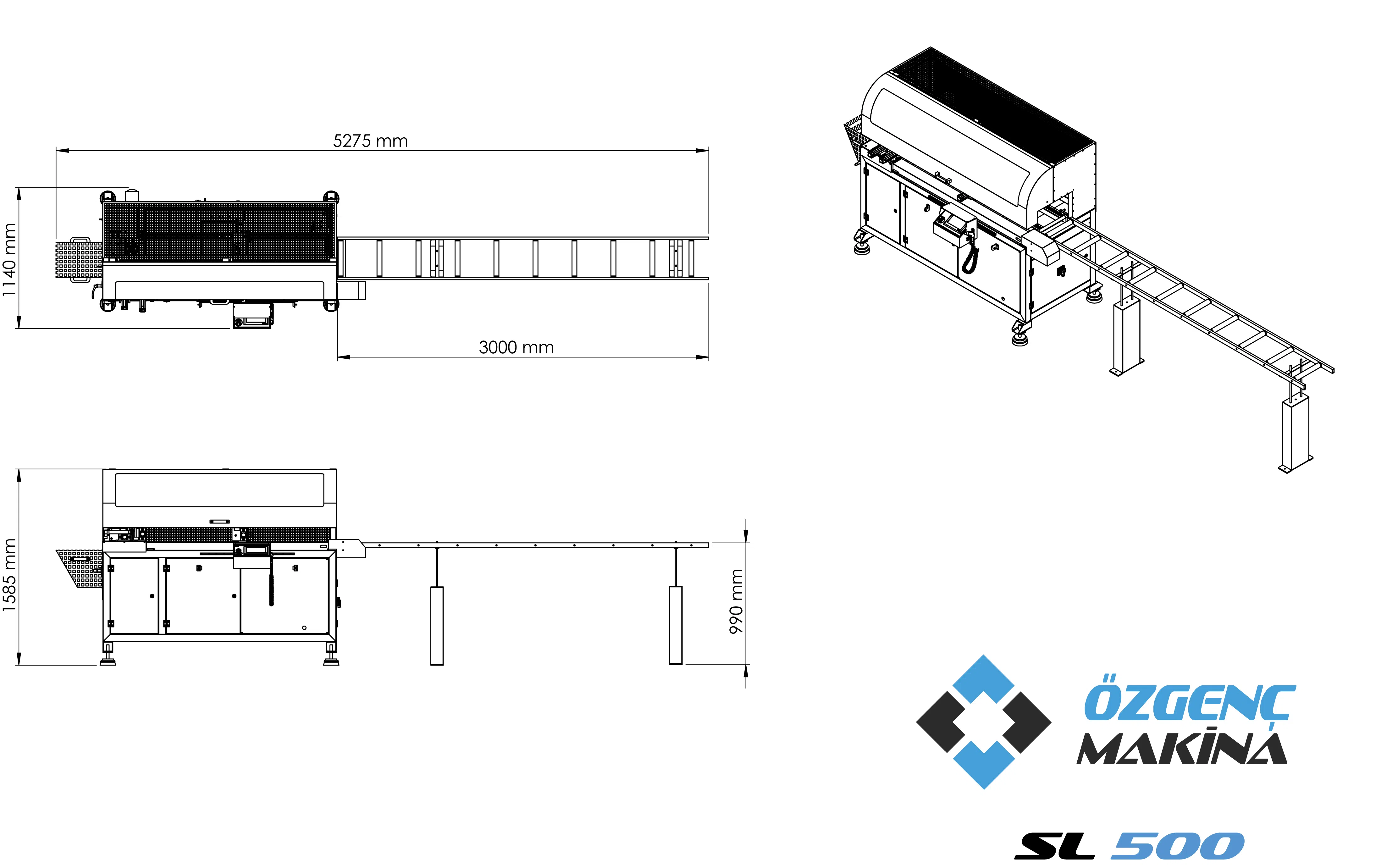

Diagrams
SL 500
SL 500
Specifications
Machine
| Machine Width | 1125 mm |
| Machine Weight | 665 kg |
| Machine Height | 1585 mm |
| Machine Length | 5275 mm |
Electrical Technical Values
| Power Supply | 400V / 6kW / 32A |
Power
| Saw Motor | 50Hz / 3000 rpm / 5,5kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 10 L/cycle |
