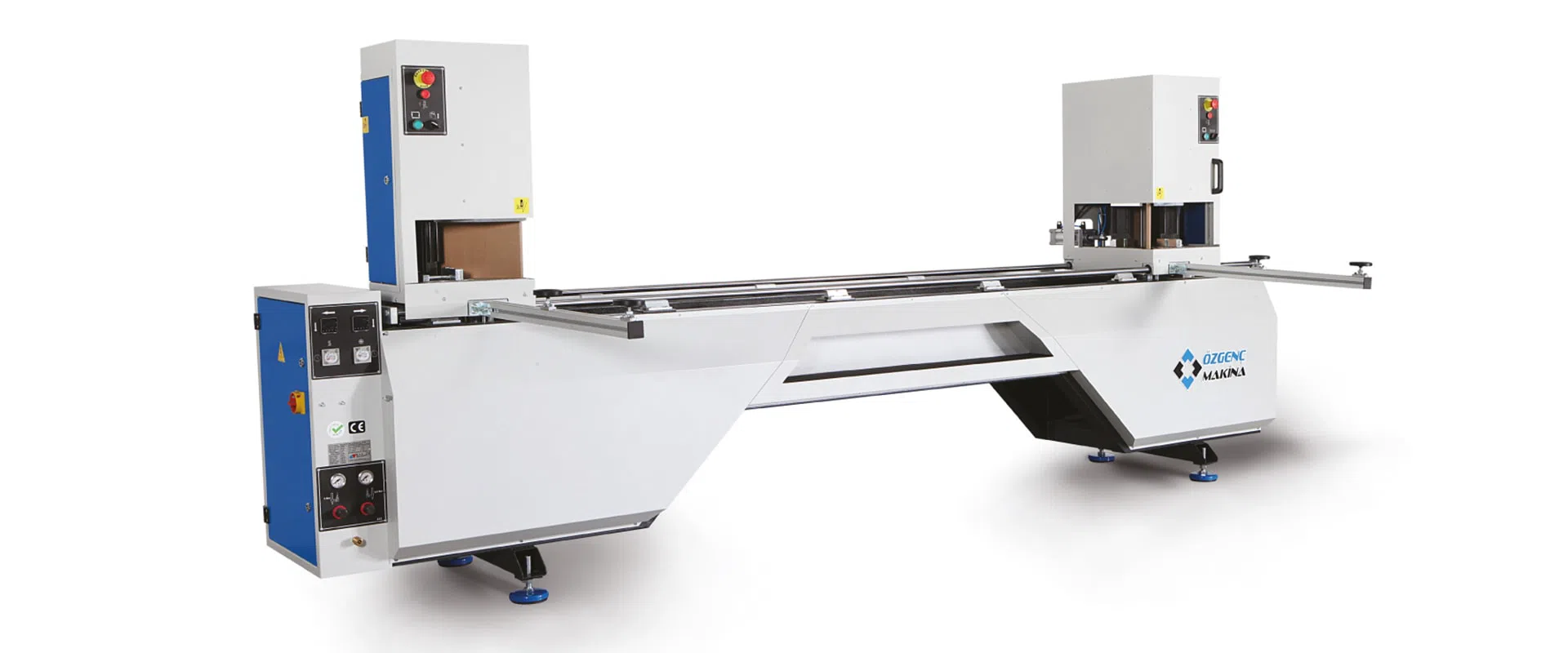

Automatic Dual-Head PVC Profile Welding Machine
Description
• Fully automatic controlled
• Simplified machine control panel that saves time
• Maximum welding strength
• On the fixed left head, angled welding capability between 45° and 180°
• Ability to weld with 2 mm / 0.2 mm using special jaw blades that limit welding burr/flash
• Maximum weldable profile length: 3250 mm (without mold)
• Minimum weldable profile length: 400 mm
• Quick mold (die) change system to prevent time loss
• PLC control system
• Ability to adjust temperature, welding time and pressure for different profile types
• Heating unit with thermostatic control
• Easy temperature adjustment from the digital display
• Profile support arms
• Dual-hand operation and dual-pressure system
• Ability to change the opening sequence of the profile clamps after welding is completed
Documents
Diagrams
OMRMS 112
Specifications
Electrical Technical Values
| Power Supply | 400V / 2,1kW |
Machine
| Machine Height | 1740 mm |
| Machine Width | 1635 mm |
| Machine Length | 4150 mm |
| Machine Weight | 620 kg |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 70 L/cycle |
