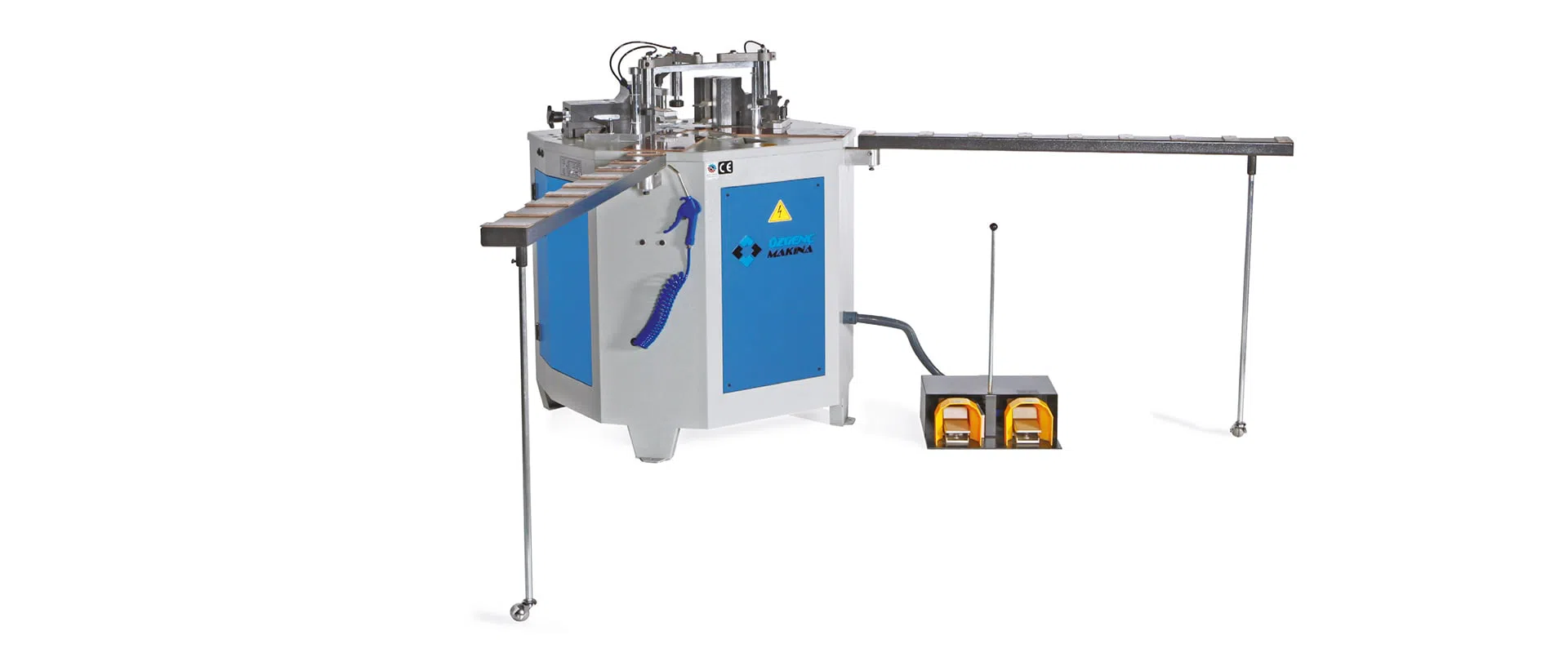

Corner Crimping Machine for Aluminium Profiles

• Press heads with 2 universal blades, adjustable in 3 axes
• Pneumatic crimping via lever system ensures synchronous movement of the
punching heads
• Miter stop has hydropneumatic locking system
• Hydropneumatic drop-away stop for easier handling of the frames
• Miter unit ensures correct alignment and fixation of the profiles during the
crimping operation
• 3 vertical pneumatic clamping units for proper positioning and fixing of profiles
• Ability to adjust the pressing group to the desired position in millimetres
• Alignment of frame with side stops
• 2 pairs of standard crimping knives (4 & 6 mm)
• Supporting arms for profiles (right & left)
• Two pedal control
• Hydropneumatic working principle
