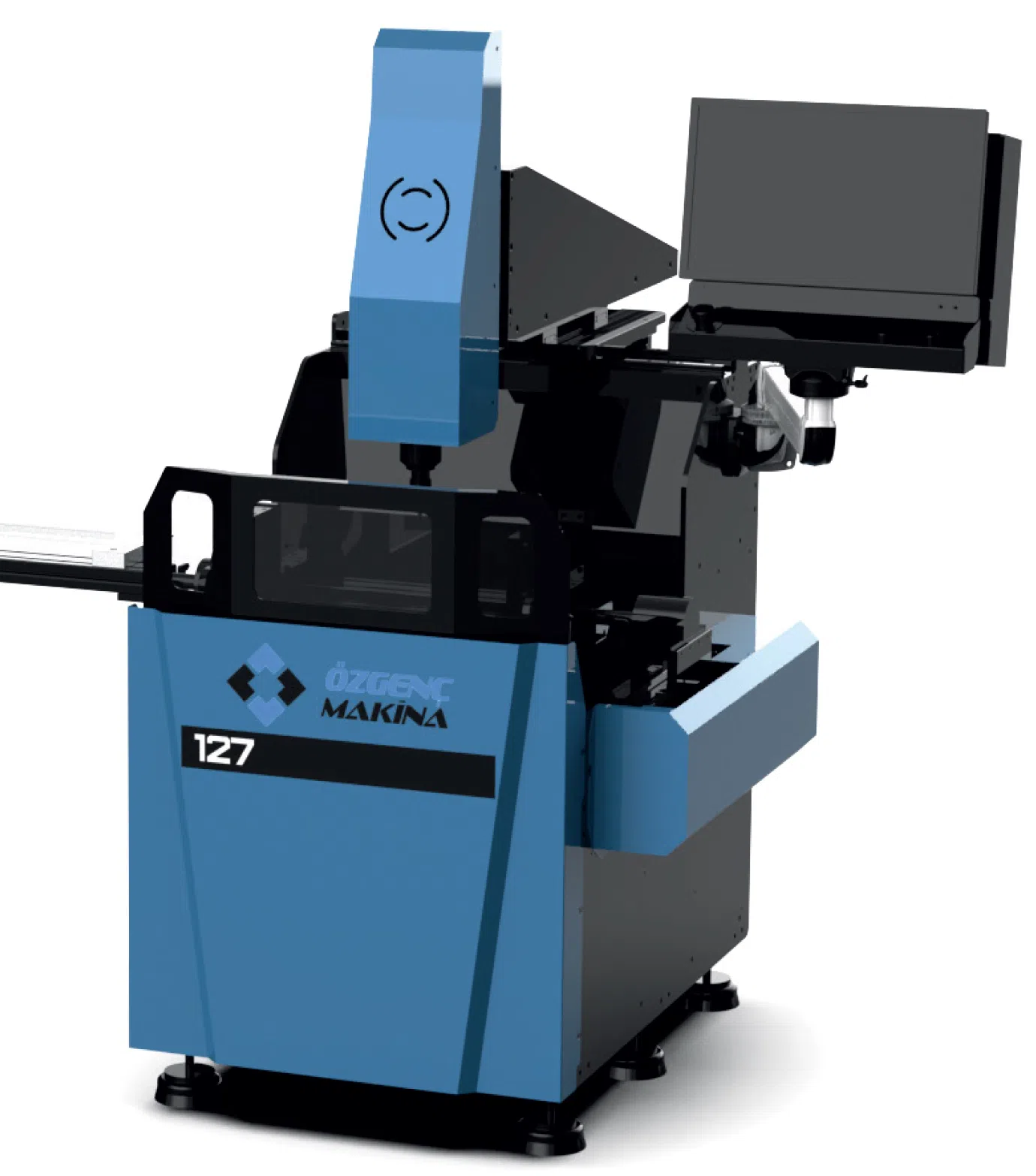

3+1 Axis CNC Aluminum & PVC Profile Milling Machine
Description
• CNC machining centre able to process aluminium and PVC door and window profiles
without rotation in 3 axes and at angles between 0° and 180°
• 1 hertz motor for drilling holes and cutting holes for arm and lock locations
• Servo motor-controlled profile table and support arm (1900 mm) for intermediate
angles
• Profile clamping with a 2-piece manual vice
• Safety cover for OHS protection purposes
• Manual lubrication system for linear guide system
• 21.5-inch screen Windows-based operating system
• User-friendly interface (TURBOCAM)
• Problem diagnosis and service via remote connection
Documents
Diagrams

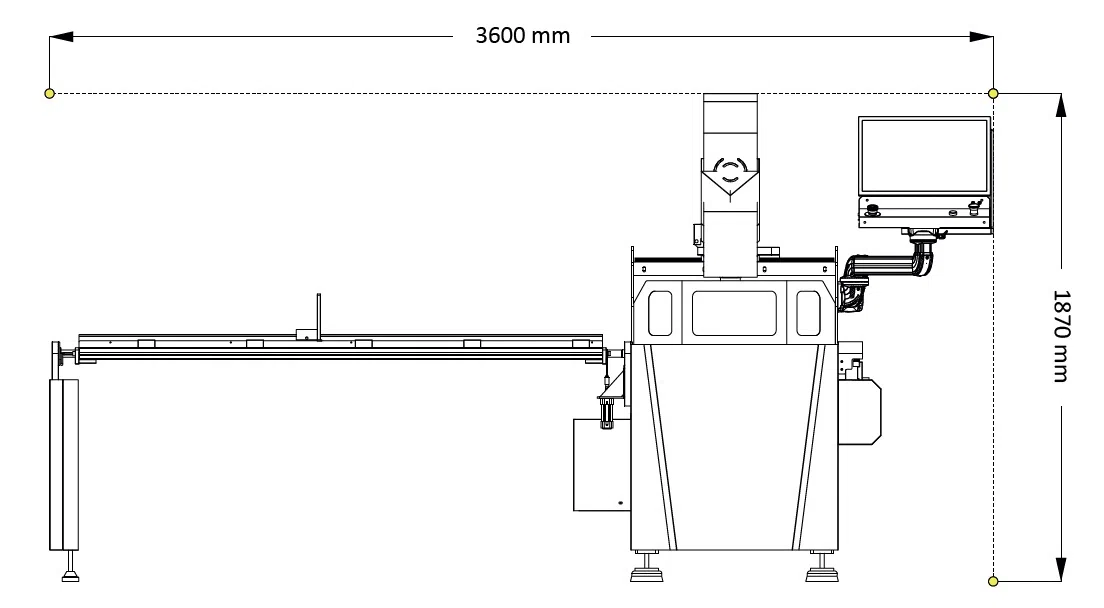

OMRM 127 PRO Light

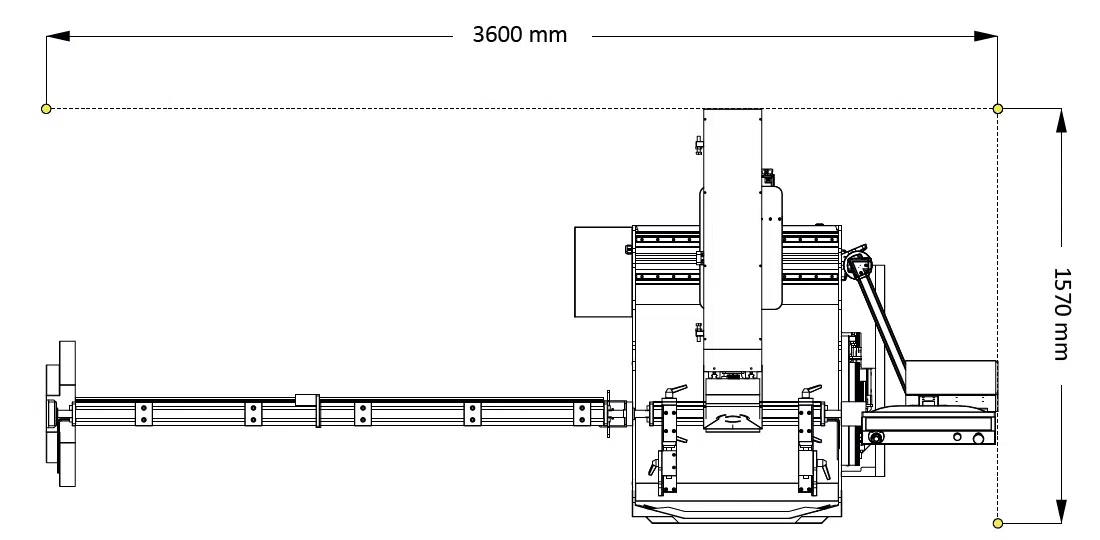

OMRM 127 PRO Light
Specifications
Air Consumption
| Air Consumption | - |
| Air Pressure | 6-8 Bar |
Electrical Technical Values
| Power Supply | 400V / 3kW |
Milling Unit
| Milling Motor | 300 Hz / 18.000 rpm / 2,2 kW / ER20 |
Machine
| Machine Weight | - |
| Machine Height | 2250 mm |
| Machine Length | 4950 mm |
| Machine Width | 2000 mm |
Profile
| Maximum Machinable Profile Height | 200 mm |
| Maximum Machinable Profile Length | 3000 mm |
| Maximum Machinable Profile Width | 130 mm |
