OMRM 124 - 2

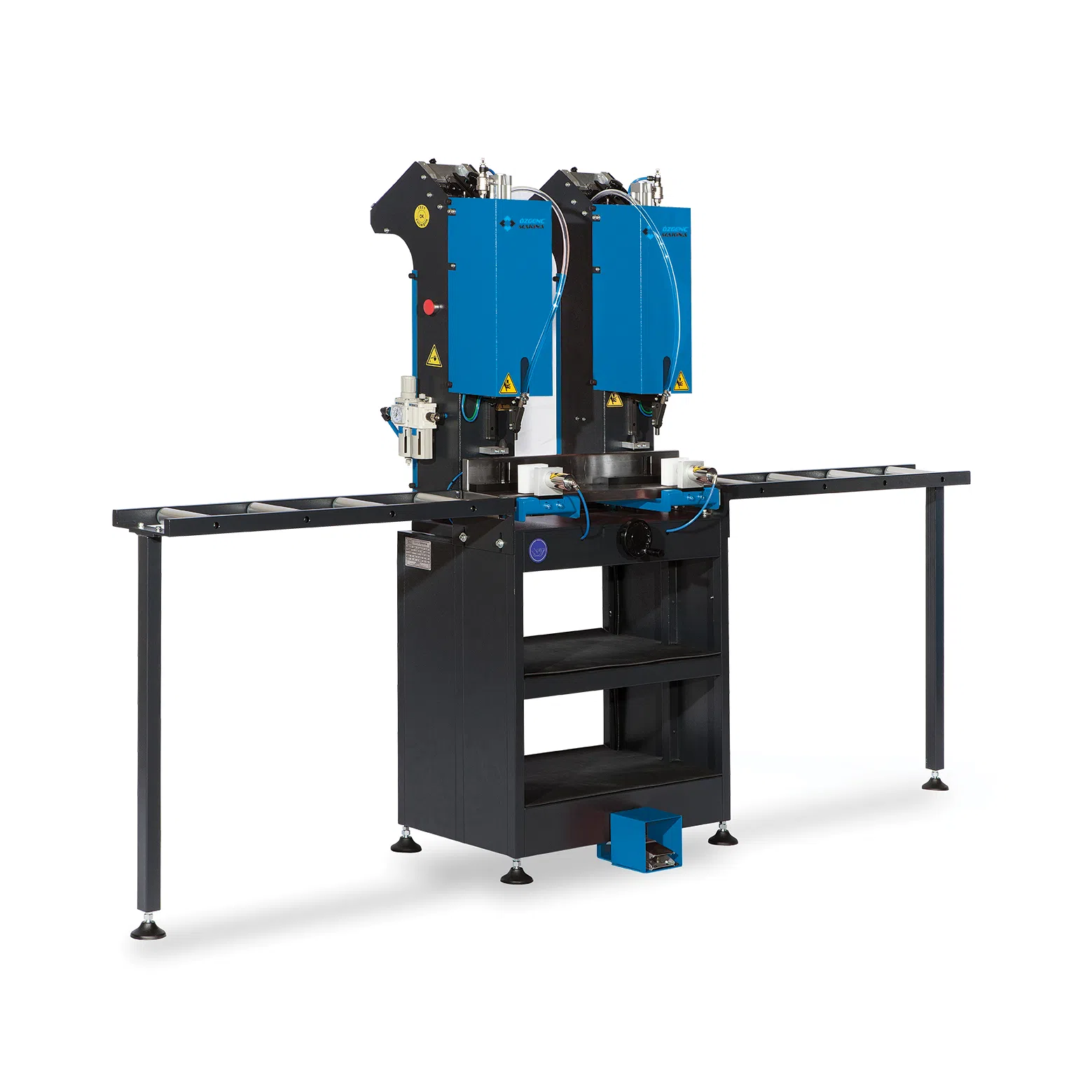

Automatic Double Screwing Machine for PVC Profiles
Description
• Pneumatic automatic screw feeding unit
• Pedal-controlled automatic screwing
• Automatic stop after screwing is completed
• Special screw height adjustment pin
• Automatic profile clamping during screwing
• Adjustable profile stop distance
• Long-lasting screw bits with easy replacement
• Average screwing speed: 1.7 sec per piece
• Adjustable distance between screwing heads
• Maximum sheet thickness: 2.5 mm
Documents
Diagrams
OMRM 124 - 2
Specifications
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 32 L/cycle |
Machine
| Machine Weight | 150 kg |
| Machine Height | 1720 mm |
| Machine Width | 720 mm |
| Machine Length | 2760 mm |
Profile
| Maximum Loadable Profile Height | 120 mm |
| Minimum Loadable Profile Height | 40 mm |
| Maximum Loadable Profile Width | 120 mm |
| Minimum Loadable Profile Width | 40 mm |
