OMRM 124

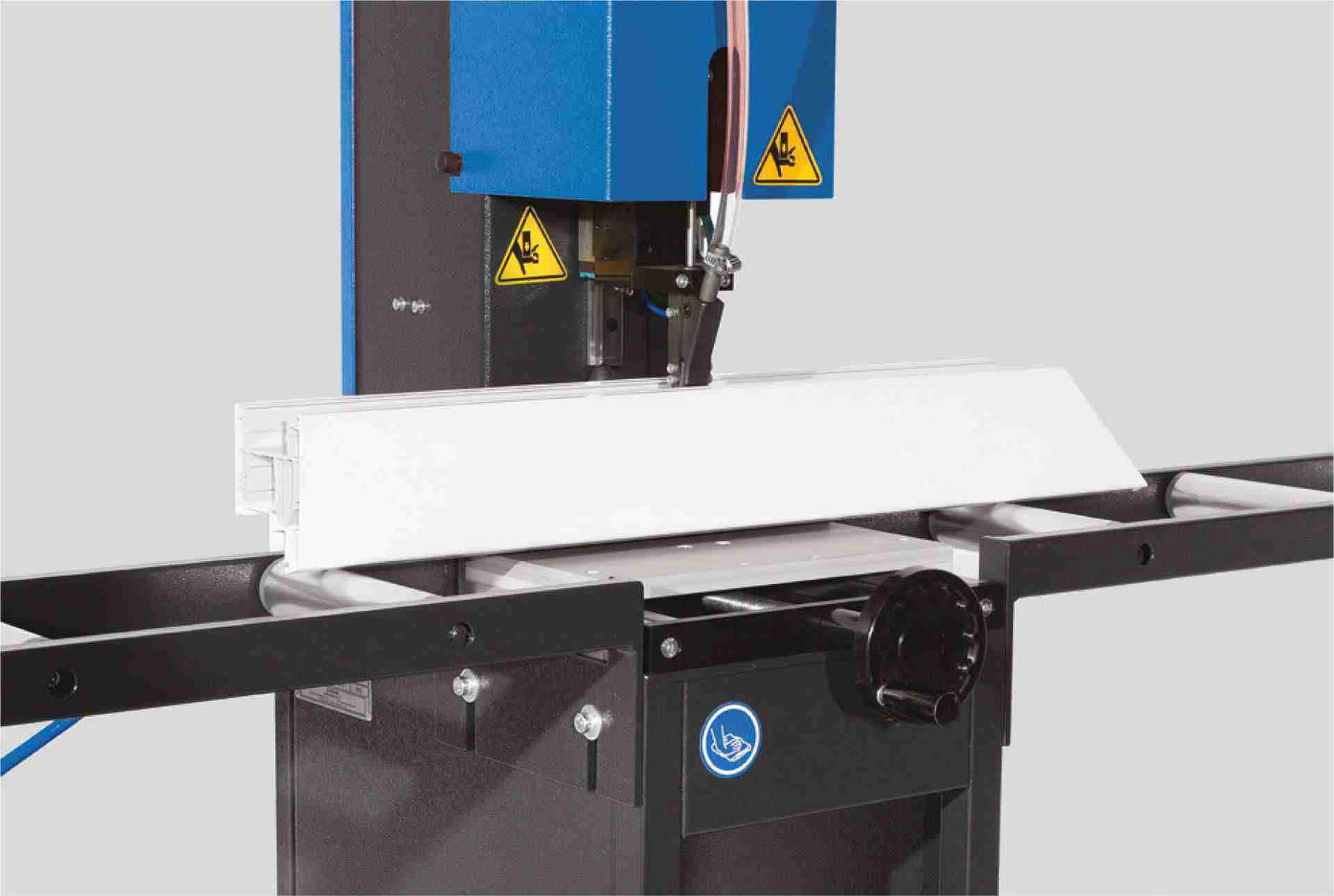

Automatic PVC Profile Screw-Driving Machine
Description
• Pneumatic automatic screw feeding unit
• Pedal-controlled automatic screw driving
• Automatic stop after the screw-driving operation is completed
• Special screw height adjustment switch
• Automatic profile clamping during screw driving
• Adjustable profile stop distance
• Long tool bit life and easy replacement option
• Average screw-driving speed: 1.7 sec/pcs
• Maximum sheet thickness: 2.5 mm
Documents
Diagrams
OMRM 124
Specifications
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 16 L/cycle |
Machine
| Machine Weight | 90 kg |
| Machine Height | 1720 mm |
| Machine Width | 750 mm |
| Machine Length | 2400 mm |
Profile
| Maximum Loadable Profile Height | 120 mm |
| Minimum Loadable Profile Height | 40 mm |
| Maximum Loadable Profile Width | 100 mm |
| Minimum Loadable Profile Width | 40 mm |
