OMRM 121 PRO

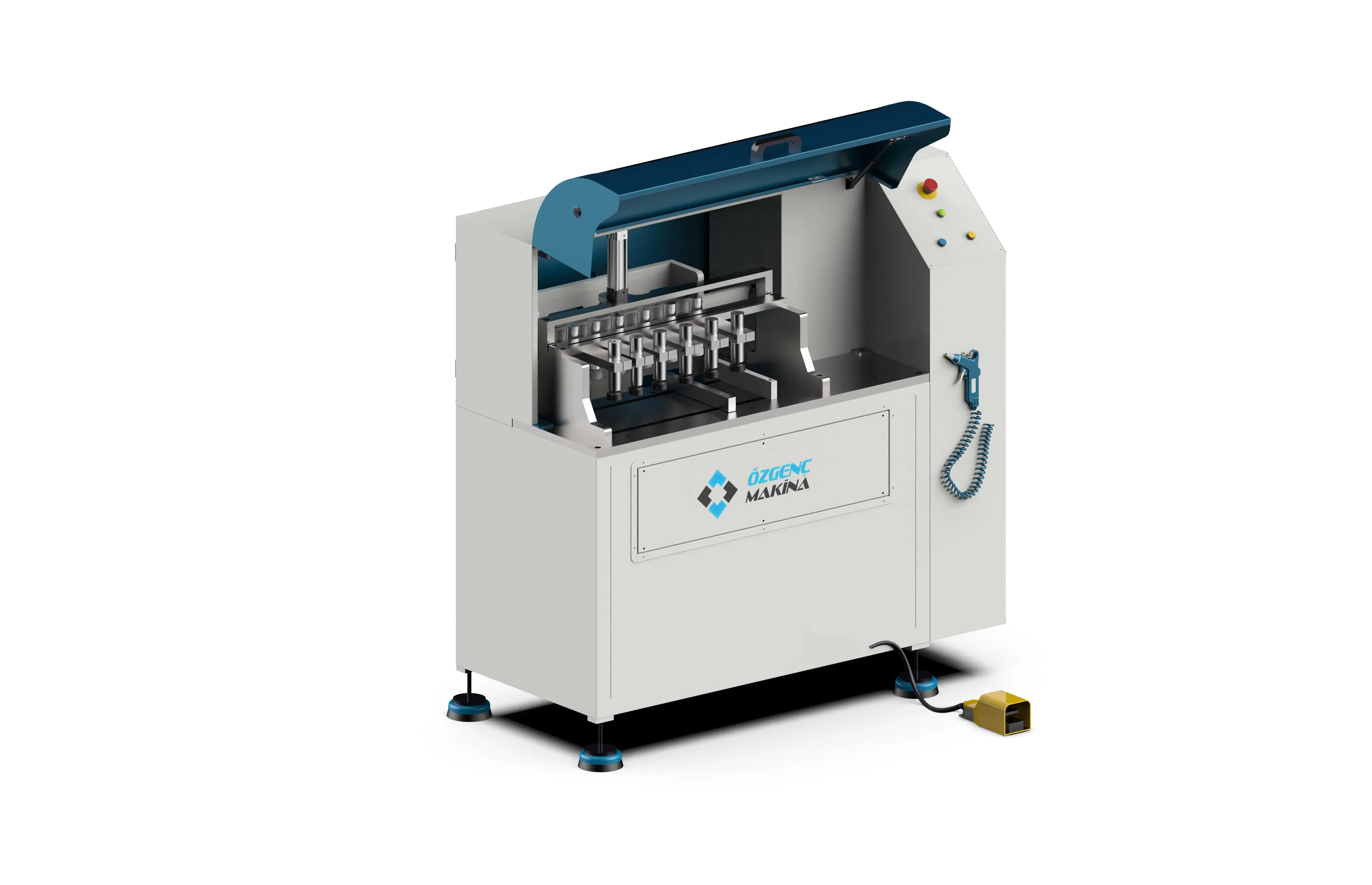

Automatic Multiple End Milling Machine
Description
• Automatic milling operation
• It can perform end milling operation on 1 to 6 profiles
• Fast blade changing system
• Rotating support system for quick adjust
• Possibility to easily adjust the cutting speed with the regulator on the panel
• Vertical pneumatic clamping system
• Specially designed plate preventing profile sliding
• Additional fixing of profile by a side stop
• 2 items of cutter holders
• Special storage section for milling cutter holders
Diagrams
light
Specifications
Blade Specifications
| Blade Diameter | 160 mm |
| Blade Bore Diameter | 30 mm |
| Maximum Blade Height | 135 mm |
Machine
| Machine Weight | 340 kg |
| Machine Height | 1860 mm |
| Machine Width | 1600 mm |
| Machine Length | 1300 mm |
Electrical Technical Values
| Power Supply | 400V / 2,2kW / 10A |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 70 L/cycle |
Power
| Motor Power | 50Hz / 2900 rpm / 1,5kW |
