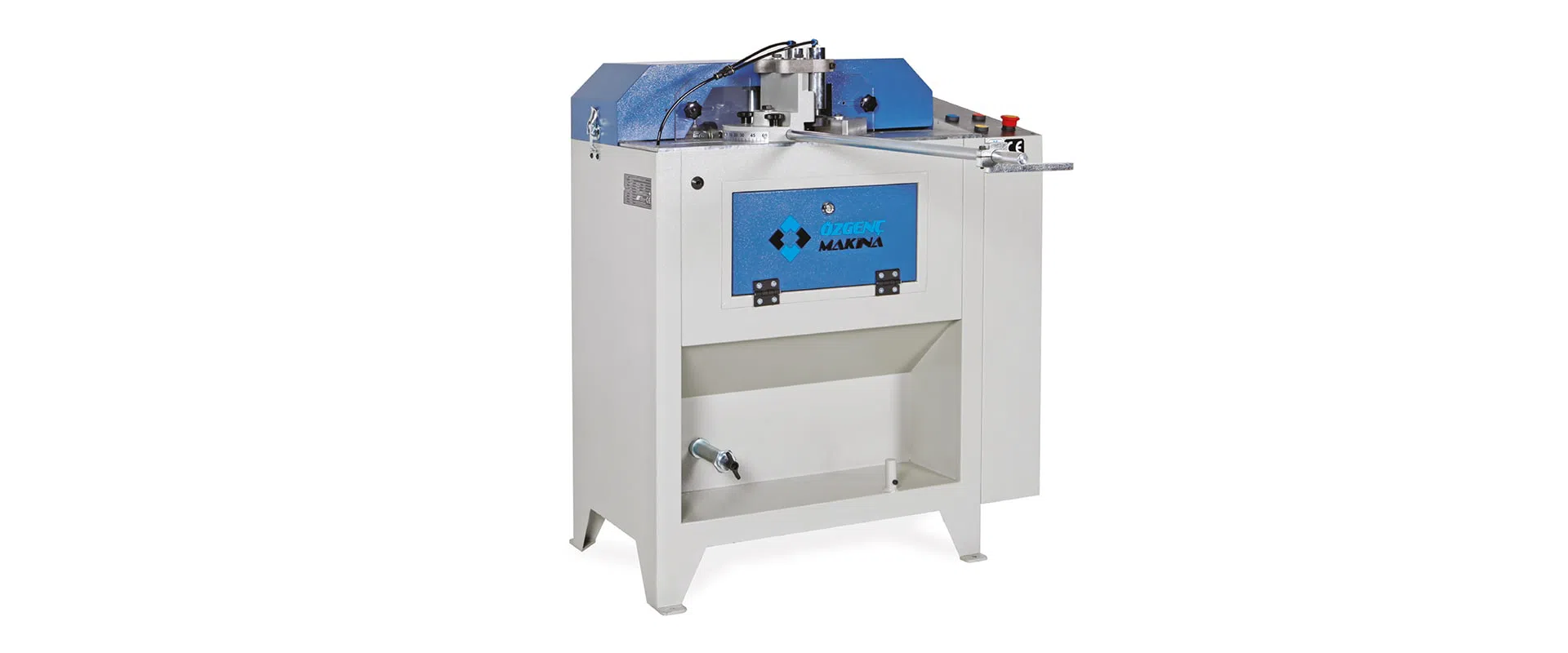

Automatic Mullion Fitting Machine (Serial Blade System)
Description
• Automatic fitting operation
• Serial blade change system
• Rotary support system that can be quickly adjusted for four different profile types
• Easy adjustment of cutting speed via the regulator located on the control panel
• Profile fitting capability at -45° / +45° and intermediate angles
• Vertical pneumatic profile clamping system
• Specially machined table preventing profile slippage
• Profile side support gauge
• Special fixing channel on the profile support guard
• Support arm for profiles
• 2 blade groups (standard)
• Blade group storage compartment
Optional:
• Hydropneumatic and cooling systems for aluminium profile fitting
Documents

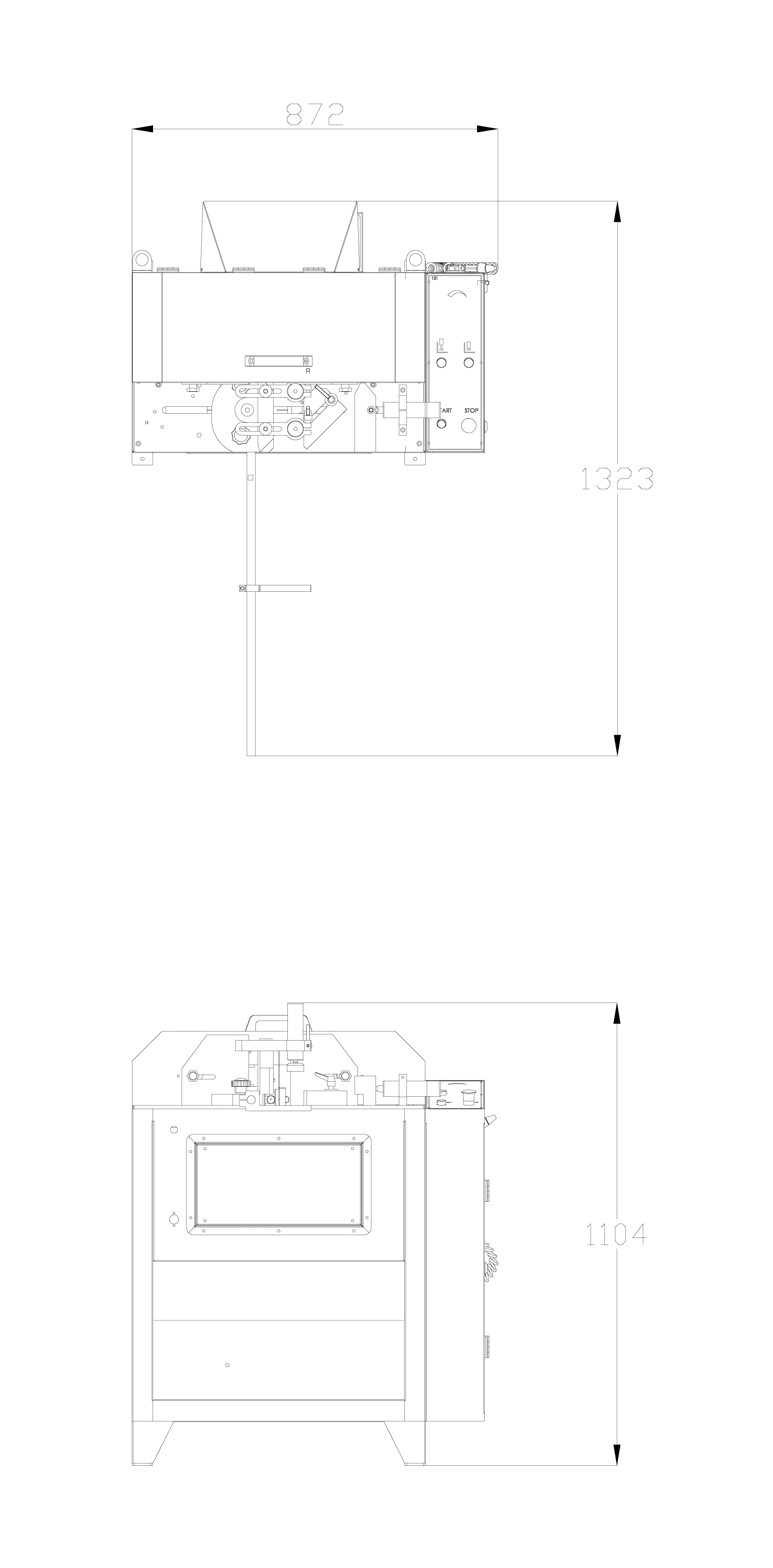

Diagrams
OMRM 121
Specifications
Blade Specifications
| Blade Bore Diameter | 30 mm |
| Maximum Blade Height | 135 mm |
| Blade Diameter | 160 mm |
Electrical Technical Values
| Power Supply | 400V / 1,5kW / 2,4A |
Power
| Motor Power | 50Hz / 2810 rpm / 1,1kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 10 L/cycle |
Machine
| Machine Height | 1130 mm |
| Machine Width | 1200 mm |
| Machine Length | 700 mm |
| Machine Weight | 110 kg |
