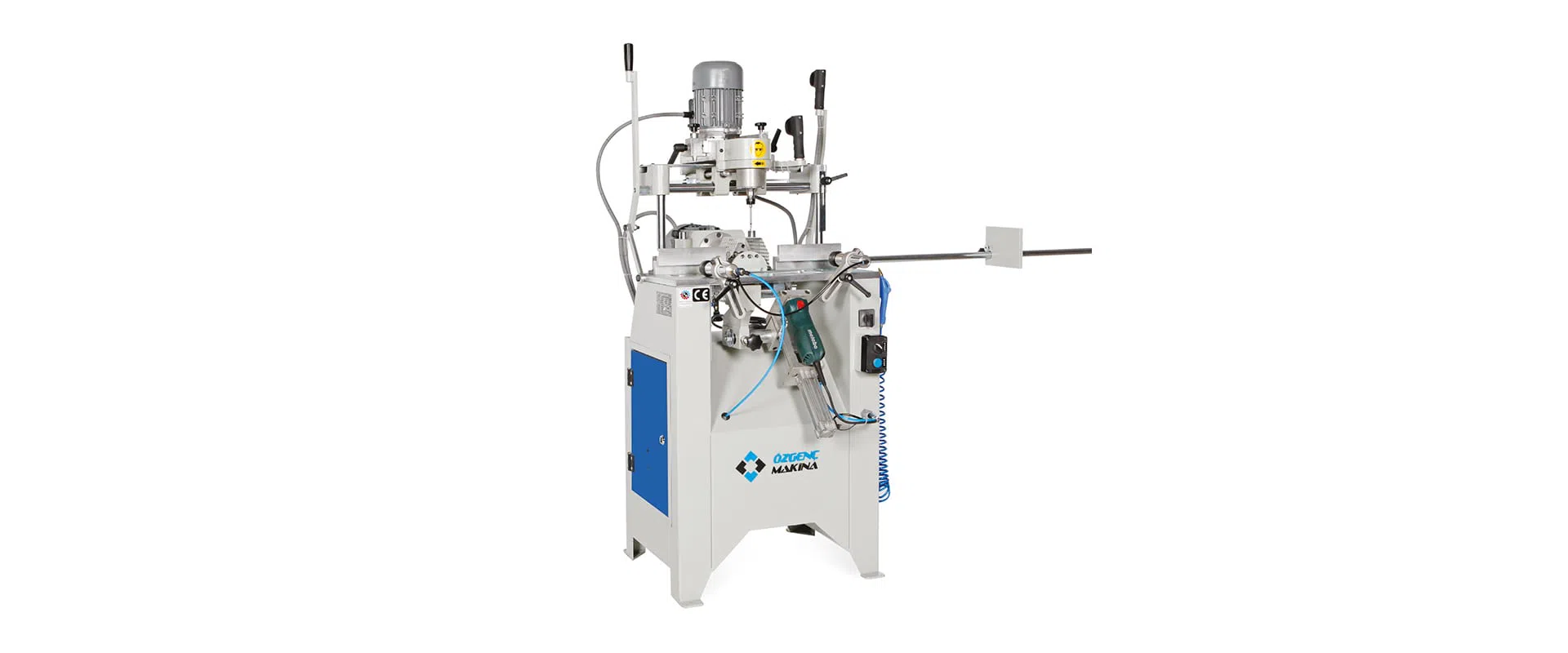

Copy Router Machine with Triple Drilling And Water Slot Milling

• Manually operated copy milling unit with triple drilling group
• Capability to perform all copy milling operations using a
universal template
• Automatic 45° angled drainage groove milling unit
• Easy angle and depth adjustment on the drainage groove unit
• 1:1 ratio copying process
• Anti-vibration support system in the triple drilling group
• Low-speed motor in the triple drilling group for extended drill life
• Horizontal pneumatic profi le clamping system
• Smooth milling unit movement supported by a shock
absorber
• 4 mm thick deformation-resistant template
• Stable and precise milling unit with linear bearings
• Adjustable working height
• Four-step depth adjustment system
• Stop fence
Option:
• Cooling system for aluminum profi le milling
