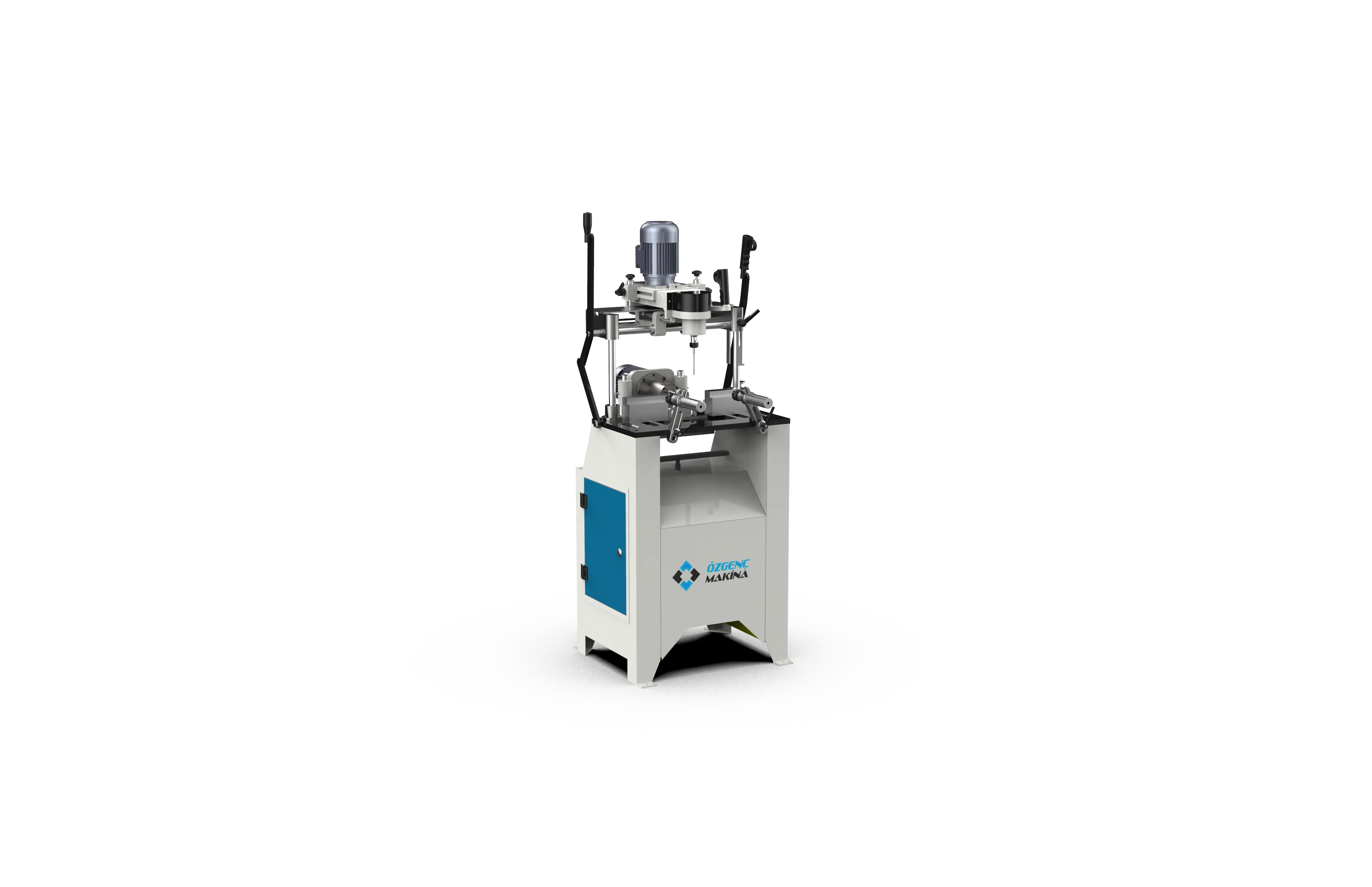

Dual Drilling Copy Milling Machin
Description
• Manually movable copy milling unit and dual drilling unit
• Capability to perform all copying operations with its universal template
• Copying operation performed at a 1:1 ratio
• Runout-preventing support system in the dual drilling unit
• Low-speed motor in the dual drilling unit to extend drill life
• Horizontal pneumatic profile clamping system
• Smoother milling unit movement thanks to the shock absorber
• 4 mm thick template resistant to deformation
• More stable and precise milling unit with linear bearings
• Adjustable working height
• 4-stage depth adjustment system
• Stop fence
• Cooling system for aluminum profile milling
Specifications
Machine
| Machine Weight | 133 kg |
| Machine Height | 1434 mm |
| Machine Width | 845 mm |
| Machine Length | 1631 mm |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 2 lt/cycle |
Electrical Technical Values
| Power Supply | 400V / 1,1kW / 6A |
Power
| Milling Motor | 50 Hz / 2880 rpm / 1,1 kW |
