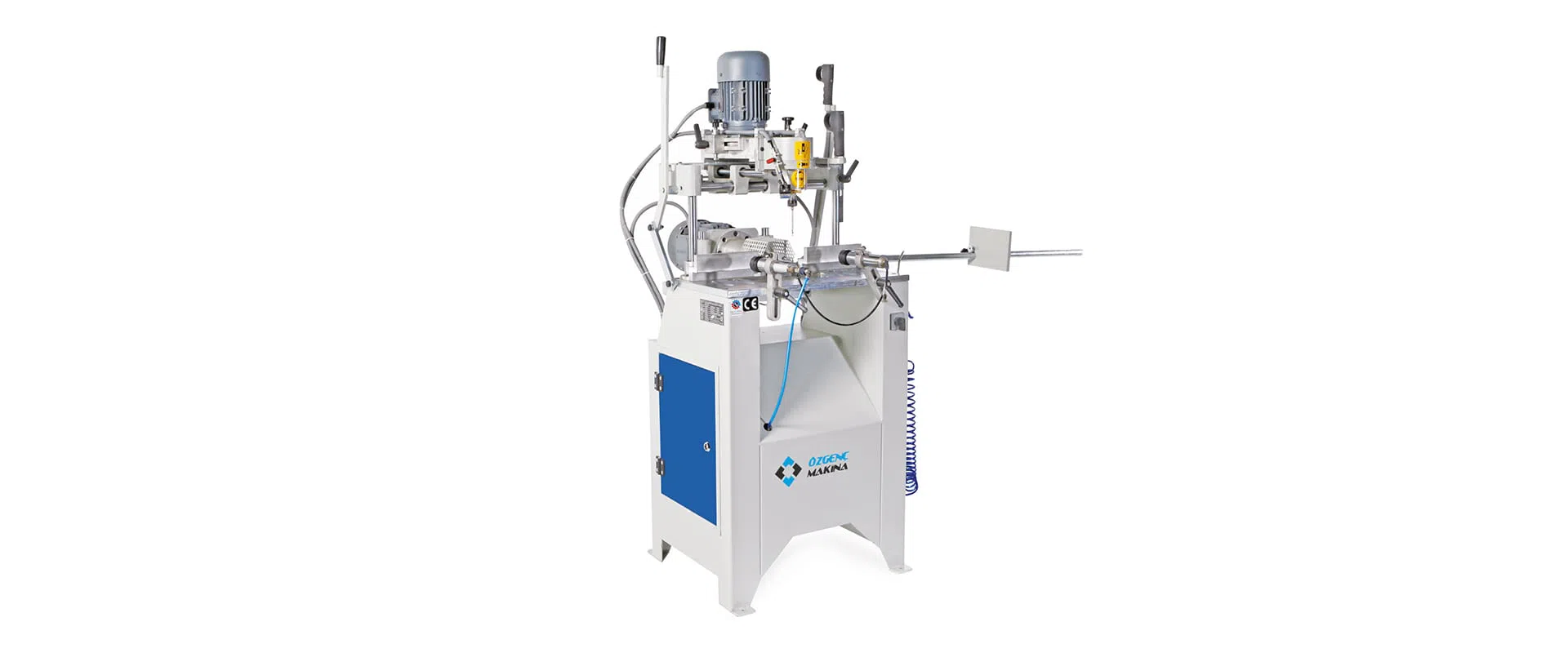

Copy Router Machine with Triple Drilling
Description
• Manually operated copy milling unit with triple drilling group
• Capability to perform all copy milling operations using a universal
template
• 1:1 ratio copying process
• Anti-vibration support system in the triple drilling group
• Low-speed motor in the triple drilling group for extended drill life
• Horizontal pneumatic profi le clamping system
• Smooth milling unit movement with shock absorber support
• 4 mm thick deformation-resistant template
• Stable and precise milling unit with linear bearings
• Adjustable working height
• Four-step depth adjustment system
• Stop fence
Options:
• Cooling system for aluminum profi le milling
• Triple drilling centering system
Documents

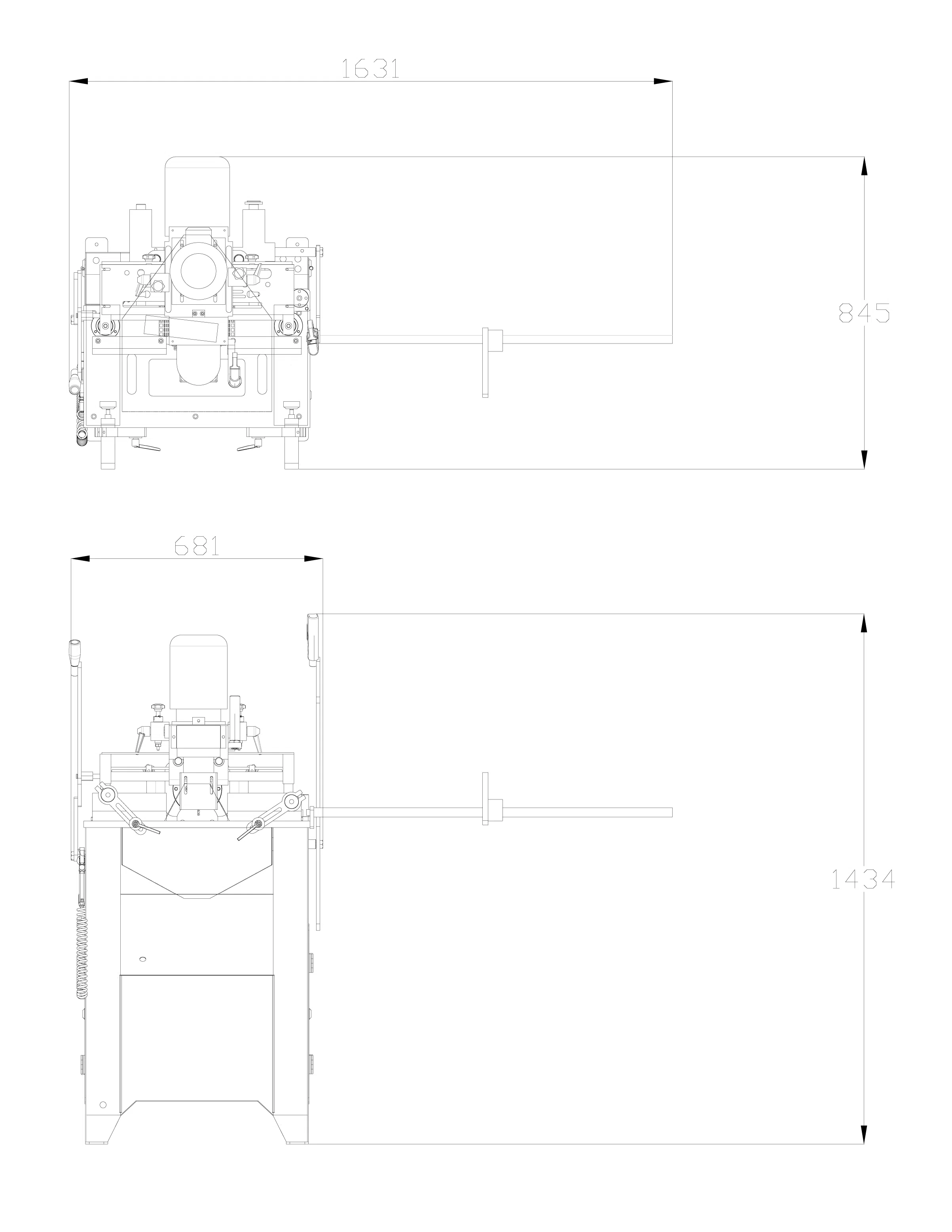

Diagrams
OMRM 117
Specifications
Electrical Technical Values
| Power Supply | 400V / 1,8kW / 3,8A |
Machine
| Machine Weight | 133 kg |
| Machine Height | 1434 mm |
| Machine Width | 845 mm |
| Machine Length | 1631 mm |
Profile
| Maximum Machinable Profile Height | 110 mm |
| Minimum Machinable Profile Height | 50 mm |
| Maximum Machinable Profile Width | 160 mm |
Power
| Milling Motor | 50Hz / 2810 rpm / 1,1kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 2,2 L/cycle |
