OMRM 116

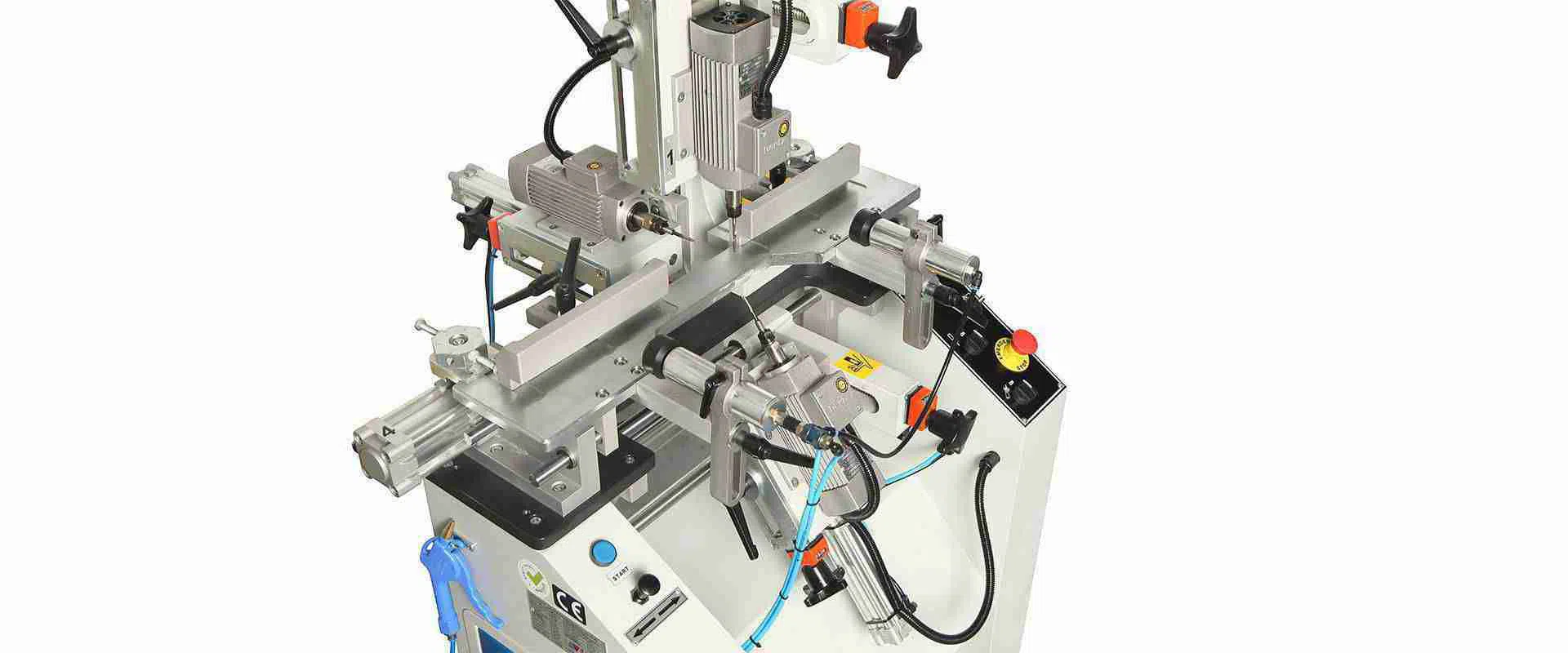

Automatic PVC Profile Drainage Slot Milling Machine
Description
• 3 high-speed milling motors
• Motors can be used individually or simultaneously
• Horizontal pneumatic profile clamping system
• Adjustable milling feed speeds
• Movable table system for symmetrical slot opening
• PLC control system
• Adjustable working height
• Easy position and angle adjustment on milling units
• Milling operation easily adjustable according to different profile types
• Rotary stop system quickly adjustable for six different profiles
Documents

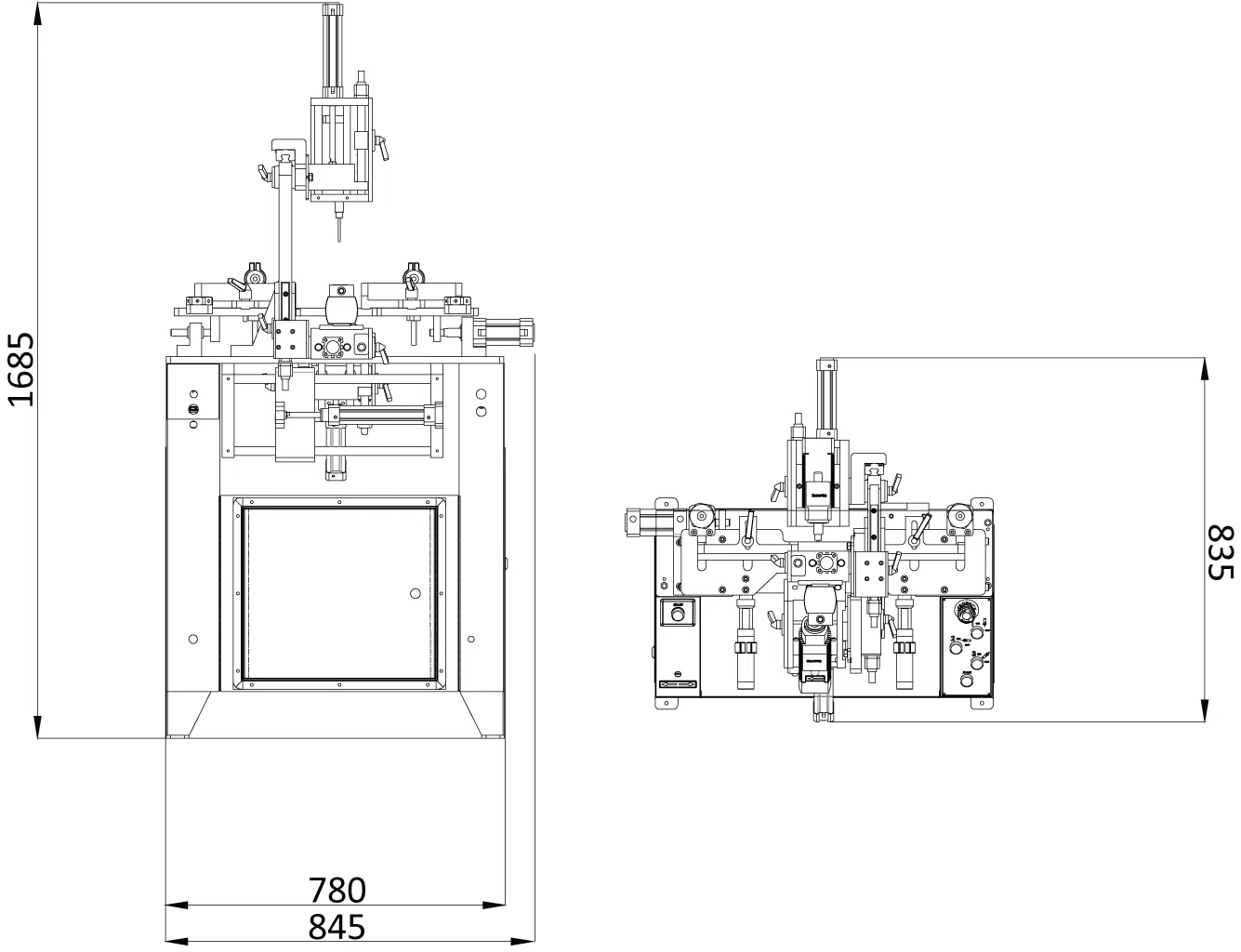

Diagrams
OMRM 116
Specifications
Profile
| Minimum Machinable Profile Height | 40 mm |
| Maximum Machinable Profile Height | 120 mm |
| Maximum Machinable Profile Width | 120 mm |
Electrical Technical Values
| Power Supply | 220V / 2,3kW / 16A |
Power
| Milling Motor | 50Hz / 12000 rpm / 3x0,55kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 7 L/cycle |
Machine
| Machine Weight | 140 kg |
| Machine Width | 835 mm |
| Machine Length | 845 mm |
| Machine Height | 1685 mm |
