OMRM 115 AL

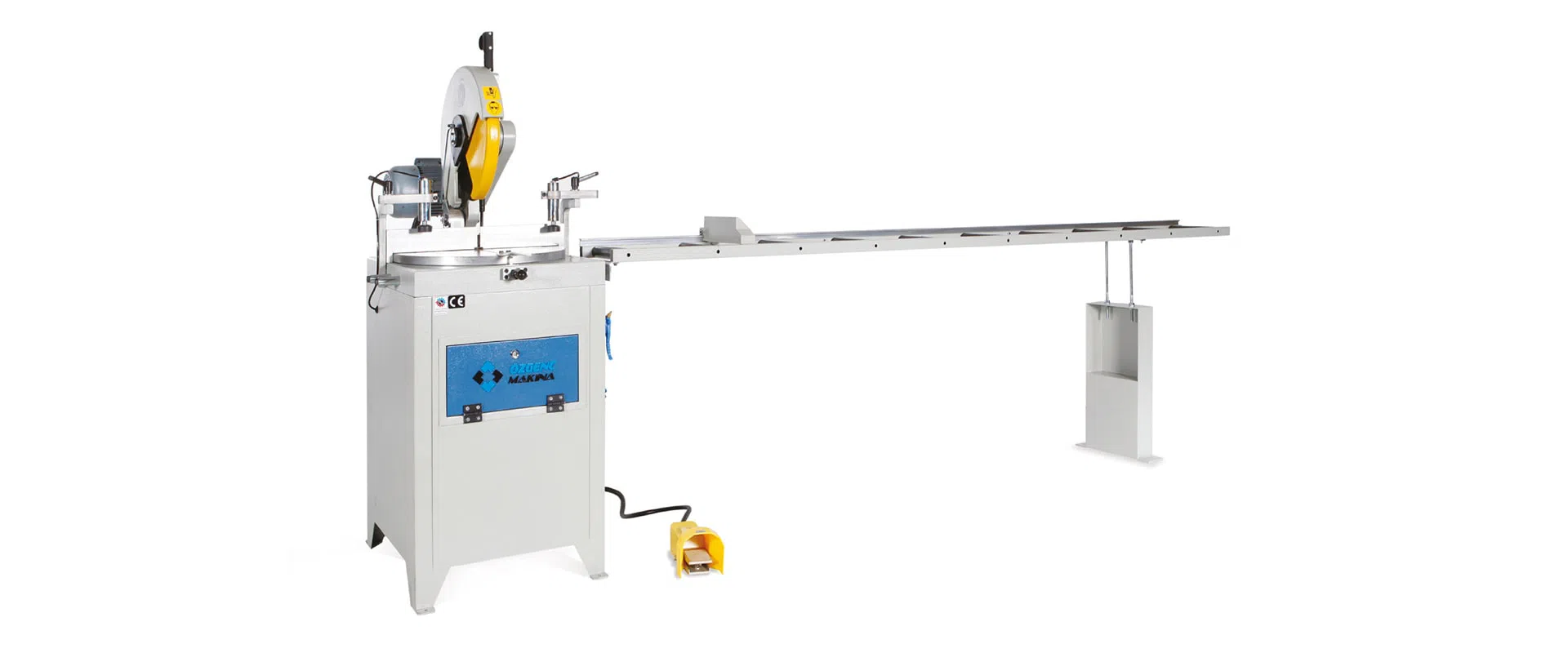

Manual Single Head Aluminium Profile Cutting Machine
Description
Designed for PVC and aluminium profiles cutting.
- Cutting range +45° / -45° and intermediate degrees
- Fixed stops on 90°, 75°, 60°, 45° degrees for making cuts without having to set the angle, and the remaining positions can be set using a graduated rule as reference.
- An additional lock on sliding plate for intermediate degrees fixing
- Special design of sliding plate prevents sawdust collecting inside it
Documents

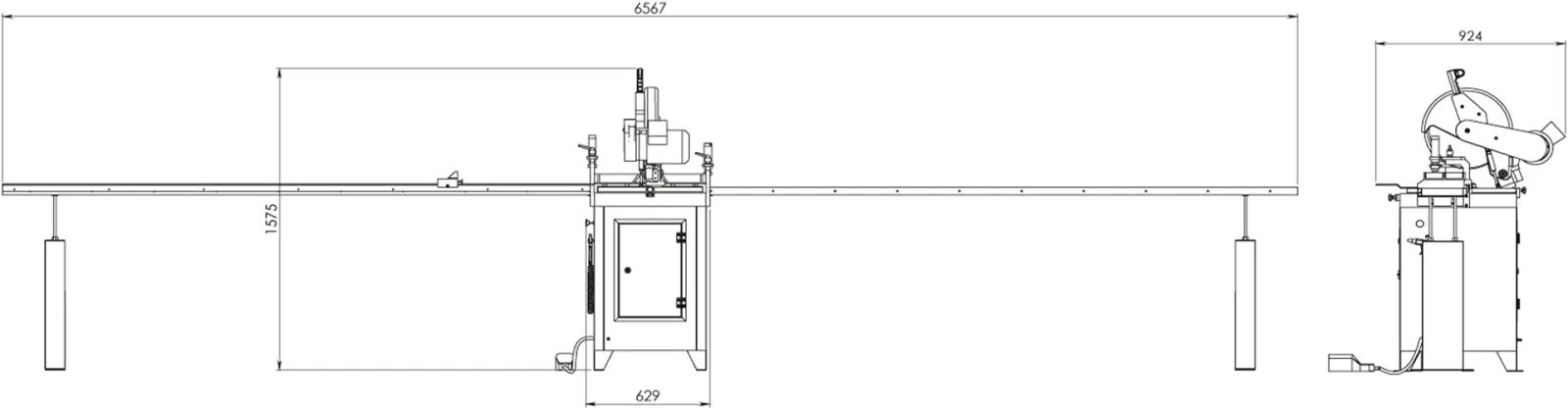

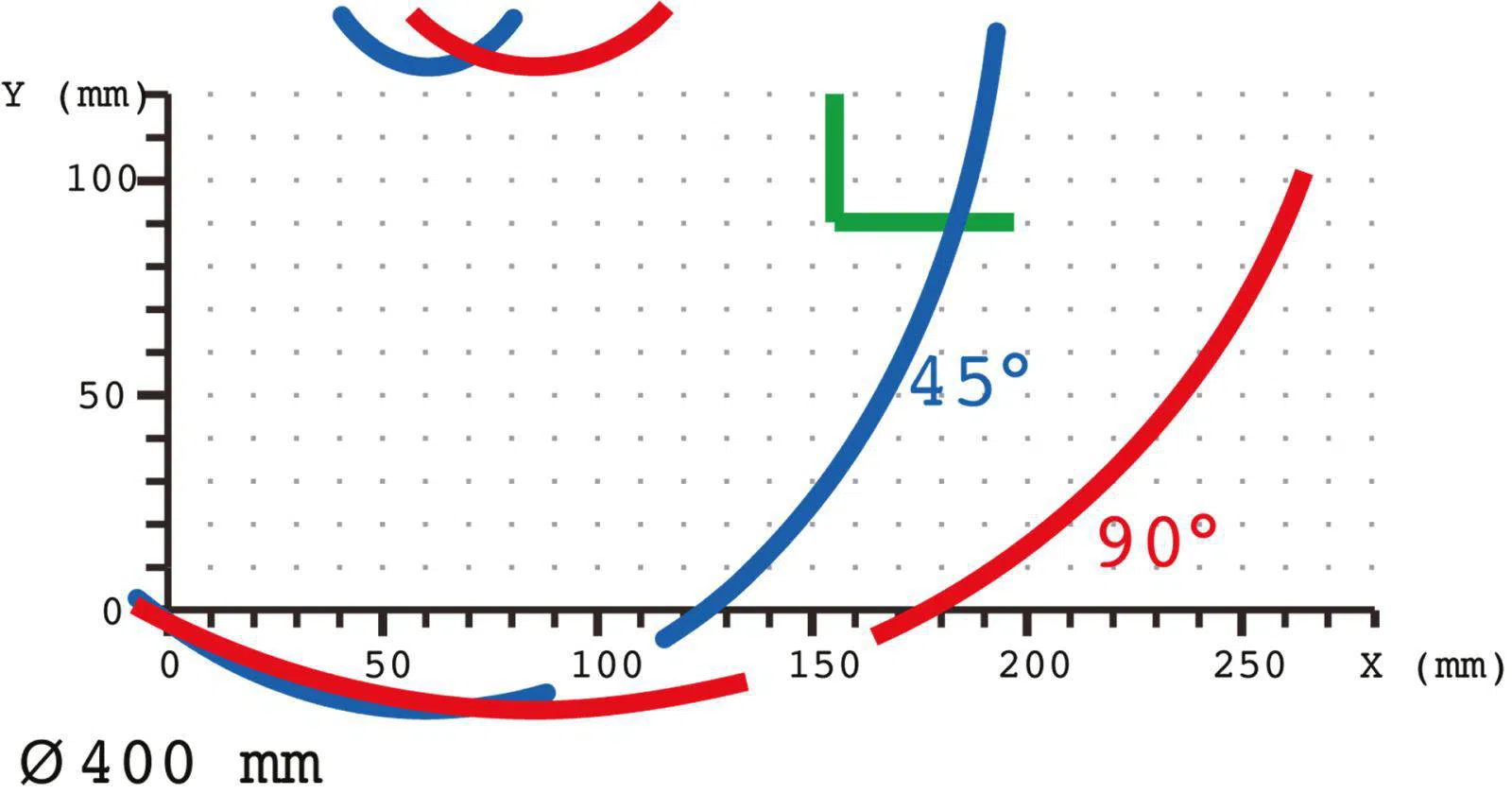

Diagrams
OMRM 115 AL
OMRM 115 AL
Specifications
Air Consumption
| Characteristic | 1.6 kWh |
| Air Pressure | 6-8 Bar |
Machine
| Machine Width | 950 mm |
| Machine Weight | 198 kg |
null
| Saw Dimensions | - |
Video
