OMRM 111

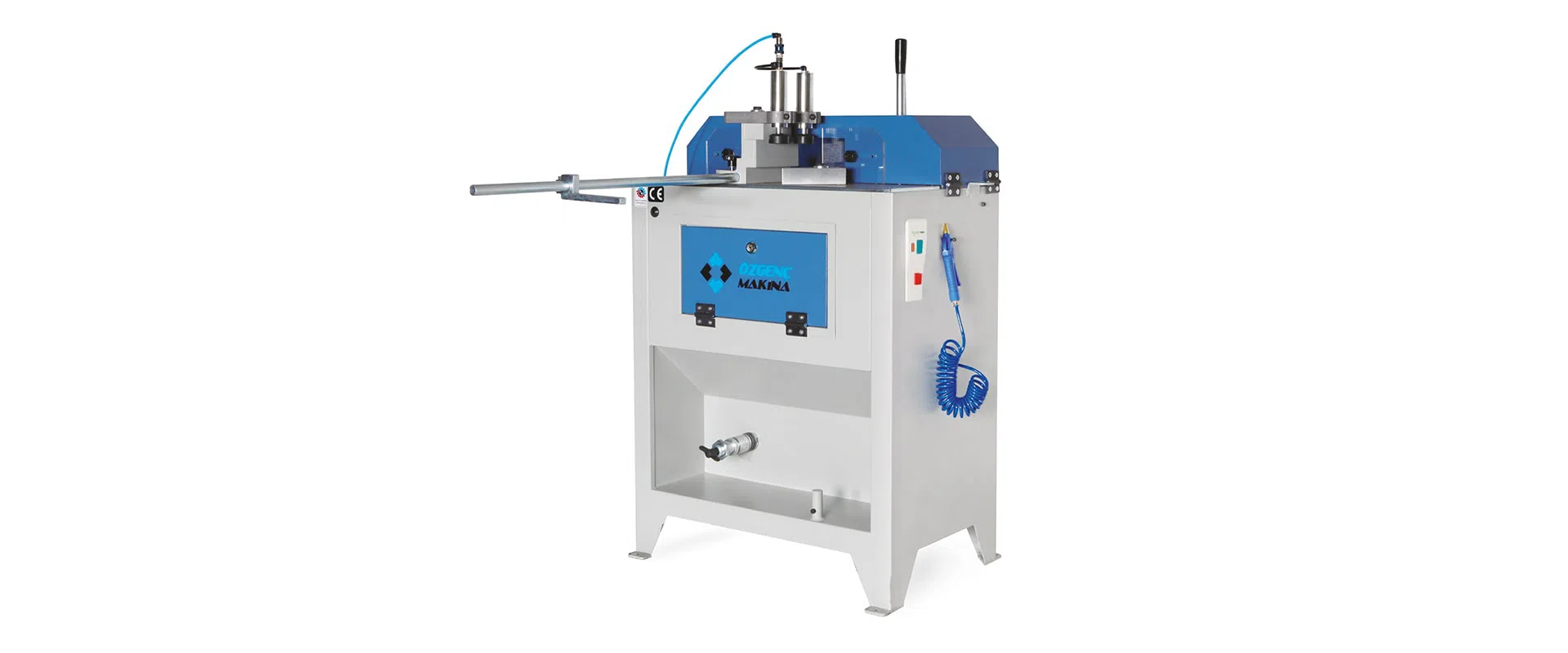

Manual End Milling Machine
Description
• Manual feeding of milling cutter
• Vertical pneumatic clamping system
• Rotating support system for quick adjust to four different profiles.
• Milling operation at –45° / +45° and intermediate angles
• Additional fixing of profile by a side stop
• Special channel in stop plate is made for the best fixing of profile
• Profile supporting arm
• 2 items of cutter holders
• Special storage section for milling cutter holders
• Specially designed plate preventing profile sliding
Option:
• Cooling system for aluminium profile milling
Documents

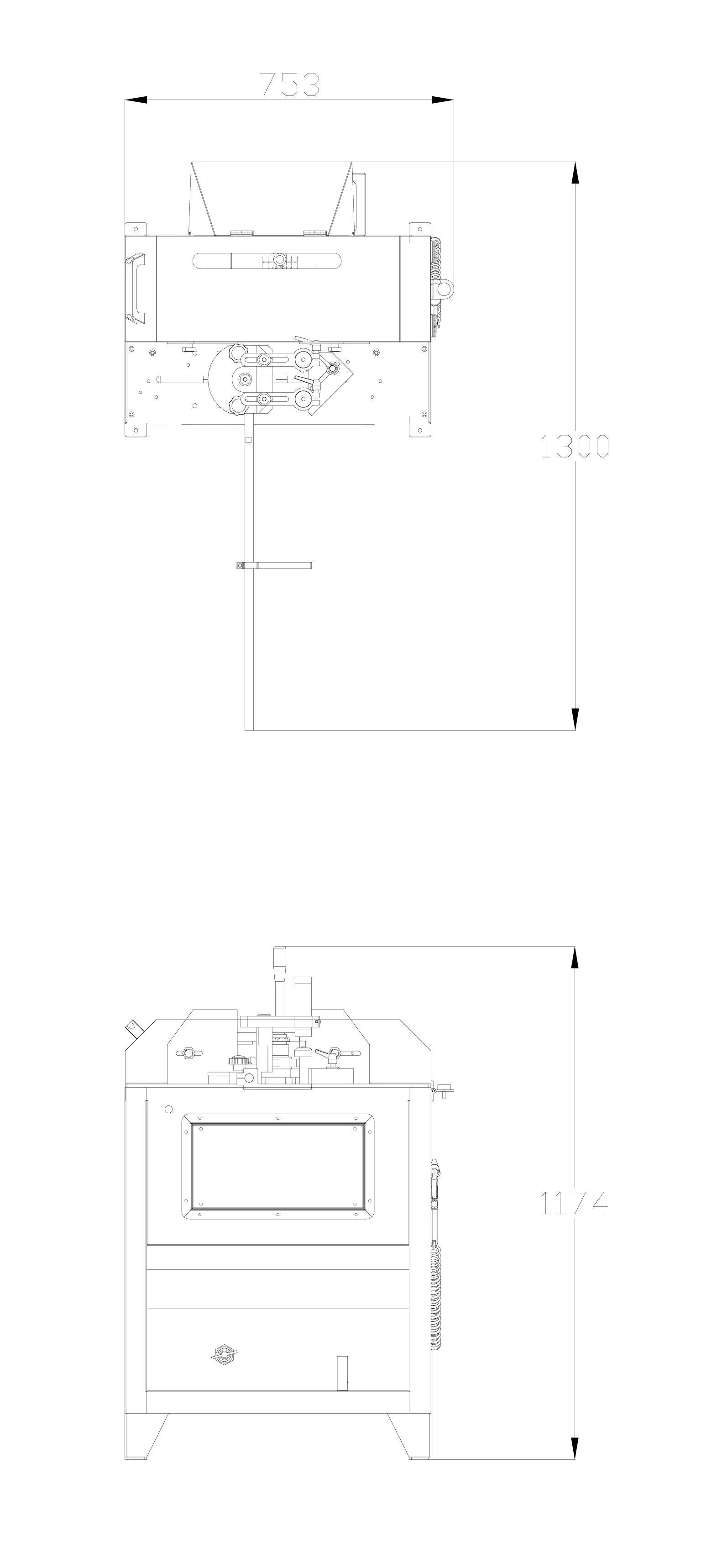

Diagrams
OMRM 111
Specifications
Blade Specifications
| Maximum Blade Height | 135 mm |
| Blade Diameter | 160 mm |
| Blade Bore Diameter | 30 mm |
Electrical Technical Values
| Power Supply | 400V / 1,1kW / 2,4A |
Power
| Motor Power | 50Hz / 2810 rpm / 1,1kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Pressure | 2,2 L/cycle |
Machine
| Machine Weight | 101 kg |
| Machine Height | 1174 mm |
| Machine Width | 1300 mm |
| Machine Length | 753 mm |
