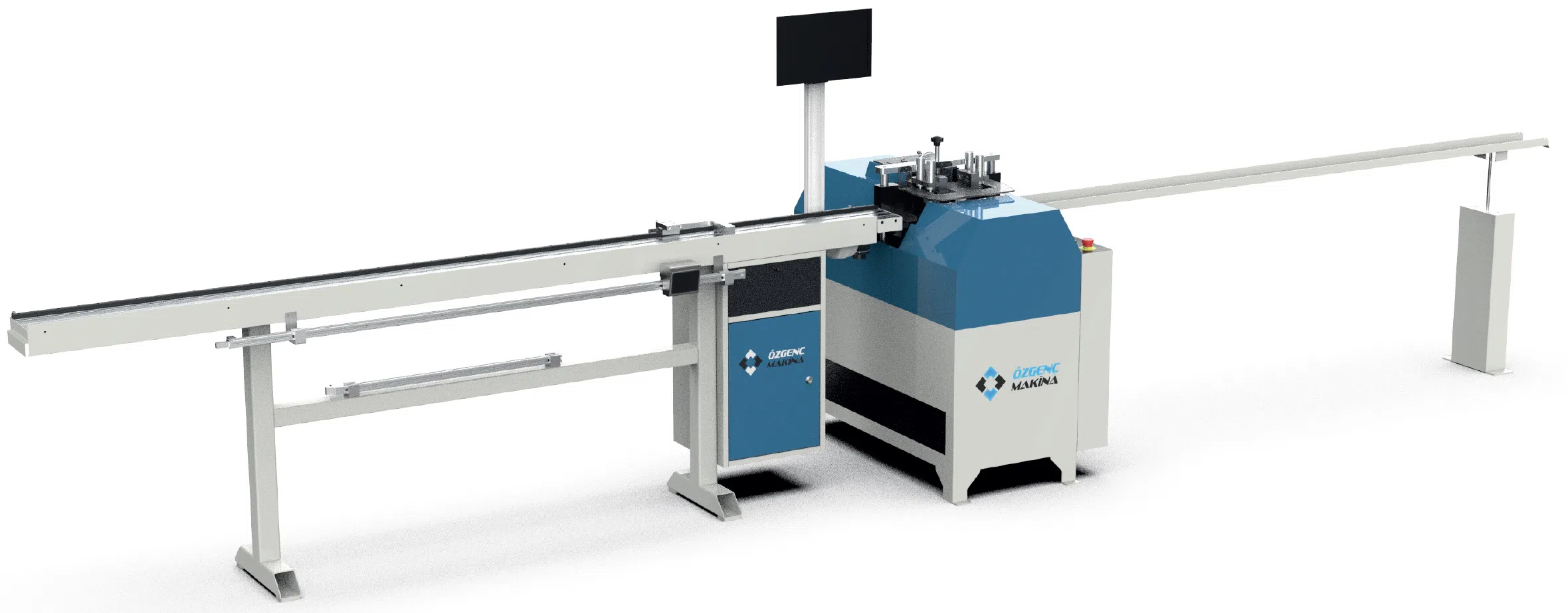

Automatic Moldless Glazing Bead Cutting Machine with Digital Conveyor

• Automatic 45° cutting of PVC glazing beads
• Mold-free operation capability
• 4 HSS saw blades (2 pieces of 200 mm – 2 pieces of 120 mm)
• Vertical pneumatic clamping system
• Easy mold adjustment via setting lever
• Double-sided 45° angled cutting system
• Quick-adjustable rotating stopper system
• Easy cutting speed adjustment using the regulator on the control panel
• 3 m digital measuring conveyor on the left and 2.5 m supporting conveyor on the right
• Servo-controlled stopper movement
• Operation via CSV fi le input or manual data entry
• High-speed and high-precision cutting thanks to servo-controlled conveyor
• 15.6” touch-screen Windows-based control system
• Remote connection for troubleshooting and maintenance
• Unlimited profi le memory capacity
• Ability to transfer cutting fi les to the machine via USB, wireless, or wired network
• Ability to add or remove parts from the cutting list
• Parametric adjustment of conveyor opening distance, duration, and speed
Optional:
• Wireless radio frequency digital caliper
