OMRM 105 PRO

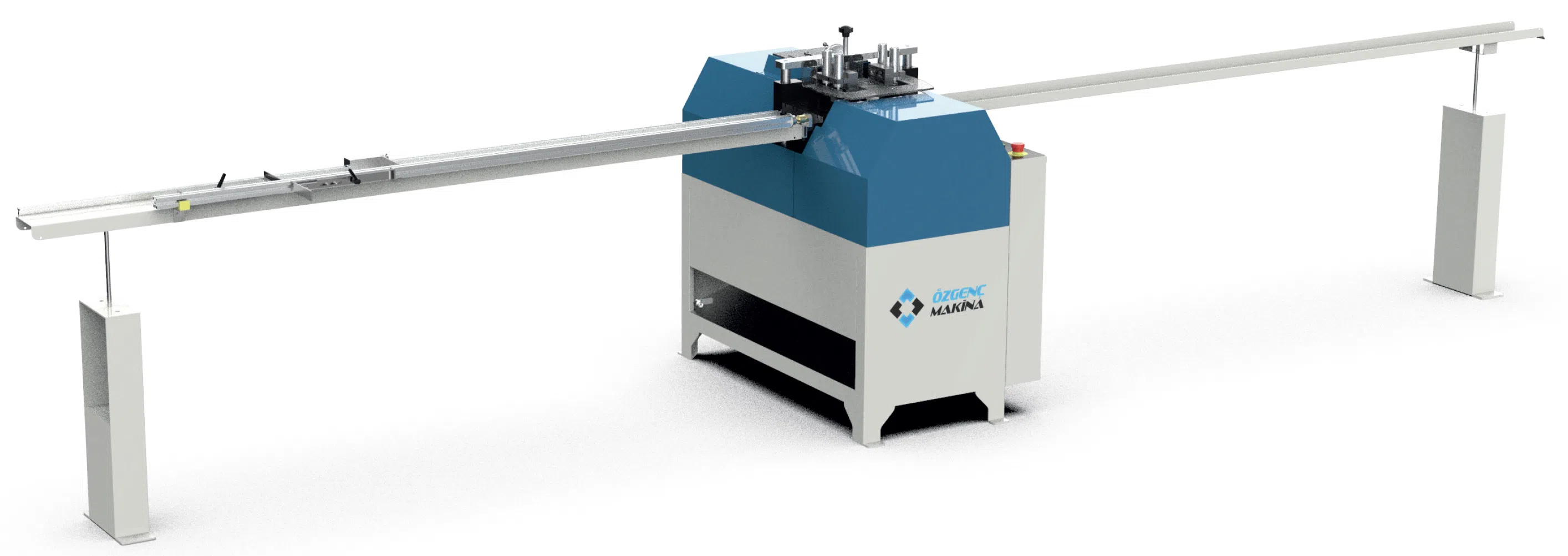

Automatic Moldless Glazing Bead Cutting Machine
Description
• Automatic 45° cutting of PVC glazing beads
• Mold-free operation capability
• 4 HSS saw blades (2 pieces of 200 mm – 2 pieces of 120 mm
• Vertical pneumatic clamping system
• Easy mold adjustment via setting lever
• Double-sided 45° angled cutting system
• Quick-adjustable rotating stopper system
• Easy cutting speed adjustment using the regulator on the control panel
• 2.4 m measuring conveyor on the left and 2.5 m supporting conveyor on the right
Optional:
• Dual-scale caliper device (2050 mm) for fast and precise bead measurement
Documents
Diagrams

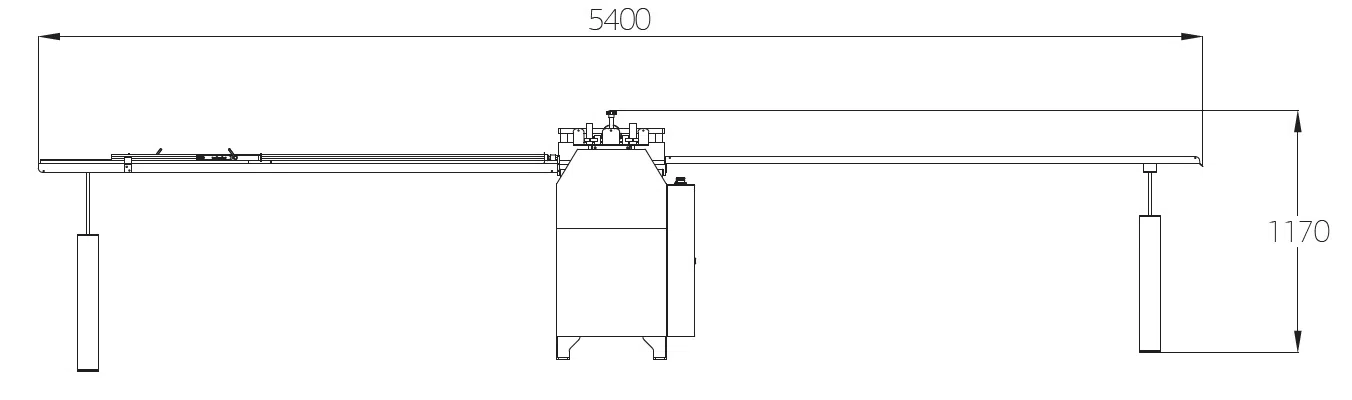

OMRM 105 PRO light
Specifications
Power
| Saw Motor | 50hz / 2780 rpm / 2 x 0,55kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 10 lt/cycle |
Machine
| Machine Weight | 200 kg |
| Machine Height | 1170 mm |
| Machine Width | 1135 mm |
| Machine Length | 675 mm |
| Conveyor Length | 2400 mm |
| Conveyor Width | 380 mm |
Profile
| Maximum Loadable Profile Length | 2550 mm |
| Minimum Loadable Profile Length | 300 mm |
Electrical Technical Values
| Power Supply | 400V / 2kW |
Video
