OMRM 105

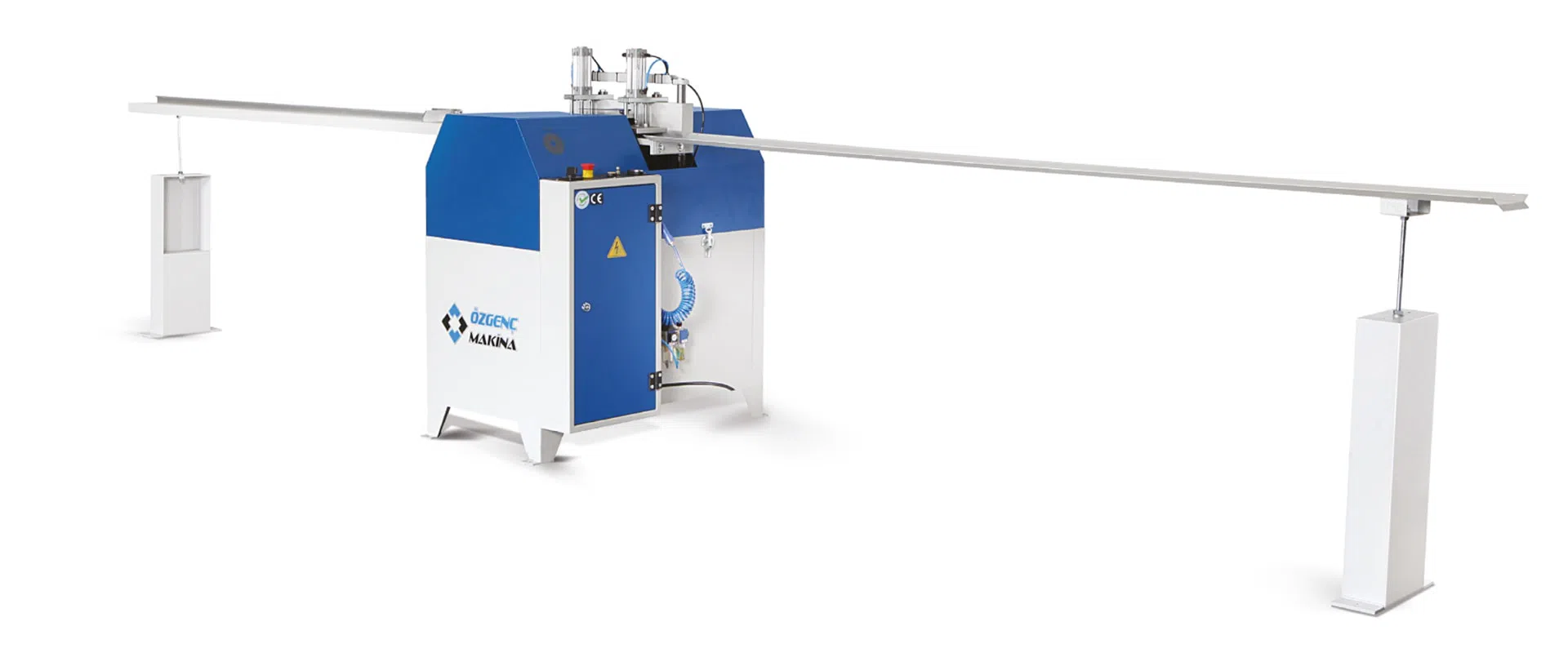

Automatic PVC Profile Glazing Bead Cutting Machine
Description
Designed for the PVC profile glazing beads cutting.
• Automatic cutting of glazing bead PVC profiles by 45°
• 4 HSS cutting saw blades
• Vertical pneumatic clamping system
• Setting handle for easy mold adjustment
• Double side cutting of glazing bead by 45° in one time
• Possibility to easily adjust the cutting speed with the regulator on the panel
• Equipped with conveyor system: left (with ruler) and right sides (2,4 m + 2,5 m)
Option:
• Portable mechanical caliper for quick measurements (2050 mm)
Documents

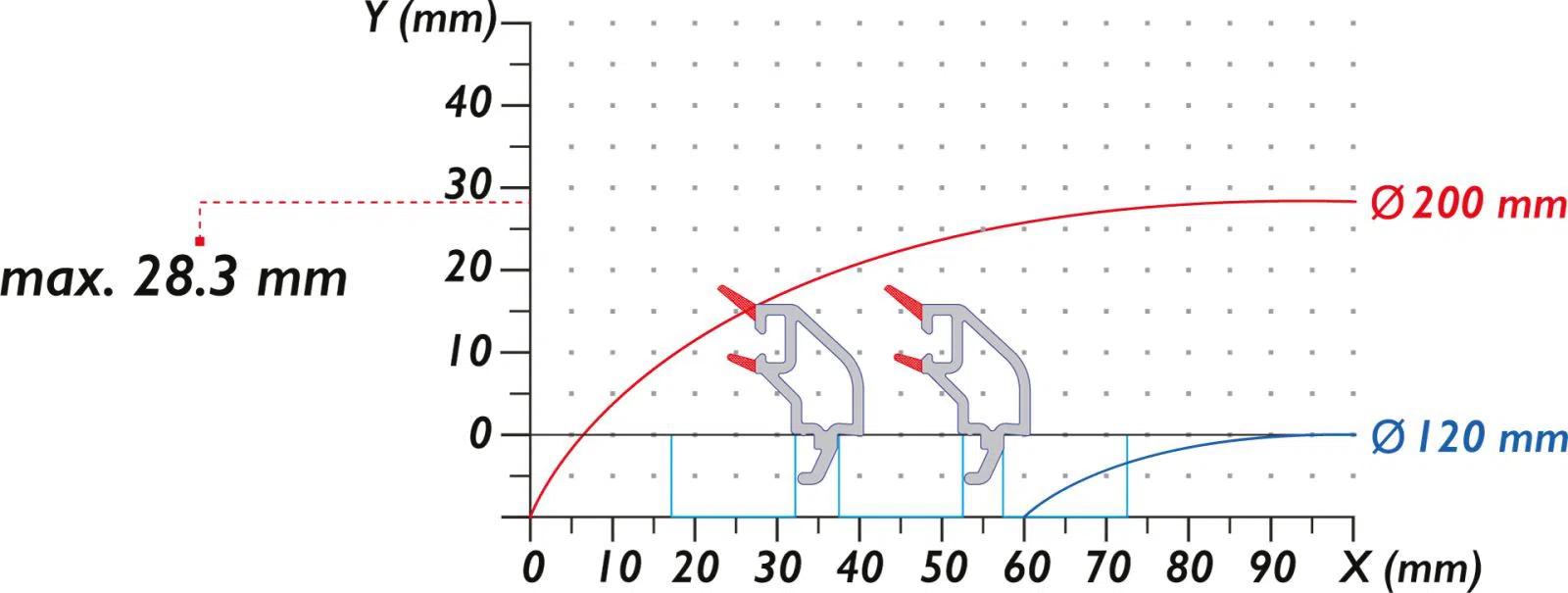

Diagrams
OMRM 105
Specifications
Profile
| Characteristic | 2550 mm |
| Machinable Min. Profile Length | 300 mm |
| Maximum Cuttable Profile Height | 28.3 mm |
Power
| Power Supply | - |
| Characteristic | 2 kW |
Air Consumption
| Air Pressure | - |
| Air Consumption | - |
Machine
| Characteristic | 5390 mm |
| Machine Width | - |
| Machine Height | 1230 mm |
| Machine Weight | 180 kg |
Cutting
| Saw Motor Quantity | - |
| Large Saw Diameter | Ø200 |
| Small Saw Diameter | Ø115 |
| Characteristic | 0,55 kW |
| Characteristic | 4 pieces (2 small, 2 large) |
