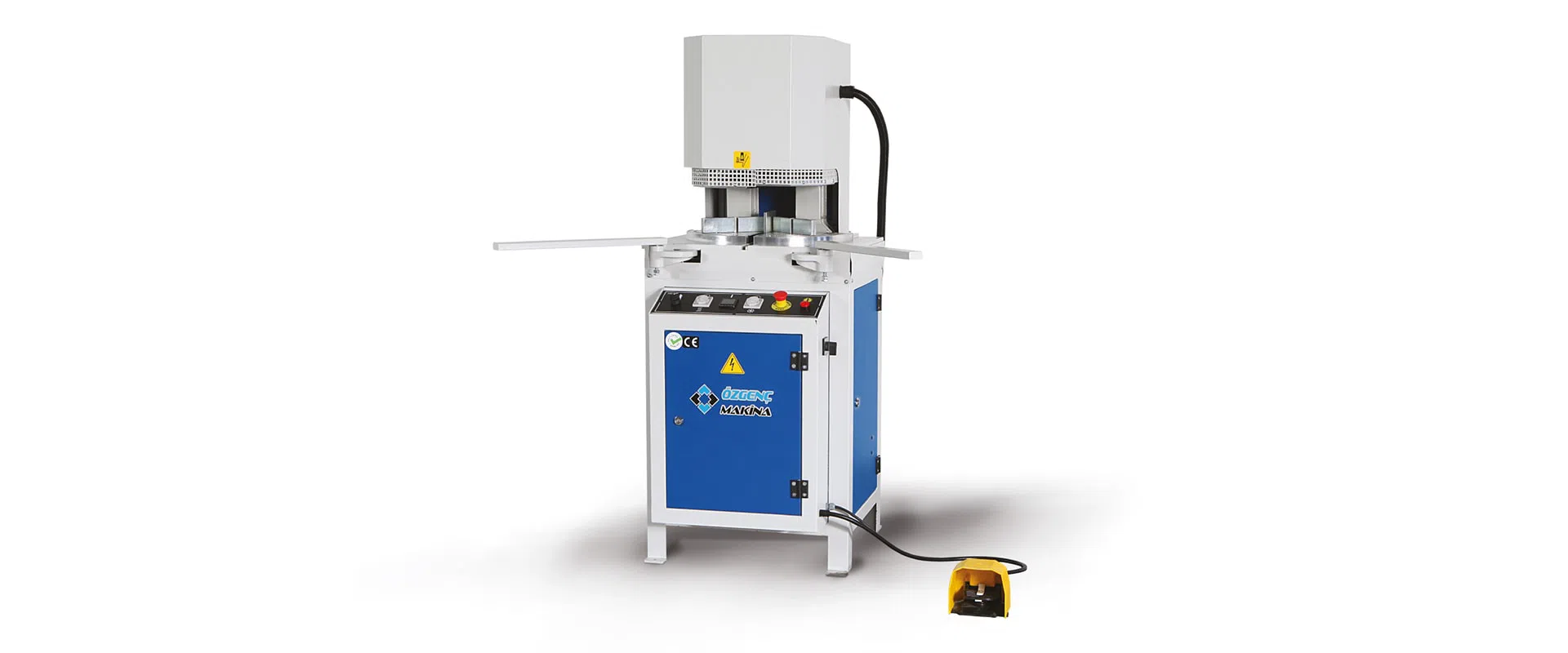

Automatic Single-Head PVC Profile Welding Machine
Description
• Fully automatic controlled
• Maximum welding strength
• Welding capability at angles between 20° and 180°
• Ability to clamp profiles individually with upper pistons
• Ability to weld with 2 mm / 0.2 mm using special jaw blades that limit welding burr/flash
• Adjustable profile support arms
• Practical profile clamping via pedal
• PLC control system
• Heating unit with thermostatic control
• Easy temperature adjustment from the digital display
• Ability to adjust temperature, welding time and pressure for different profile types
• Quick mold (die) change system to prevent time loss
Documents
Diagrams
OMRM 102B
Specifications
Electrical Technical Values
| Power Supply | 220V / 2,2kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 20 L/cycle |
Machine
| Machine Height | 1535 mm |
| Machine Width | 1010 mm |
| Machine Length | 625 mm |
| Machine Weight | 202 kg |
