OMR 119

CNC PVC Profile Corner Cleaning Machine (2 Axes)

CNC PVC Profile Corner Cleaning Machine (2 Axes)

Description

Designed to clean the corners of PVC profiles from welding seals.

• CNC control system (2 axes)

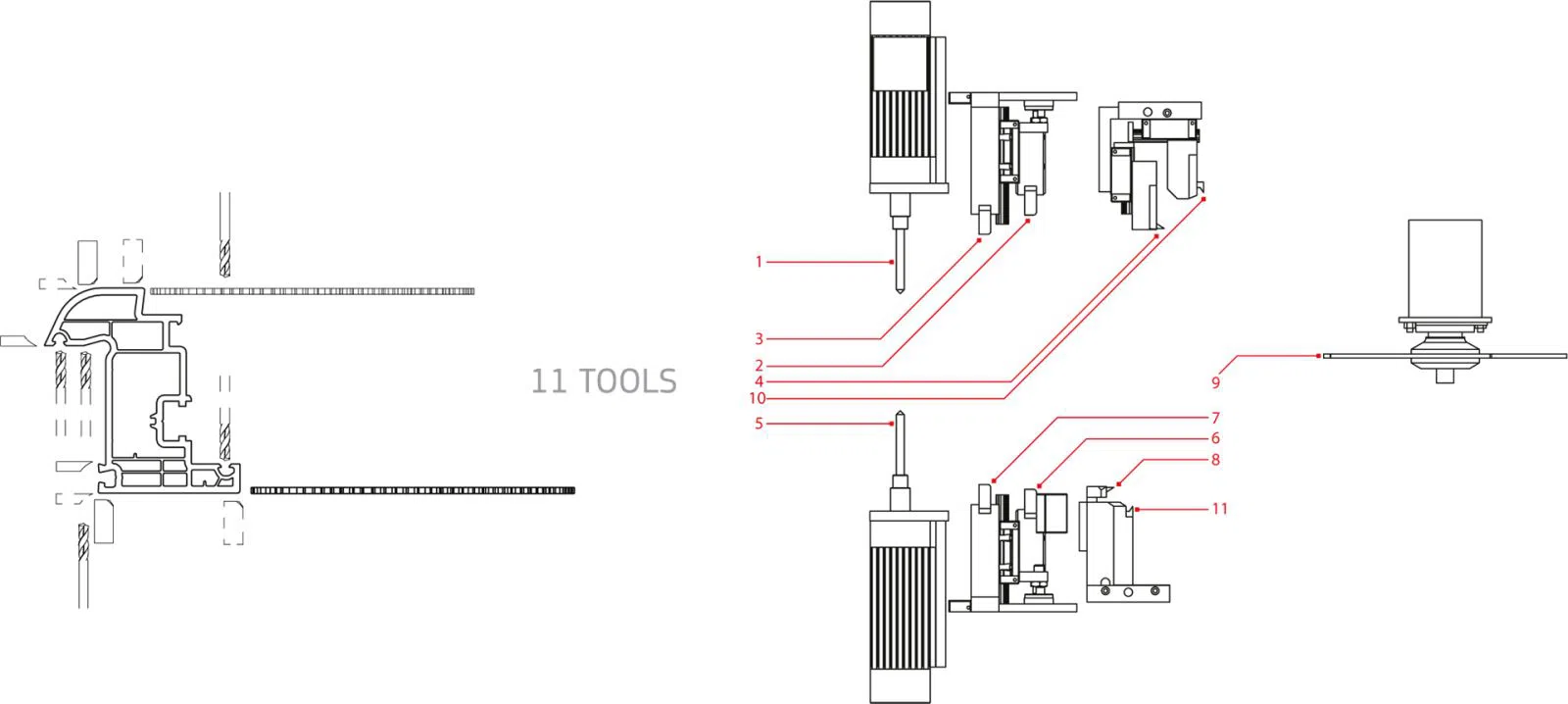

• High and standard quality with 11 cleaning tools
• Up & bottom gasket hole drills
• Up & bottom inner corner cleaning system
• Up & bottom color – white surface cleaning blade system
• Adjustment of operation speeds
• Multi language support
• Windows OS based control system with 21,5” screen
• Profile setup according profile drawings (DXF or DWG)
• Unlimited profile memory capacity
• Remote desktop support

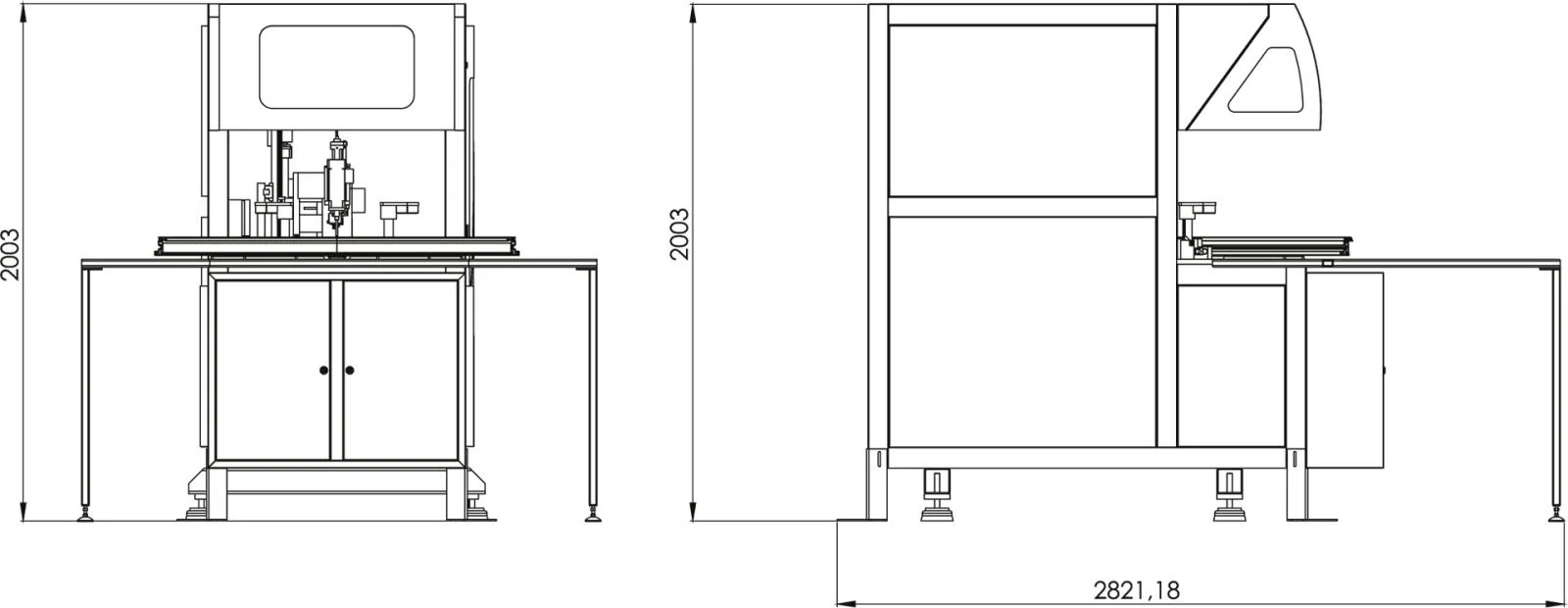

Diagrams

OMR 119

OMR 119

OMR 119

OMR 119

Specifications

Electrical Technical Values

Power Supply400V / 7kW / 15A

Air Consumption

Air Pressure6-8 Bar
Air Consumption102 L/cycle

Machine

Machine Weight865 kg
Machine Height2040 mm
Machine Width3000 mm
Machine Length2500 mm

Cutting

Maximum Cuttable Profile Height190 mm
Maximum Cuttable Profile Width120 mm
Minimum Cuttable Profile Height40 mm

Frame Dimensions

Minimum Height350 mm
Minimum Width350 mm
