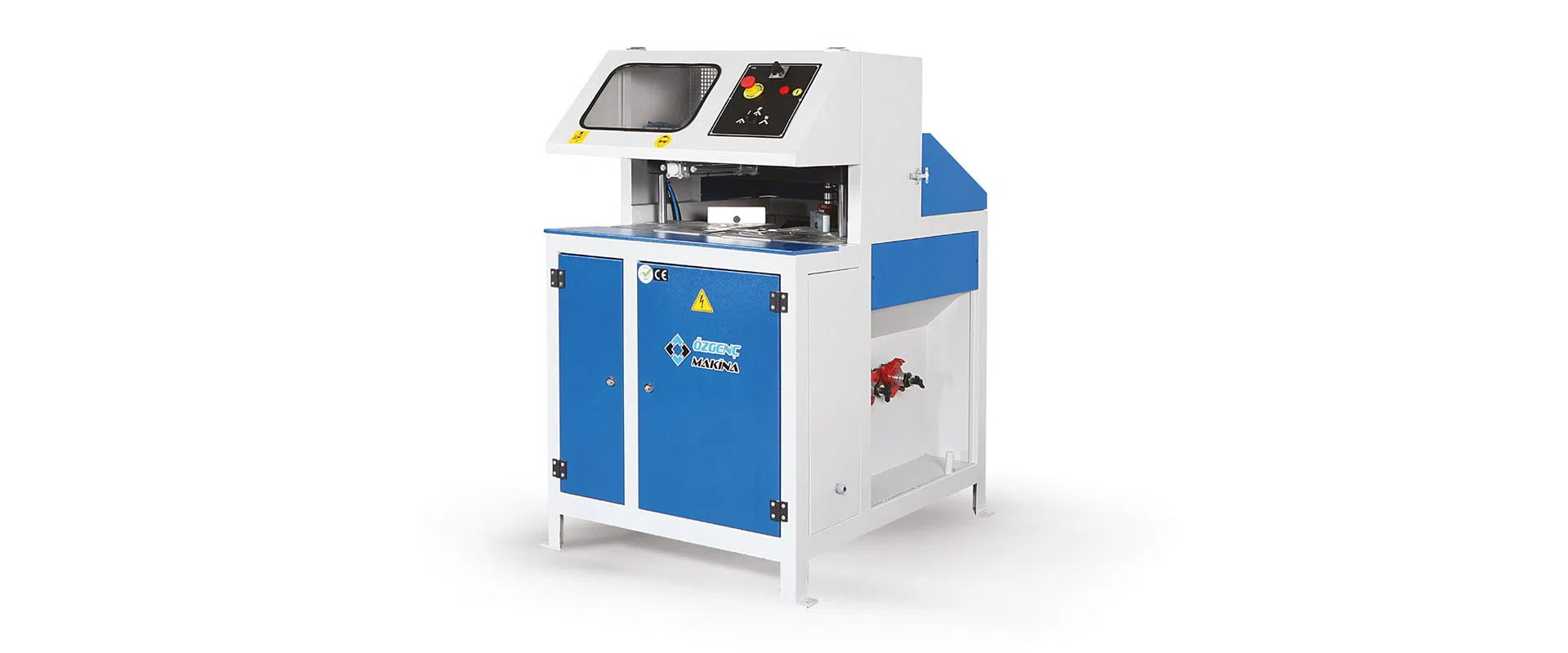

Automatic PVC Profile Corner Cleaning Machine ( Easy Blade Changing )

Description
Designed to clean the corners of PVC profiles from welding seals.
• Fast blade changing system
• Cutters remove the welding seals on the upper and lower sides and on the external angle at once or separately
• Profile centering system is available for smooth cleaning of corners
• Motor movement and surface cleaning speeds are adjustable
• Adjustable depth of cleaning for cutters
• Automatic start by profile insertion
• Special shape of a working plate allows to process small frames
• Internal lightning
• 4 items of cutter holders
• Special storage section for milling cutter holders
• PLC control system
Documents

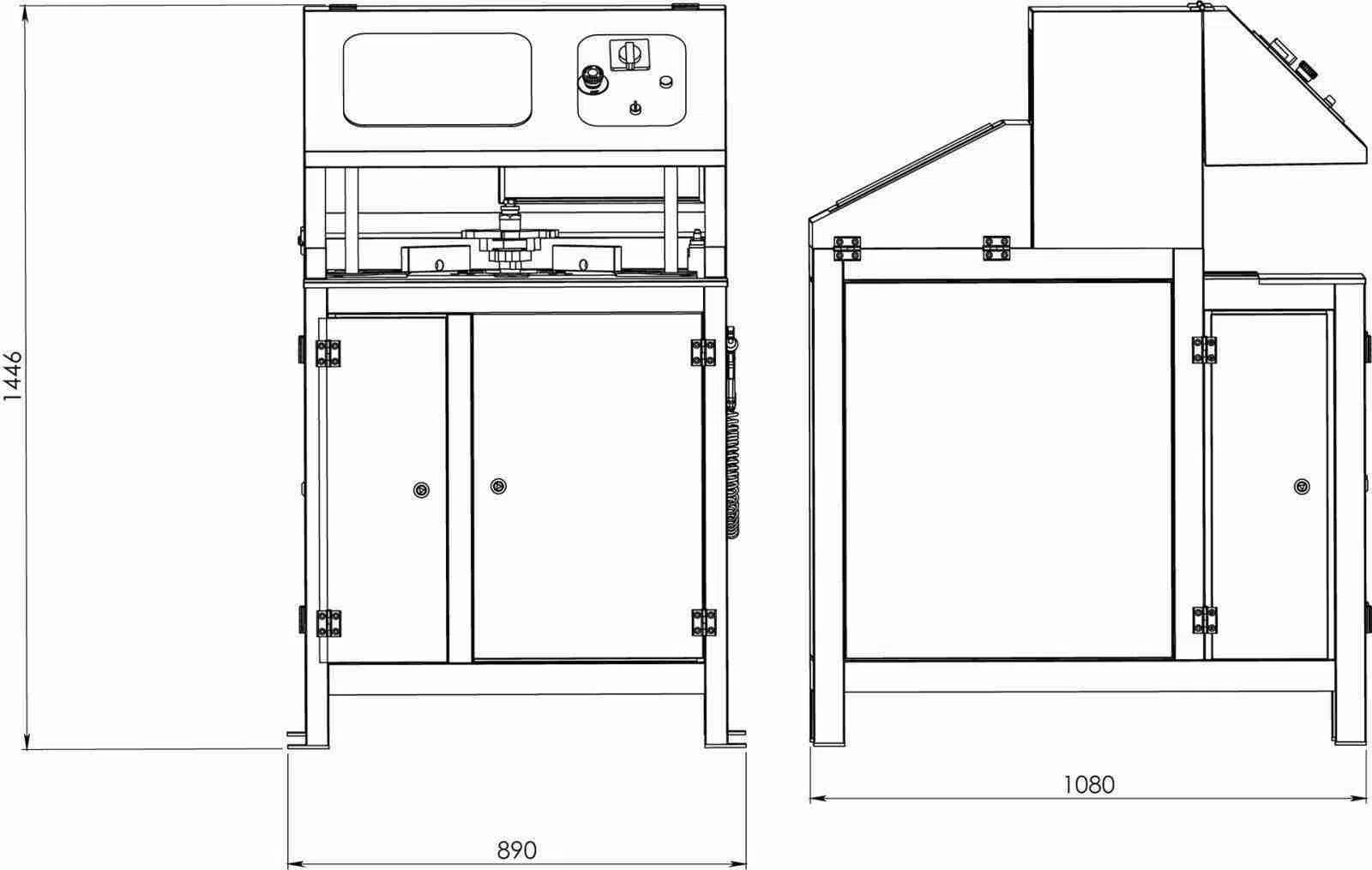

Diagrams

OMR 114
Specifications
Cutting
| Maximum Cuttable Profile Width | 110 mm |
| Maximum Cuttable Profile Height | 180 mm |
| Minimum Cuttable Profile Height | 40 mm |
Cleanable Corner Dimensions
| Height | 0,3 mm |
| Length | 3 mm |
Electrical Technical Values
| Power Supply | 400V / 2kW / 4,2A |
Power
| Motor Power | 50Hz / 2810 rpm / 1,1kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 14 L/min |
Machine
| Machine Weight | 270 kg |
| Machine Height | 1446 mm |
| Machine Width | 1080 mm |
| Machine Length | 890 mm |
Blade Specifications
| Blade Diameter | 160 mm |
| Maximum Blade Height | 135 mm |
| Blade Bore Diameter | 32 mm |
