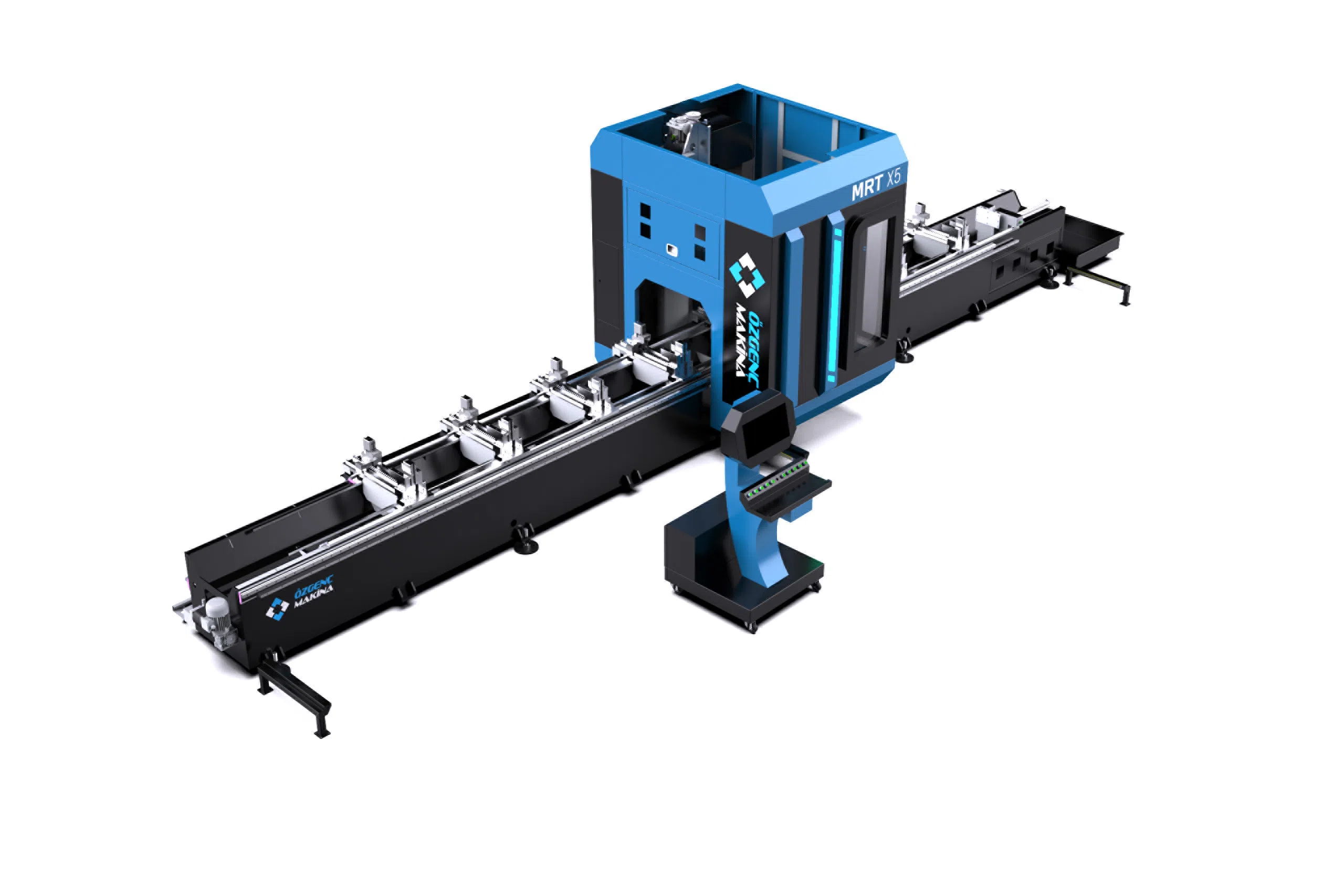

5 AXIS CNC Machining Center

• Performs milling, slotting, drilling, thread tapping (optional), countersinking and cutting
operations with high precision
• Capability to machine five surfaces on five axes
• HITECO five-axis ten kilowatt tool holder standard F sixty-three water-cooled spindle
• Eight automatic positioning machine vices
• Tool holder standard system with tool holder cleaning mechanism
• Tool magazine capacity: eight tools plus tool-changing spindle motor with five hundred
millimeter diameter saw
• Integrated liquid cooling tool system
• Ability to clamp workpieces up to six hundred millimeters on the Y axis
• Five-axis compatible Syntech control unit
• Ability to perform cutting at any desired angle between zero degrees and one hundred eighty degrees
• Machinable profile cross-section: six hundred by three hundred millimeters for machining, five
hundred by two hundred millimeters for ninety-degree cutting
• Profile machining length: seven thousand millimeters
• Cutting tool cooling system
• Wireless network connected manual handwheel
• Windows ten personal computer interface with twenty-one inch display
• Compatible with numerical control extension software
• Operates using geometric code
• Data transfer via universal serial bus and Ethernet connection
• Uninterruptible power supply system allowing continuation after power interruption
• Recovery function that moves the spindle to a safe zone
• Machining length can be changed to the desired measurement (optional)
