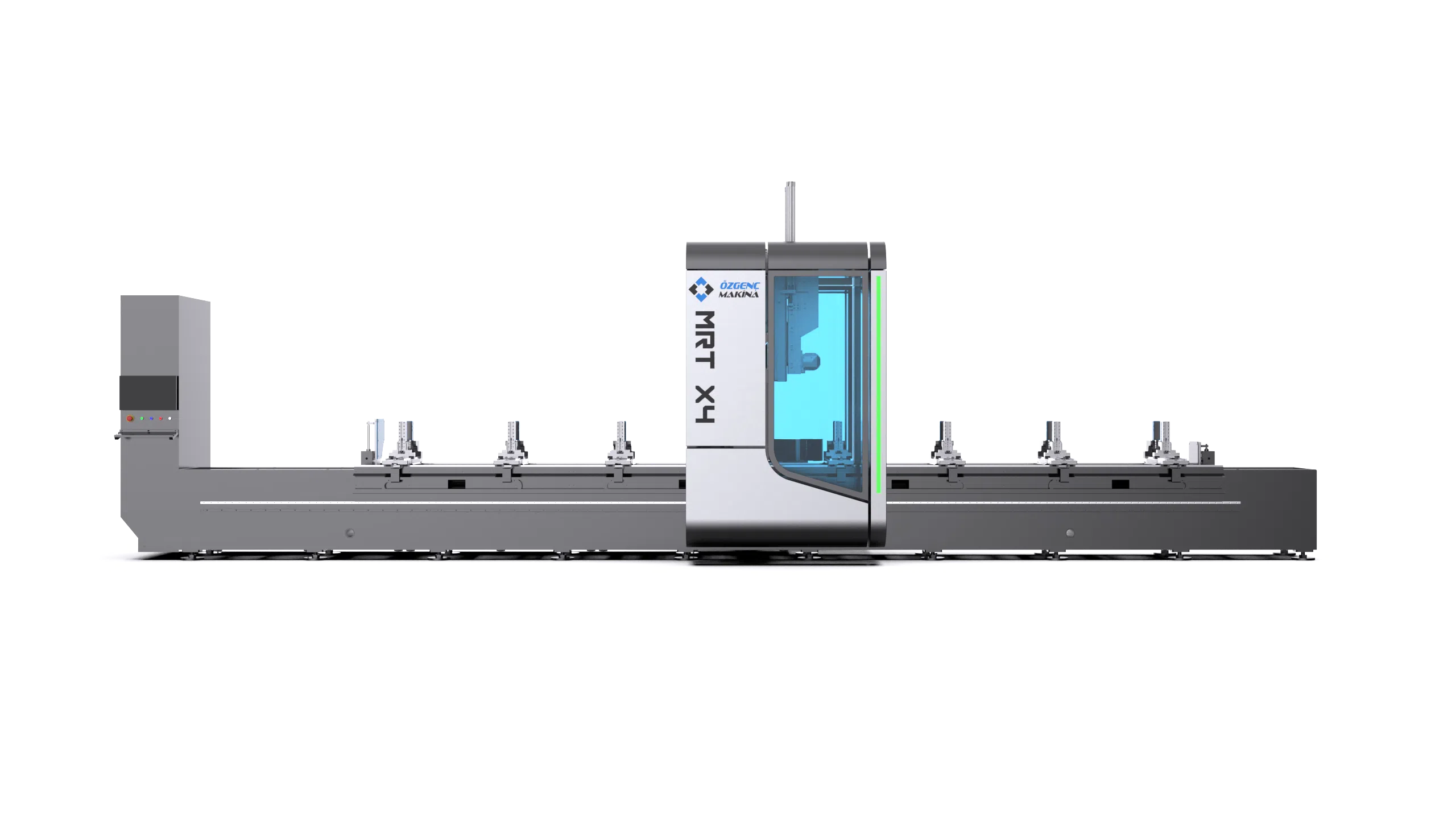

CNC Machining Center (4-Axis)
Description
• Capability to machine 3 faces on 4 axes
• High-precision milling, drilling, cutting, tapping, countersinking and sawing operations
• 8 automatic positioning vices
• HSK tool holder and tool holder cleaning system
• Magazine capacity: 8 tools + tool-changing spindle motor + Ø500 mm saw
• ILC tool cooling system
• Can clamp parts up to 630 mm on the Y-axis
• FAGOR 8070 control unit compatible with 4-axis machining
• Machinable profile section size: 400 × 400 mm
• Profile machining length: 7000 mm
• Cutting tool cooling system
• Wi-Fi handwheel
• Windows 10 PC interface, 21” screen
• Compatible with NCX-extension software
• Operates with G-code
• Data transfer via USB and Ethernet
• With UPS system, can continue from where it left off in case of power outage
• Recovery function that moves the spindle to a safe zone
• Machining length can be changed to the desired size; optional
Documents
Diagrams

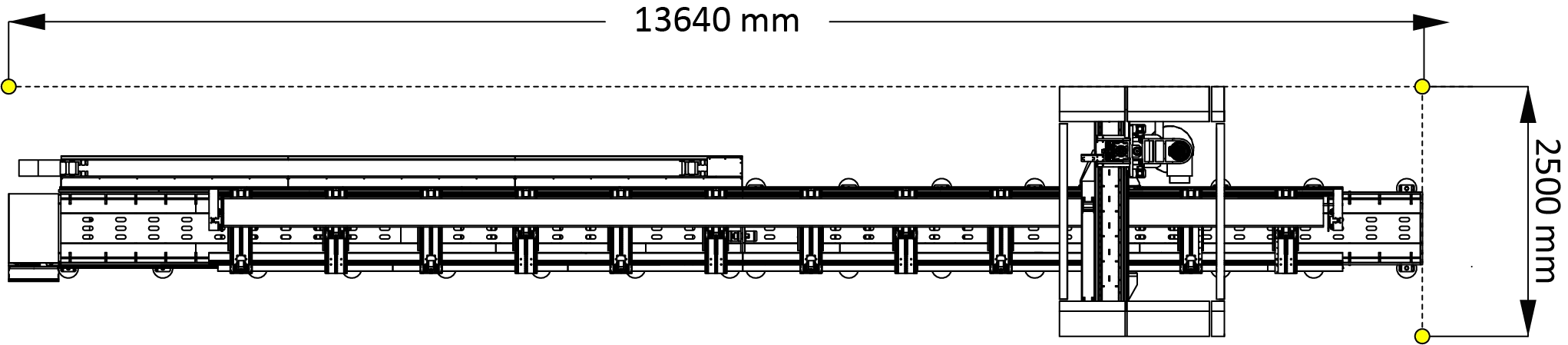

MRT X4

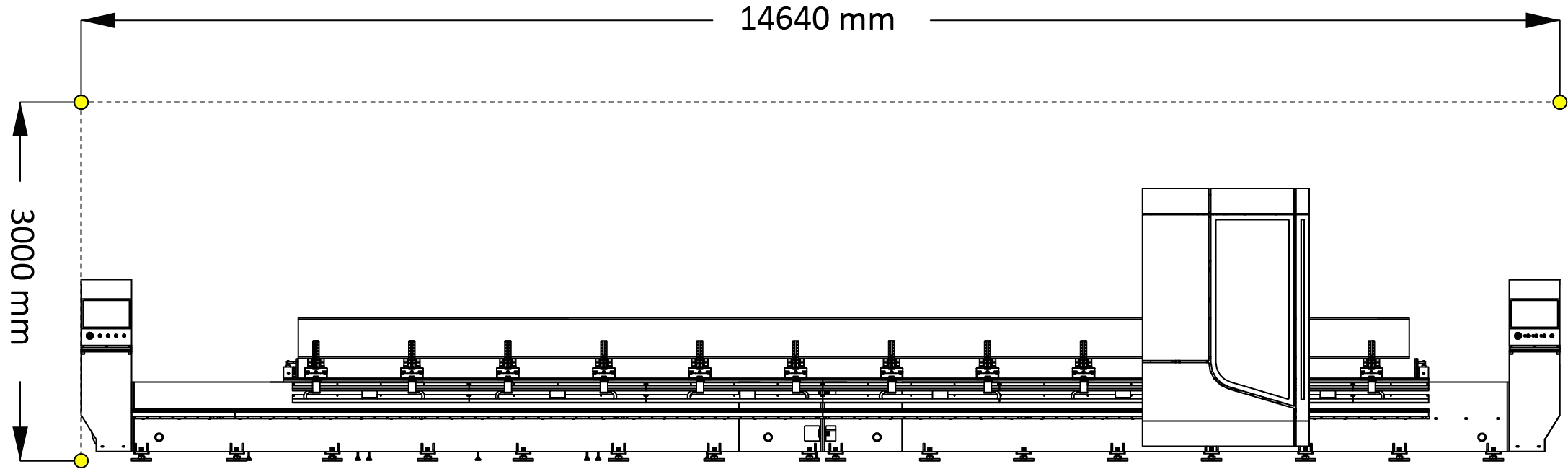

MRT X4
Specifications
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 110 lt/min |
Electrical Technical Values
| Power Supply | 400V / 25 kW |
Machine
| Machine Weight | 9000 kg |
| Machine Height | 3550 mm |
| Machine Width | 2500 mm |
| Machine Length | 14640 mm |
Cutting
| Maximum Cuttable Profile Width | 400 mm |
| Maximum Cuttable Profile Height | 400 mm |
Profile
| Maximum Loadable Profile Length | 7000 mm |
| Minimum Loadable Profile Length | 630 mm |
Power
| Spindle Motor | 15-18kW / 24000 rpm |
