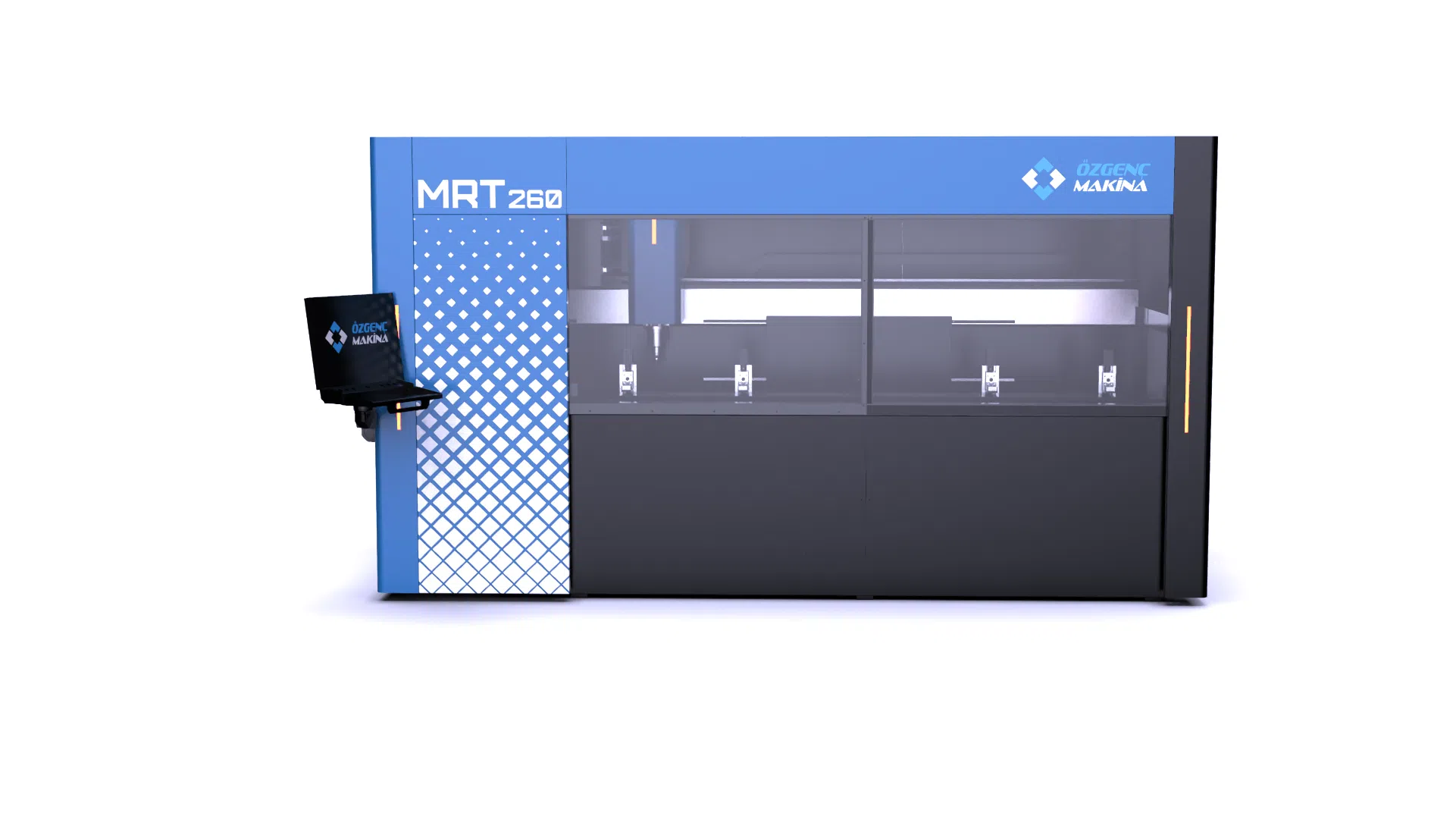

Aluminum Profile Machining Center (4 Axes)
Description
Aluminum Profile Machining Center (4 Axes)
• CNC machining center with compact design, capable of movement on X-Y-Z-A axes
• Spindle motor operating on the angular axis
• HSD brand 7.5 kW 24,000 rpm spindle
• Interpolation machining on all axes between 0° - 180° (simultaneous operation)
• 4 vises and a 3+1 tool-holder magazine (standard model)
• ISO 30 tool holder
• Syntec control unit
• User-friendly interface (UNILINK)
• Compatible with CAD-CAM software
• Wired handwheel
• Absolute motor system
• A-axis Liming reducer accuracy of 5 arcimin
• Automatic lubrication system
• Cooling system
• Remote connection for fault diagnosis and service capability
Option:
• Barcode reader
Diagrams

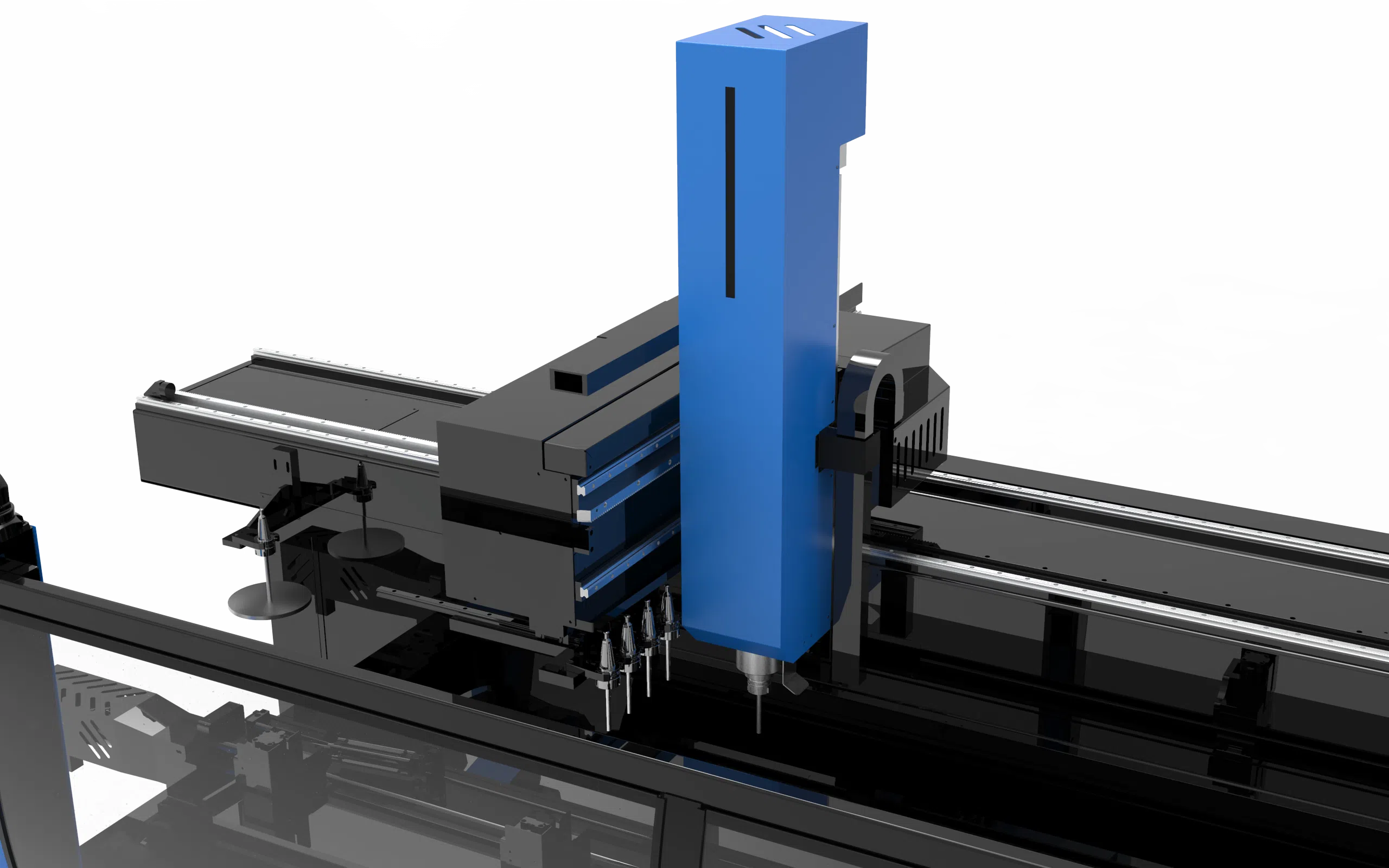

MRT 260

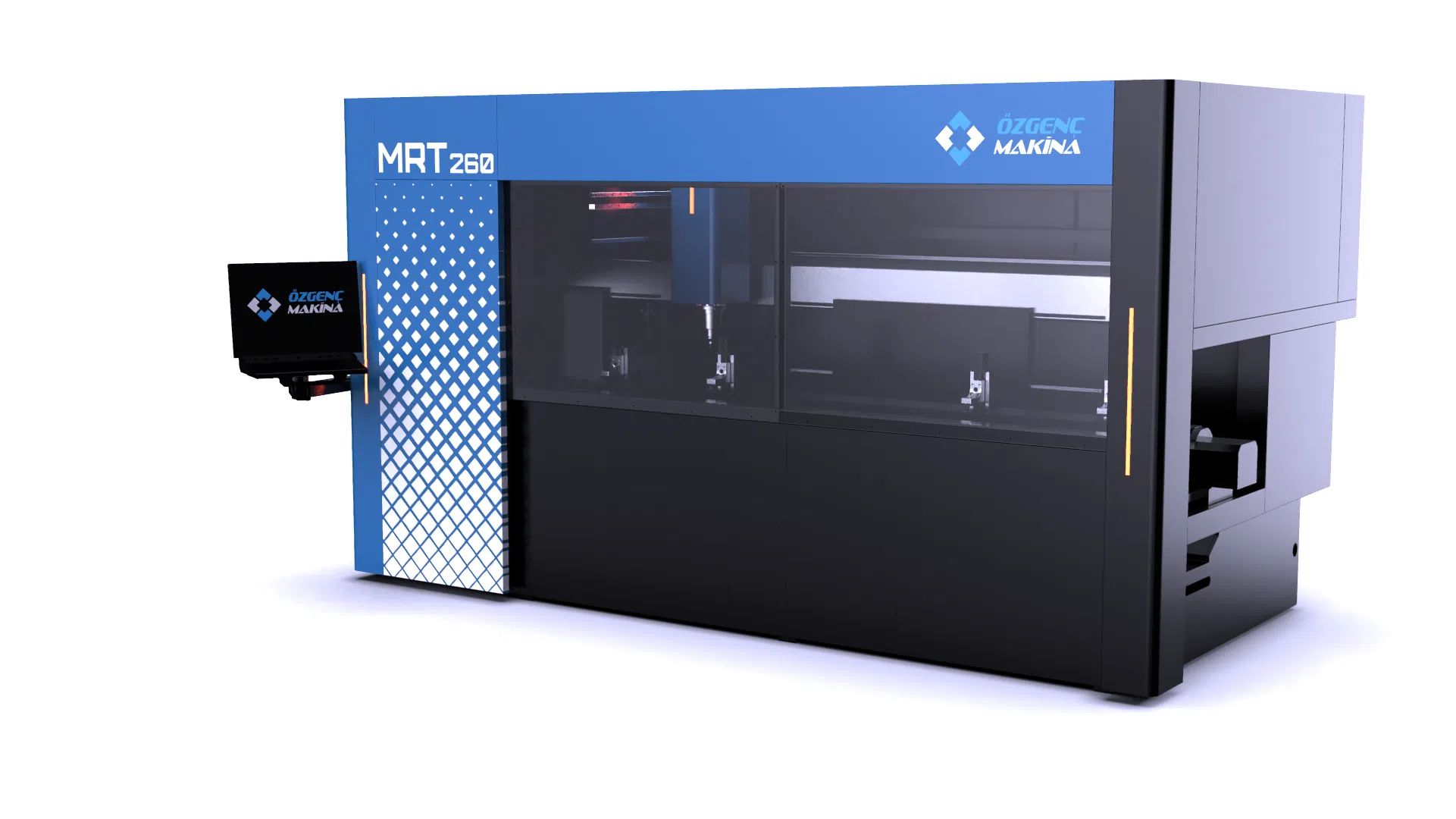

MRT 260

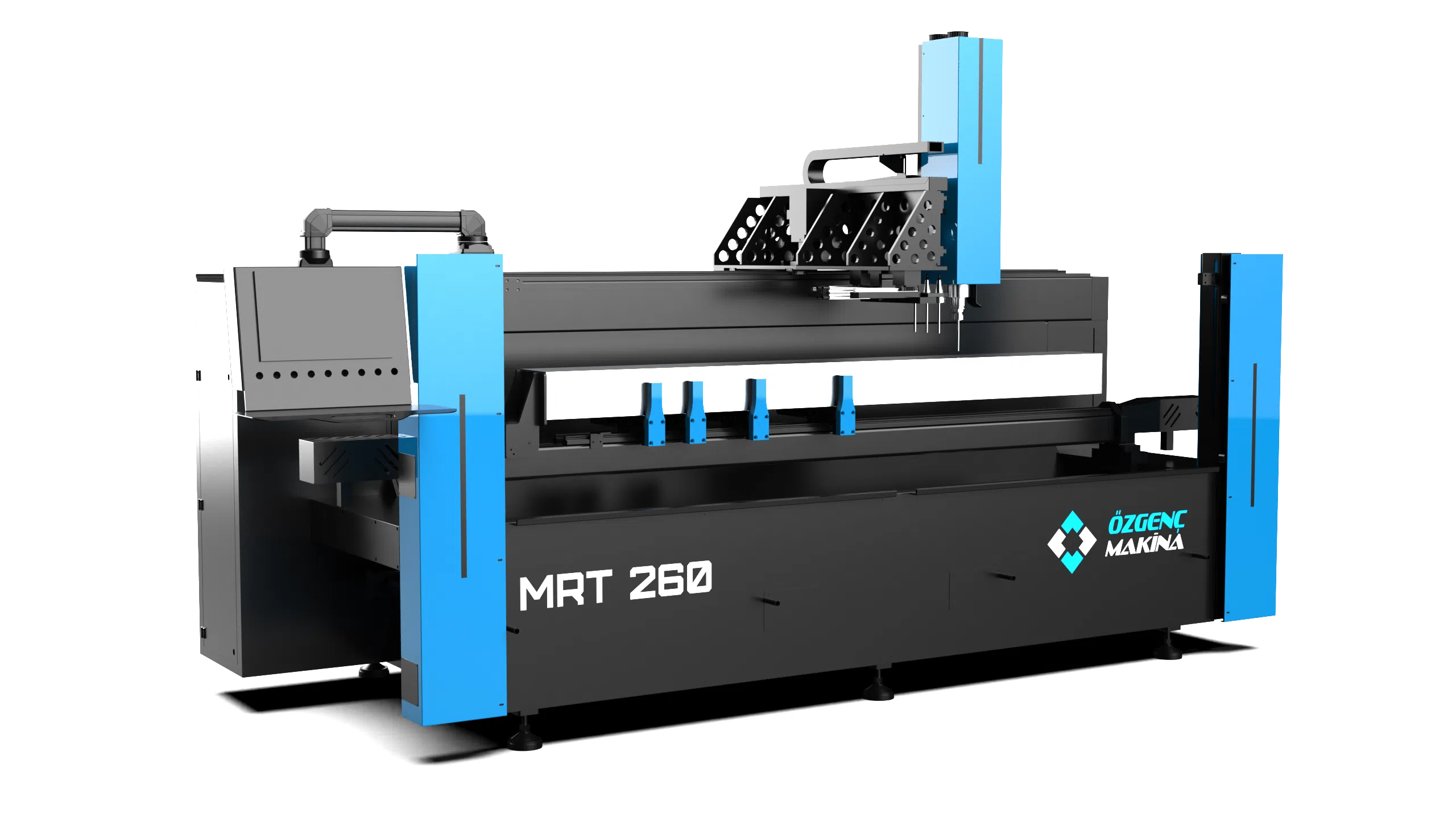

MRT 260
Specifications
Electrical Technical Values
| Total Power | 400 V / 40 A / 15 kW |
Machine
| Machine Width | - |
| Machine Weight | 2800 kg |
| Machine Height | 2300 mm |
| Machine Length | 4500 mm |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 150 lt/dk |
Profile
| Maximum Machinable Profile Height | 170 mm |
| Maximum Machinable Profile Length | 2600 mm |
| Maximum Machinable Profile Width | 180 mm |
