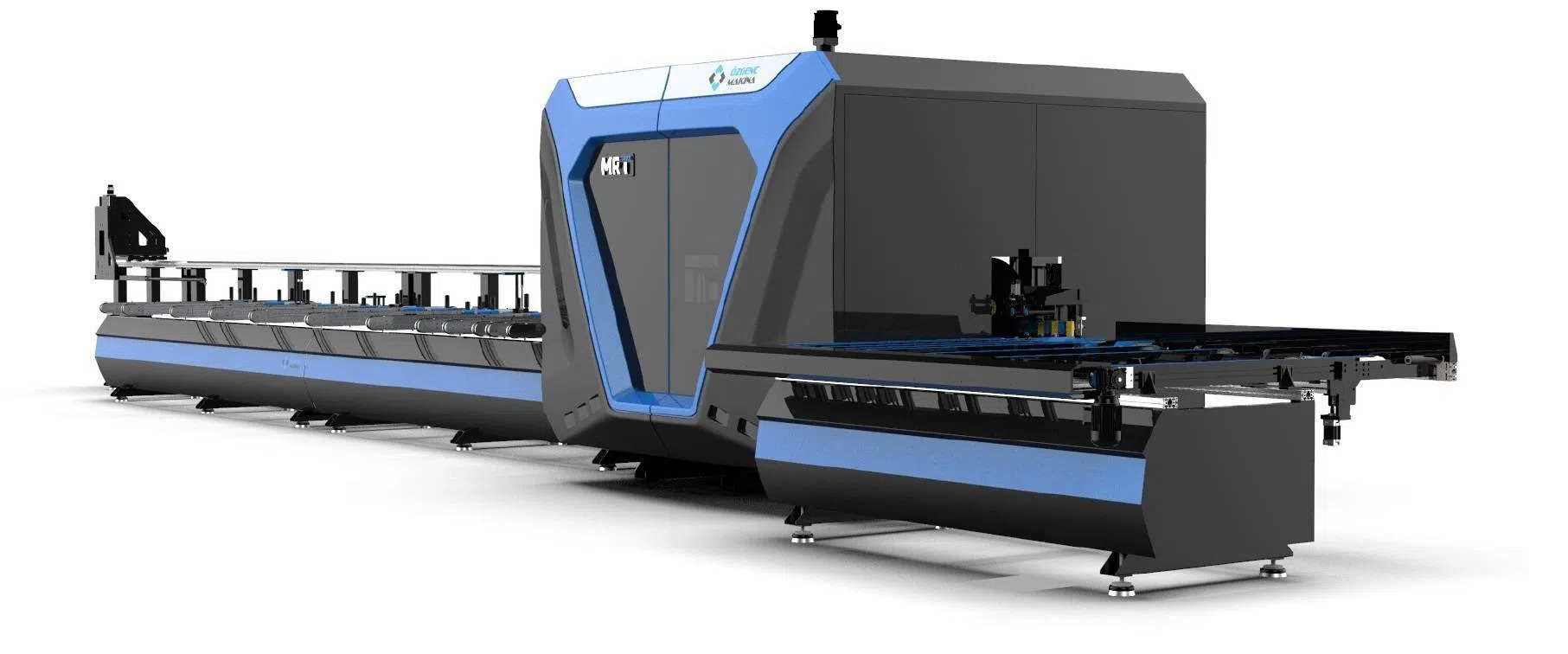

Aluminium Profile Cutting and Machining Center

• Compatible with all joinery and optimization programs
• Milling unit that enables processing on four surfaces of the profile
• Profile vertical alignment system
• Support system for special profiles
• Movable clamping units that can easily drive heavy profiles and increase processing precision
• 12 milling units of 2.2 kW each
• Special clamping units that completely surround the profile and prevent its free movement inside the machine
• Capability to cut short profiles with movable output unit
• Windows OS based control system with 21.5” screen
• Automatic profile length detection feature that allows gripper to catch profile without wasting time
• Capability of capturing all kinds of profiles at any desired angle with 3 axes and 360° rotating gripper arm
• Top and horizontal saws with 3 axes 180° degree rotation movement

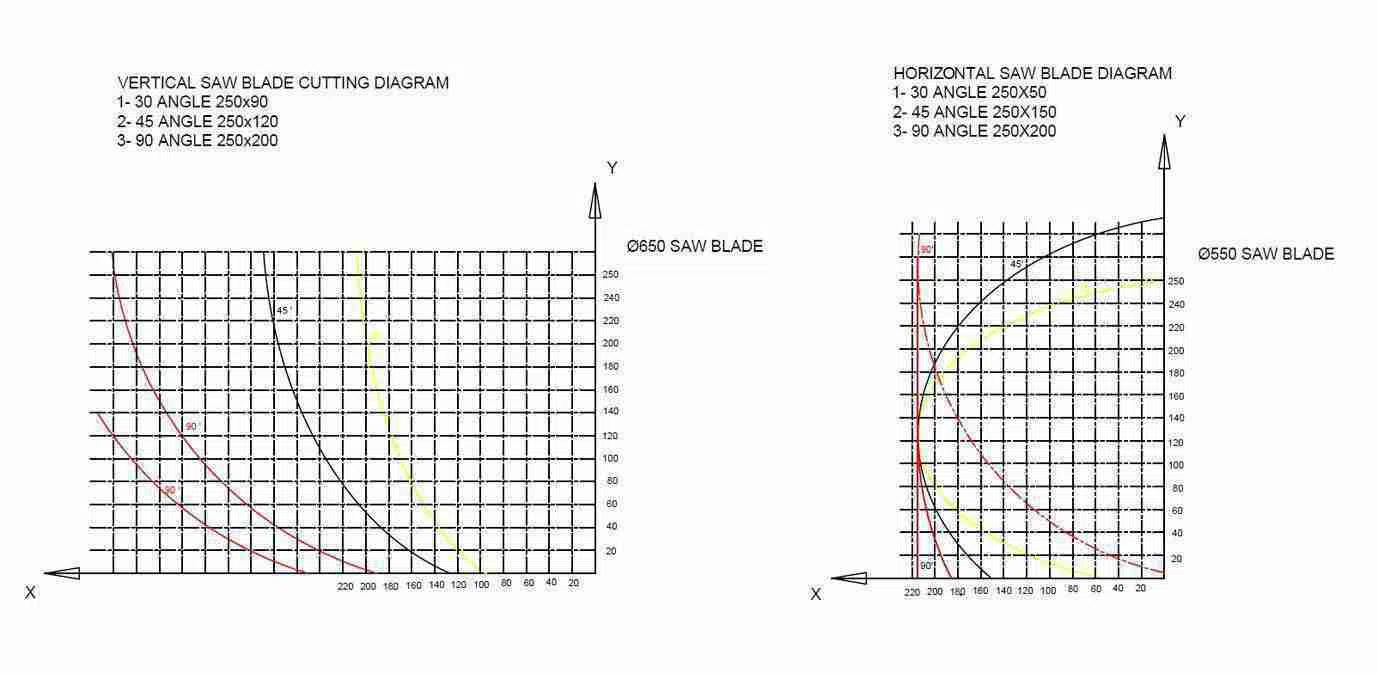

• Ø650 mm upper saw and Ø500/550 mm back horizontal saw with belt transmission each
• Ability to perform all kinds of facade notching operations on aluminum profiles
• Minimised vibration during machining and more precise and clean machining with milling units fixed to the body with double rails
• Stainless machine surfaces that prevent the profiles from being scratched
• Trouble shooting and service opportunity with remote connection
• 6 profiles capacity feeding table
• Unlimited profile memory capacity
• Servo motor control on all axes
• Ability to send processing files generated by window and door design software to the machine via USB \ wireless and wired network
• Label printing for every workpiece (including useful waste)
• Industry 4.0 compatible (processing speed, cutting reports etc.)
• Designing labels and barcodes as desired
• Automatic lubrication system
• Automatic cooling system
