HD 200 CW

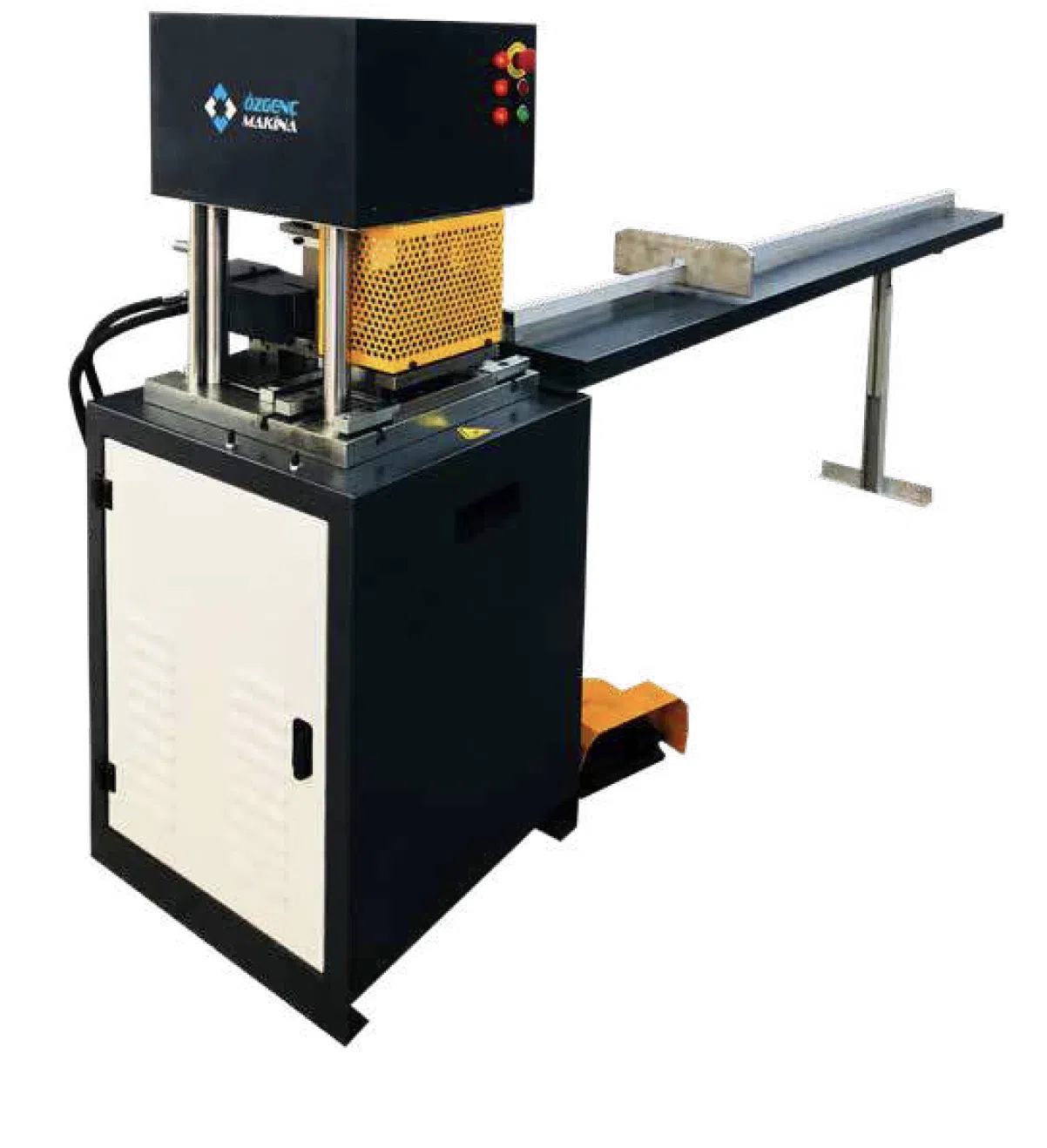

Hydraulic Punch Press for Support Plate
Description
• Drilling of handle barrel holes on the support plate
• Length cutting operation of the support plate
• Cutting and punching operations with hydraulic system
• Cutting dies that can vary according to the support plate dimensions
• Special die for different support plate forms
• Maximum support plate thickness: 3 mm
• Practical operation with foot pedal
Documents
Specifications
Power
| Power Supply | 300 V / 50 A / 3 kW / 50 Hz |
| Electric Motor | 50 Hz / 1400 rpm / 3 kW |
Pressure
| Static Pressure | 18 MPa / 180 Bar |
| Dynamic Pressure | 15 MPa / 150 Bar |
Punching Force
| Punching Force (150 bar) | 12 Ton / 117 kN |
| Maximum Punching Force (180 bar) | 14 Ton / 138 kN |
Cutting
| Maximum Support Sheet Cutting Thickness | - |
Machine
| Machine Weight | 460 kg |
| Machine Height | - |
| Machine Width | 3150 mm |
| Maschinentiefe | 800 mm |
