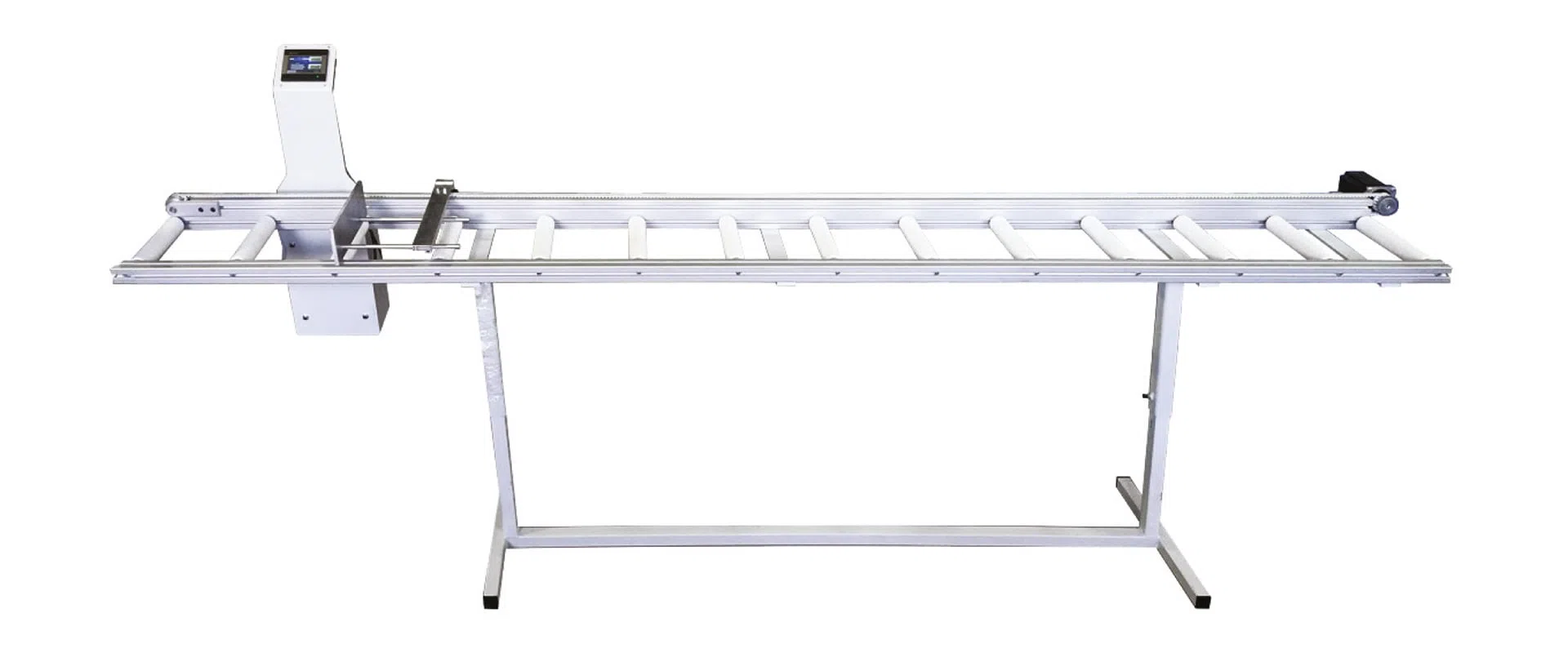

Aluminium Digital Profile Measuring Table

The DC400 digital conveyor is appended to the right side of the cutting machines to provide an easier cutting process. Simply entering the length to the touchscreen the measurement block will move to the requested position.After entering a cutting list one time the cutting procedure will automatically go to next step after each cut is made.

• 0,1 mm measurement accuracy
• 3 meters long
• Touchscreen
• Measuring support can move back after each
cutting for easy remove the cutted profile
• Can be prepared as right or left sided

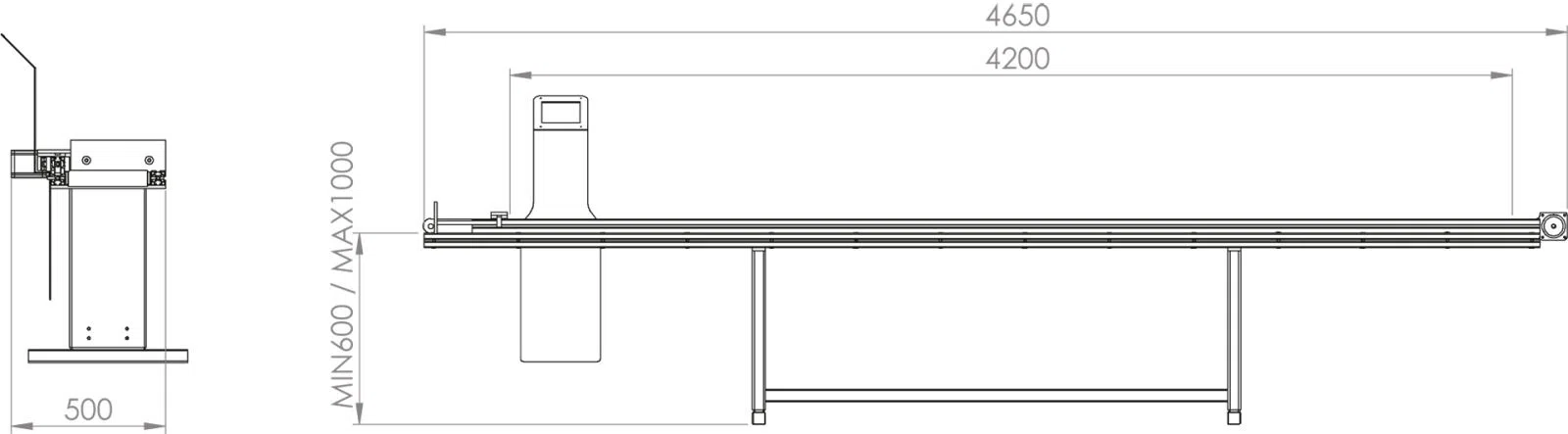

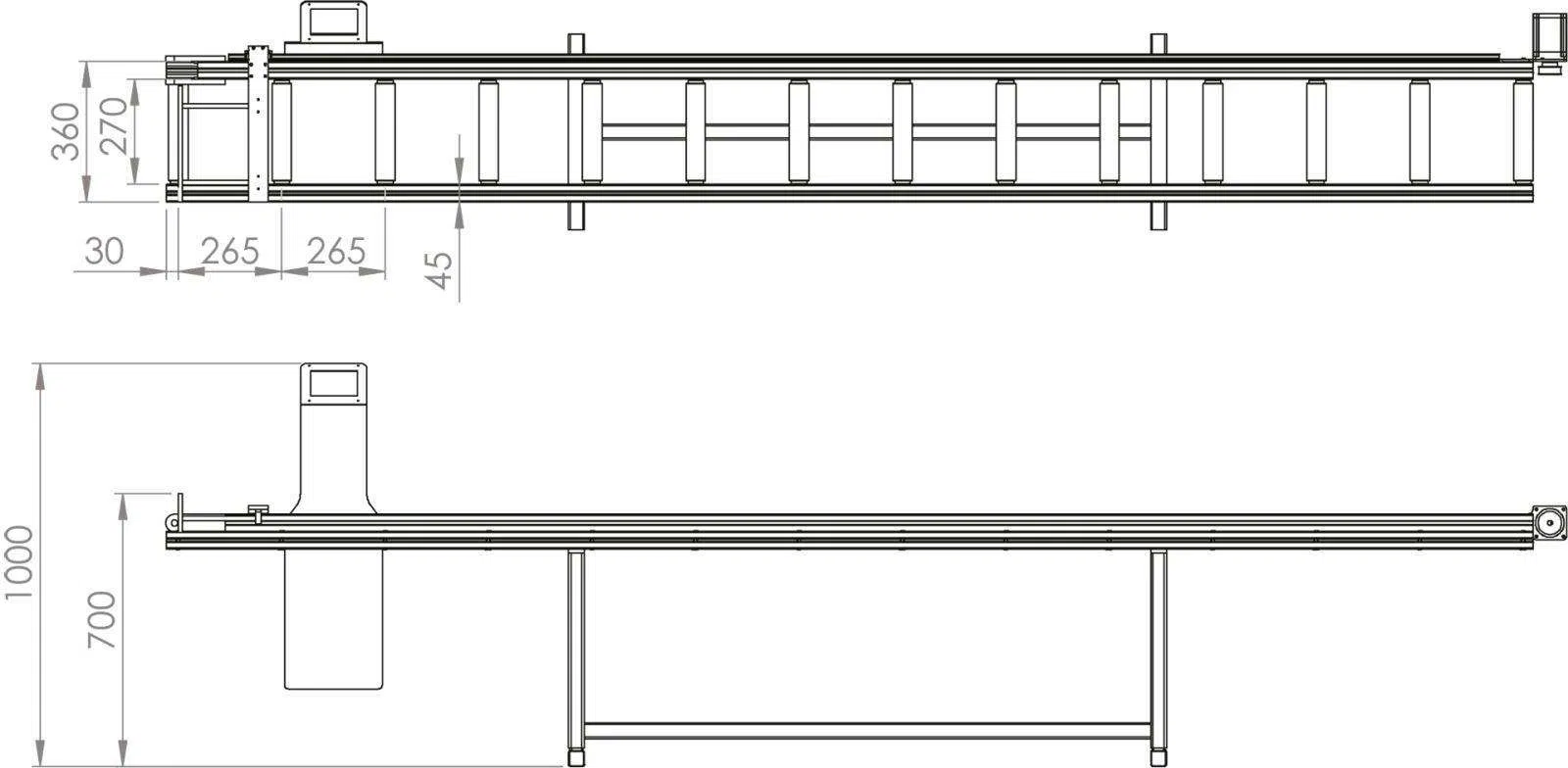

Sizes:
• 3.650 mm (Max. cutting length 3200mm)
• 4.650 mm (Max. cutting length 4200mm)
• 5.650 mm (Max. cutting length 5200mm)
• 6.650 mm (Max. cutting length 6200mm)
