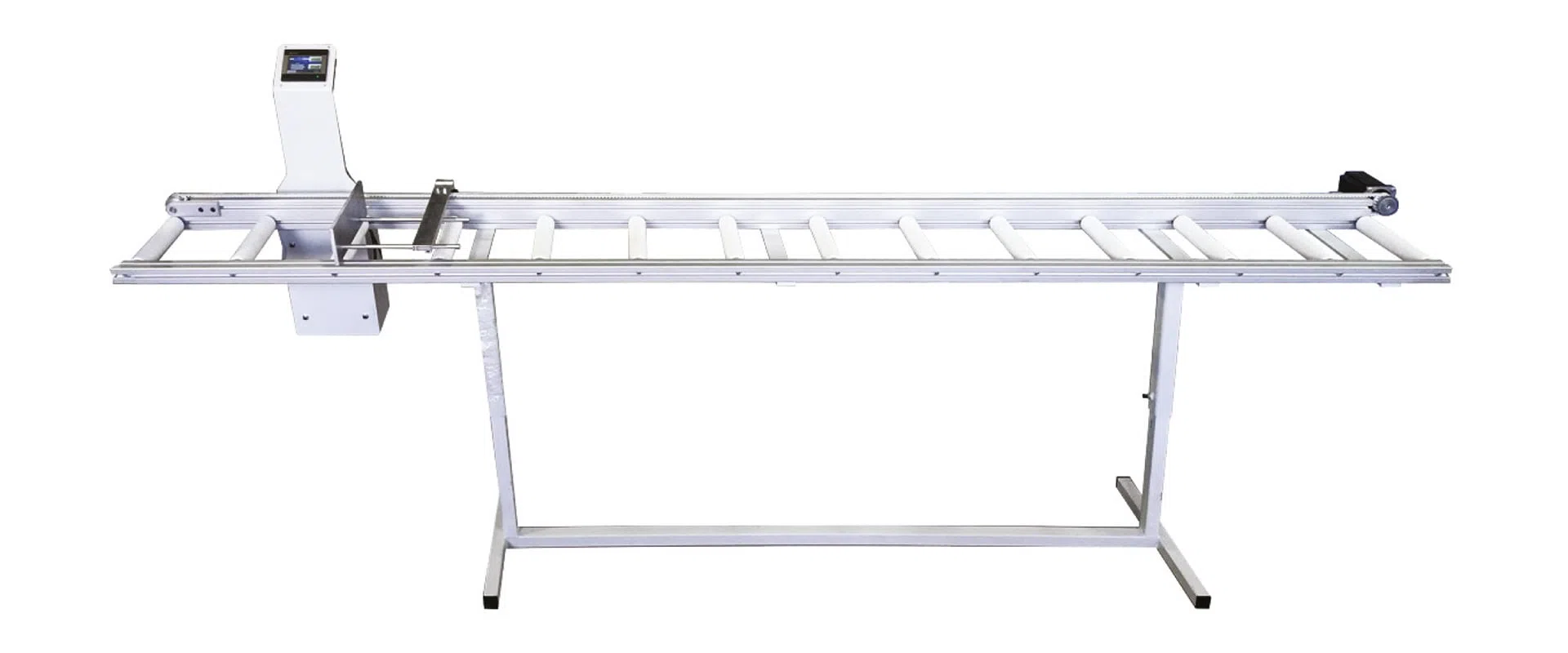

Digital Measuring Conveyor
Description
The DC 400 digital conveyor is appended to the right side of the cutting machines to provide an easier cutting process. Simply entering the length to the touchscreen the measurement block will move to the requested position. After entering a cutting list one time the cutting procedure will automatically go to next step after each cut is made.
• 0.1 mm measurement accuracy
• 3 meters long
• Touchscreen
• Measuring support can move back after each cutting for easy remove the cutted profile
• Can be prepared as right or left sided
Sizes:
• 3650 mm (Max. cutting length 3200 mm)
• 4650 mm (Max. cutting length 4200 mm)
• 5650 mm (Max. cutting length 5200 mm)
• 6650 mm (Max. cutting length 6200 mm)
Documents

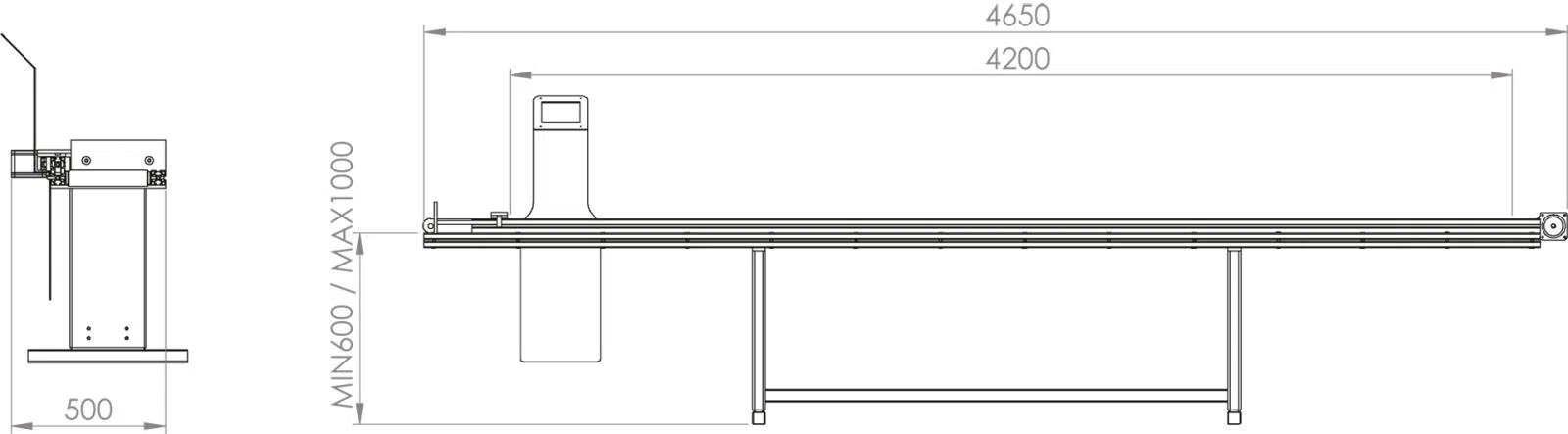

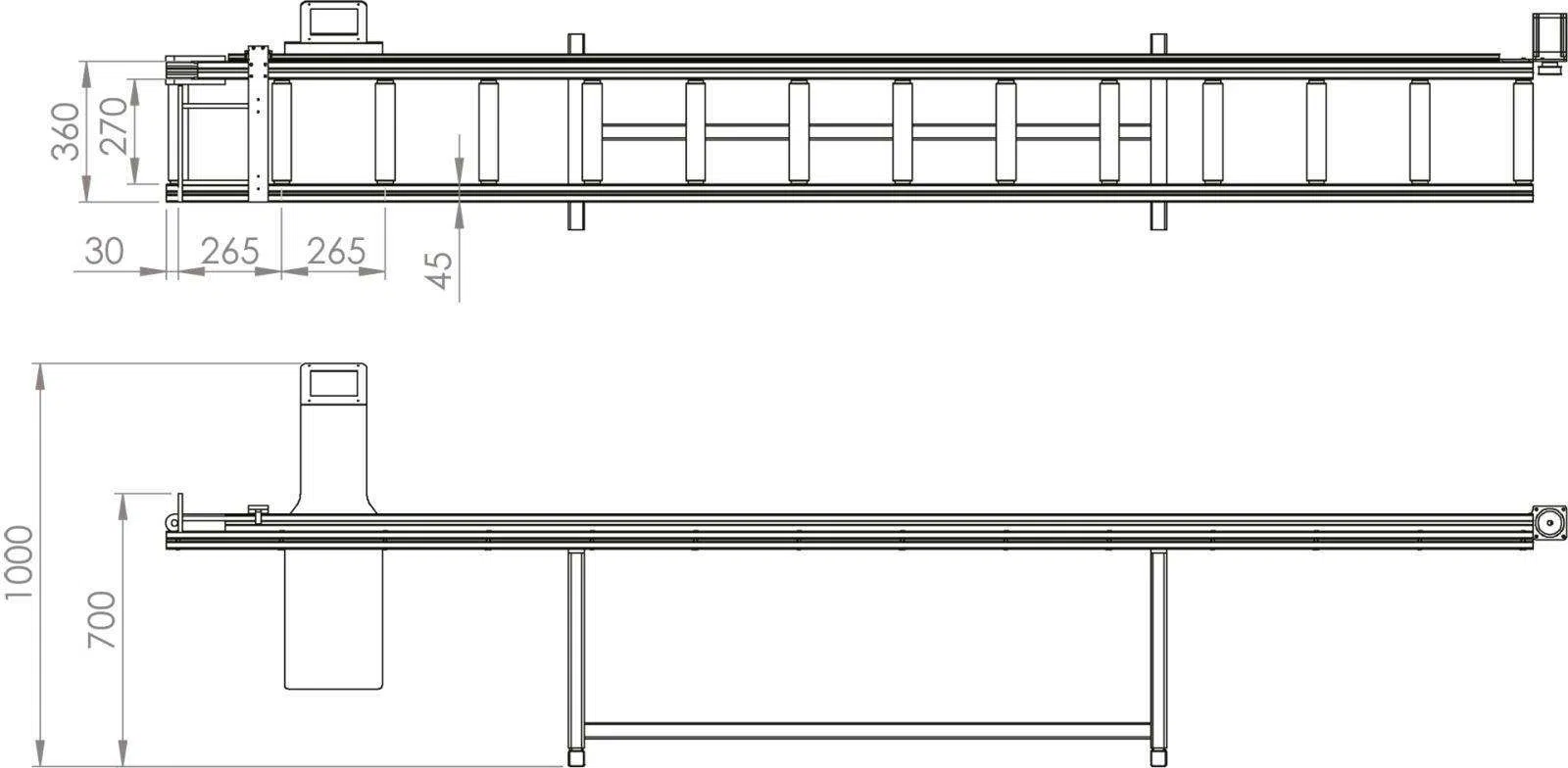

Diagrams
DC 400
DC 400
Specifications
Profile
| Minimum Loadable Profile Length | 5 mm |
| Maximum Loadable Profile Length | 4200 mm |
Electrical Technical Values
| Power Supply | 220V / 0,4kW |
Machine
| Machine Weight | 50 kg |
| Machine Height | 1000 mm |
| Machine Width | 500 mm |
| Machine Length | 4700 mm |
