DC 300

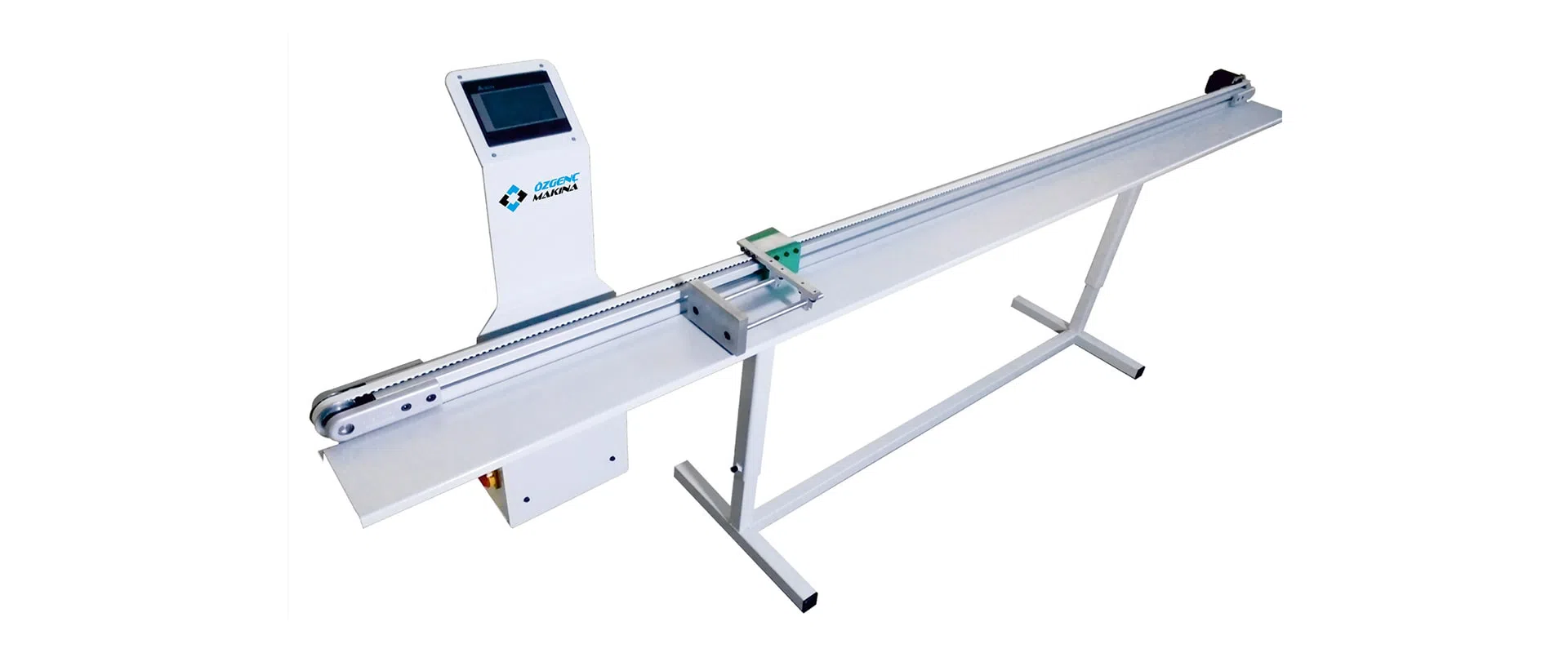

Digital Measuring Conveyor
Description
The DC 300 digital conveyor is appended to the right side of the cutting machines to provide an easier cutting process. Simply entering the length to the touchscreen the measurement block will move to the requested position.
- 0,1 mm measurement accuracy
- 3 meters long
- Touchscreen
- After each cut is done, the measuring block moves back one step so the profile can be easily taken
- Practical design for efficient use
Documents
Diagrams
DC 300
Specifications
Electrical Technical Values
| Power Supply | 220V / 0,4kW |
Machine
| Machine Weight | 70 kg |
| Machine Height | 1000 mm |
| Machine Width | 500 mm |
| Machine Length | 3100 mm |
Profile
| Maximum Loadable Profile Length | 2700 mm |
| Minimum Loadable Profile Length | 5 mm |
