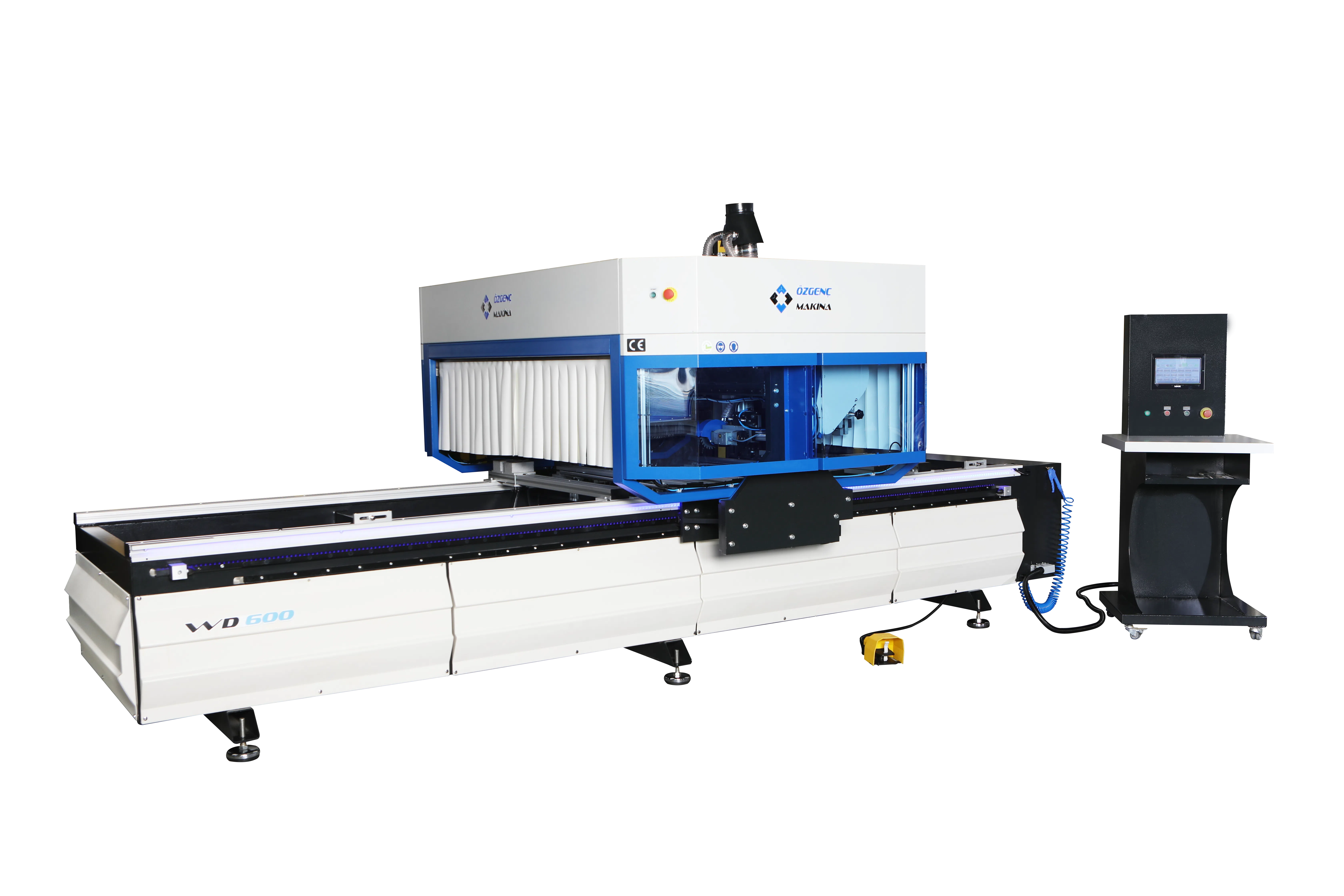

WD 600 PLUS
Automatic Door Panel Cutting Machine
Description
- The WD 600 PLUS can dimension four sides of the door with high precision in a single operation.
- Can cut four sides of the door with high precision
- Optional keyhole hinge slot router unit
- 2 minutes 40 seconds to intercept the boarded doors
- 2 minutes for cutting flush doors
- No external air compressors required with embedded Schmalz / DVP vacuum motors
- Linear guides in all axes
- Manual lubrication system
- Scoring saws for high-quality edges
- Dust outlet connection
Specifications
Cutting
| Ø300 mm (3 unit) | |
| Ø125 mm (3 unit) | |
| Saw Motor Quantity | - |
| Number of saws | - |
| Saw Motor Power | 2×5,5 kW |
| Saw Motor Power | 1×4 kW |
| Saw Motor Power | 3×0,55 kW |
Profile
| Maximum Part Length | - |
| Maximum Part Height | 2500 mm |
| 2600 mm |
Power
| Power Supply | 400 V |
| 22 kW |
Air Consumption
| Air Pressure | 6 bar |
Machine
| Machine Length | 2600 mm |
| Machine Width | 1500 mm |
| Machine Height | 1600 mm |
| Machine Weight | 1600 kg |
