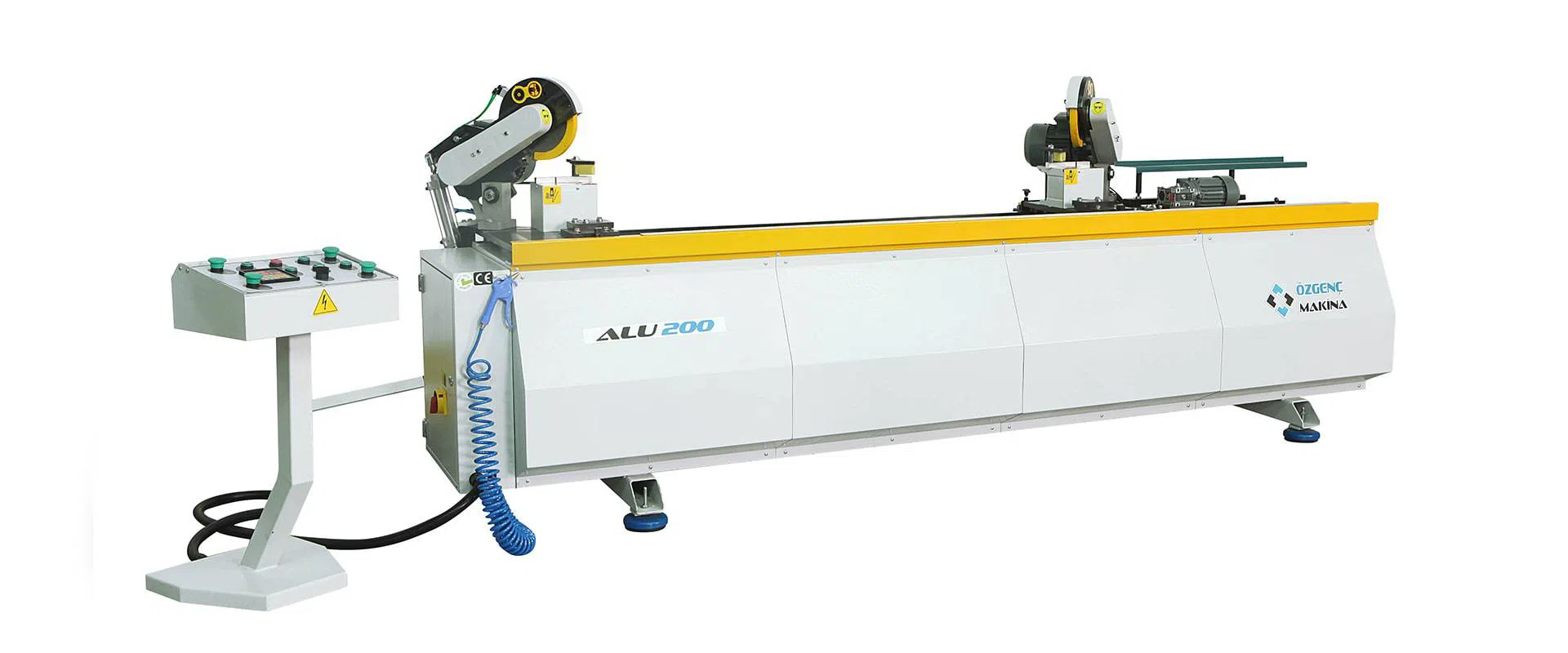

ALU 200
Double Head 45° Aluminium Cutting and Drilling of Edge Connections
Description
- ALU EXPERT 300 designed to cut serial 45 degree wooden, aluminium profile and PVC and drilling the corner connection.
- The progress takes 10-15 sec.
- The Machine has air operated system for damping the item safely.
- The cutting saw and drilling unit moves with air-operated system.
- Profile dimensions easiy and zero adjustment with precision ruler.
- Left cutting group is fixed and right one is movable on lineer.
- The cutting group moves on lineer which has lubrication system.
- The machine has self cooling system.
Documents

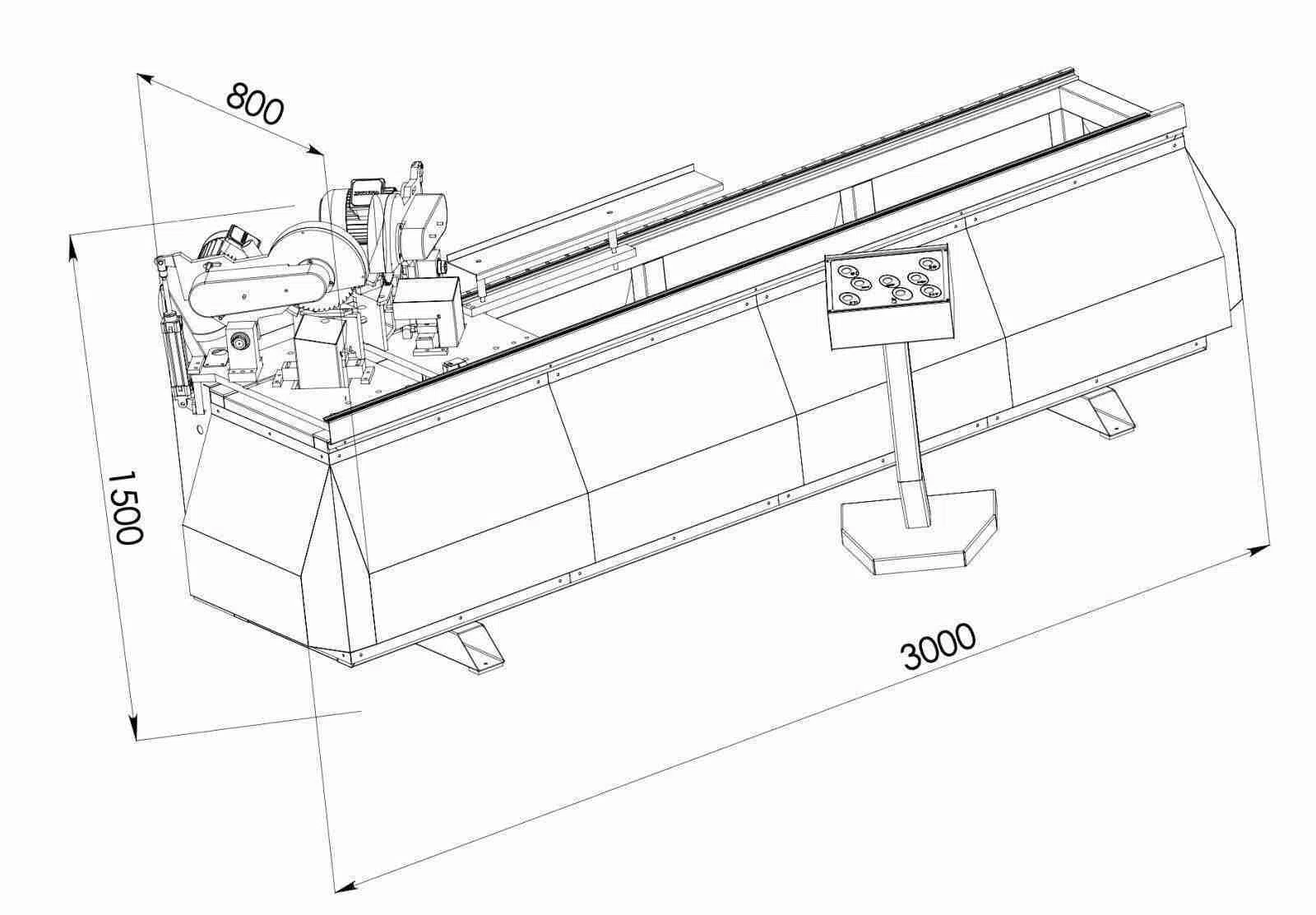

Diagrams
ALU 200
Specifications
Air Consumption
| Cutting Saw Rpm | 5000 RPM |
| Cutting Motor Power | 0,55 kW |
Cutting
| Min. Cutting Lenght | - |
| Max. Cutting Width | - |
| Max. Cutting Height | - |
| Max. Cutting Lenght | 2100 mm |
Profile
| Width | 330 Kg |
